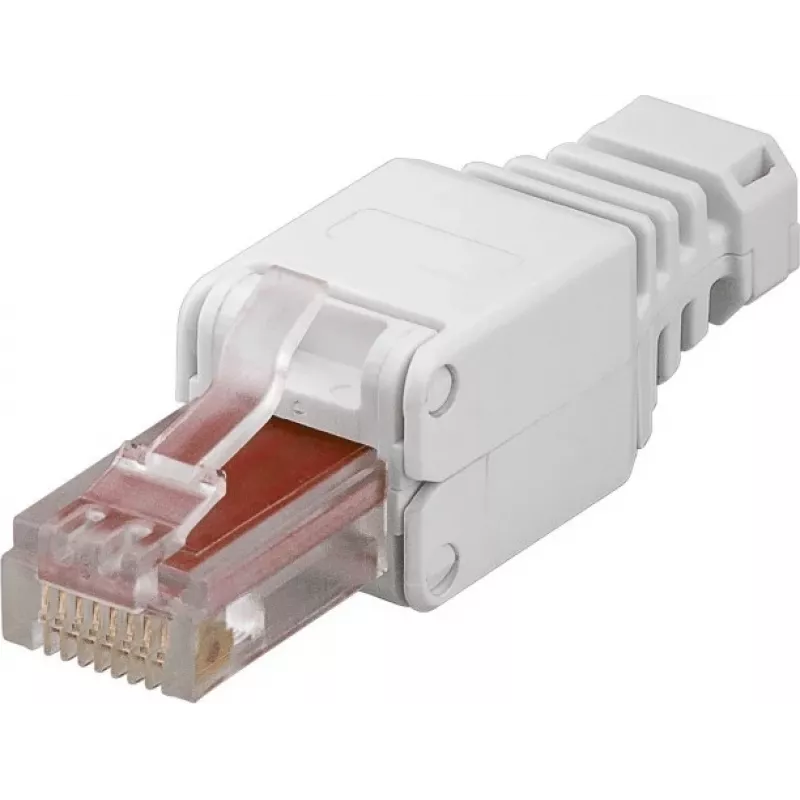

DSIT DANICOM UTP CAT6a Conector macho RJ45 sin herramientas para cables UTP flexibles y rígidos (DC-RJ45-UTP6A-TL)

The DSIT DANICOM UTP CAT6a Toolless RJ45 plug stands out by eliminating the need for crimping tools—simply insert the conductors and snap the housing shut. This design makes field terminations faster and more consistent, even for technicians working with both flexible stranded and solid core UTP cables. The connector supports 10 Gigabit Ethernet and 500 MHz bandwidth, making it suitable for high‑speed data networks where reliability is critical.

Highlights

• Tool‑free termination: no crimp tool required, reducing installation time and errors.
• Supports both solid and stranded UTP conductors, 22–26 AWG.
• CAT6a performance: up to 10GBASE‑T and 500 MHz bandwidth.
• Gold‑plated phosphor bronze contacts (50 µm) ensure low contact resistance and long‑term corrosion resistance.
• High‑impact polycarbonate housing withstands demanding environments.
• PoE/PoE+ compatible for powering network devices.
• Reusable: can be re‑terminated if wiring mistakes occur.
• Color‑coded wiring guide for T568A/B standards.

In daily use

This connector is ideal for building patch cables, repairing network drops, or extending existing cabling in offices, data centers, and industrial settings. The toolless mechanism allows quick on‑site terminations without specialized equipment, while the robust housing protects the connection from physical stress. The unshielded design is intended for UTP installations where electromagnetic interference is minimal, and the wide operating temperature range (-10°C to 60°C) covers most indoor environments.

Full specifications

• Connector type: RJ45 plug (8P8C)
• Category: CAT6a
• Cable compatibility: UTP (unshielded twisted pair), solid and stranded
• Conductor gauge: 22–26 AWG
• Wiring standard: T568A/B
• Data rate: up to 10 Gbps (10GBASE‑T)
• Bandwidth: up to 500 MHz
• Contact material: phosphor bronze, 50 µm gold plating
• Housing material: high‑impact polycarbonate
• Shielding: unshielded
• PoE support: PoE/PoE+
• Reusability: yes
• Operating temperature: -10°C to 60°C
• Certifications: RoHS compliant
• Application: data networks, patch cables, network infrastructure

Final note

For installers who value speed and reliability, the DSIT DANICOM toolless RJ45 connector delivers CAT6a performance without the hassle of crimping. Its compatibility with both solid and stranded cables makes it a versatile choice for any UTP network project.
