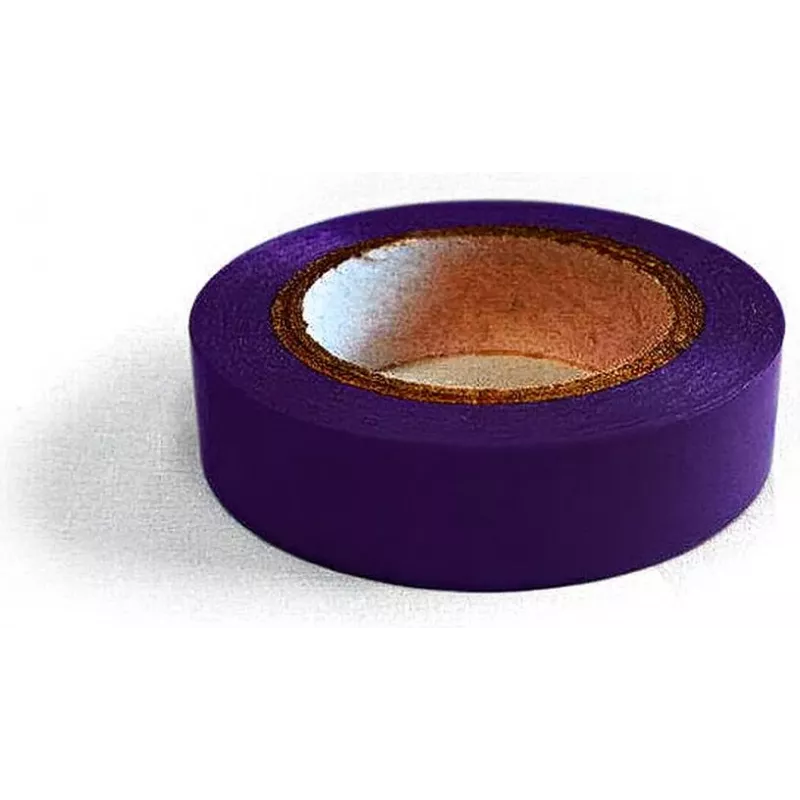

DSIT DC-Tape-Purple cinta aislante de PVC autoadhesiva, 10 m x 19 mm, violeta

Electrical insulation tape with a strong self-adhesive rubber-based backing, ideal for insulating, bundling, and color-coding electrical wires. The violet PVC film provides reliable protection and is flame retardant, moisture resistant, and suitable for temperatures from -10°C to 80°C.

Advantages

This tape offers excellent electrical insulation with a dielectric strength of 7 kV/mm and a voltage rating up to 600V. It adheres firmly to steel (1.8 N/10mm) and stretches up to 180% for a tight, conforming wrap. The violet color allows for easy identification and organization of circuits.

Suitable for

• Insulating electrical splices and wire connections
• Bundling and harnessing cables
• Color-coding wires for phase identification
• Protecting surfaces from abrasion and moisture

Key specifications

• Tape length: 10 m
• Tape width: 19 mm
• Tape thickness: 0.13 mm
• Material: PVC with rubber-based adhesive
• Dielectric strength: 7 kV/mm
• Temperature resistance: -10°C to 80°C
• Flame retardant and moisture resistant
• RoHS compliant

Recommendations

For best results, apply to clean, dry surfaces at room temperature. Stretch the tape slightly while wrapping to ensure a secure, void-free insulation layer. Store in a cool, dry place away from direct sunlight.
