DSIT DS-9PDU unidad de distribución de energía para rack 19" - 9 tomas Schuko, 16A, 1U, Negro

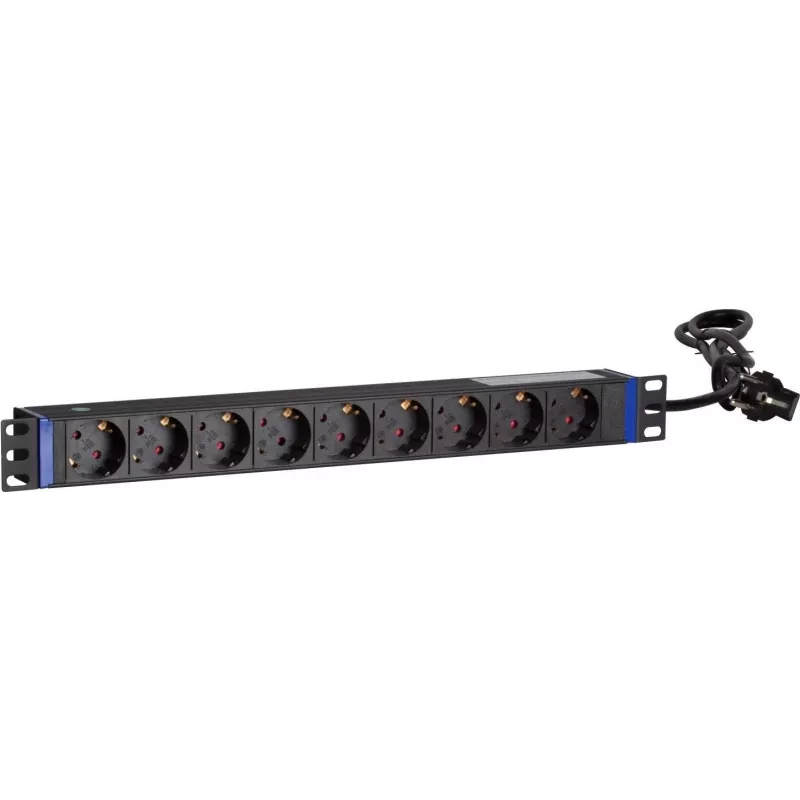

For rack power distribution that prioritises simplicity and reliability, the DSIT DS-9PDU stands apart from smart PDUs with unnecessary networking overhead. This 1U horizontal strip delivers nine Schuko outlets in a rugged aluminium housing, making it an ideal choice for server rooms, network cabinets, and industrial enclosures where straightforward power access is essential. With a 2-metre input cable and an illuminated switch with integrated circuit breaker, it combines convenience with essential protection.

Highlights

• Nine Schuko (Type F) outlets accommodate a wide range of equipment, from servers to peripherals.
• Rated for 16A at 250V AC, supporting up to 3680W of connected load.
• Integrated illuminated ON/OFF switch with overload protection circuit breaker for safe operation.
• Aluminium housing in black ensures durability and efficient heat dissipation.
• 19-inch rackmount form factor, 1U height, mounts horizontally using standard rack screws.
• CE and RoHS certified, meeting European safety and environmental standards.

In daily use

Installation is straightforward: the PDU fits into any standard 19-inch rack, occupying only 1U of vertical space. The 2-metre Schuko input cable provides flexibility in positioning relative to the power source. The nine outlets are spaced to accommodate bulky power adapters without blocking adjacent sockets. The illuminated switch clearly indicates power status, and the integrated circuit breaker trips in case of overload, preventing damage to connected equipment. The aluminium housing not only looks professional but also aids in heat dissipation, ensuring reliable performance even under continuous load.

Full specifications

• Form Factor: 19-inch Rackmount, 1U
• Outlet Type: Schuko (Type F)
• Number of Outlets: 9
• Input Plug: Schuko (Type F)
• Cable Length: 2 m
• Rated Voltage: 250V AC
• Max Current: 16A
• Max Power: 3680W
• Frequency: 50/60 Hz
• Switch: Illuminated ON/OFF
• Overload Protection: Integrated Circuit Breaker
• Housing Material: Aluminium
• Colour: Black
• Certifications: CE, RoHS

Final note

The DSIT DS-9PDU is a dependable, no-frills power distribution solution that delivers exactly what rack-mounted equipment needs: ample outlets, robust construction, and essential safety features, all in a compact 1U footprint.
