DSIT DS5606WP Armario rack de pared exterior 6U 19 pulgadas IP55, vertical, gris claro

With an IP55 protection rating and a 100 kg static load capacity, the DSIT DS5606WP is built to keep your critical IT equipment safe in demanding outdoor environments. This 6U 19-inch vertical wall-mount cabinet combines rugged galvanized steel construction with a secure 3-point locking system, making it a reliable choice for industrial, remote, or exposed installations.

Overview

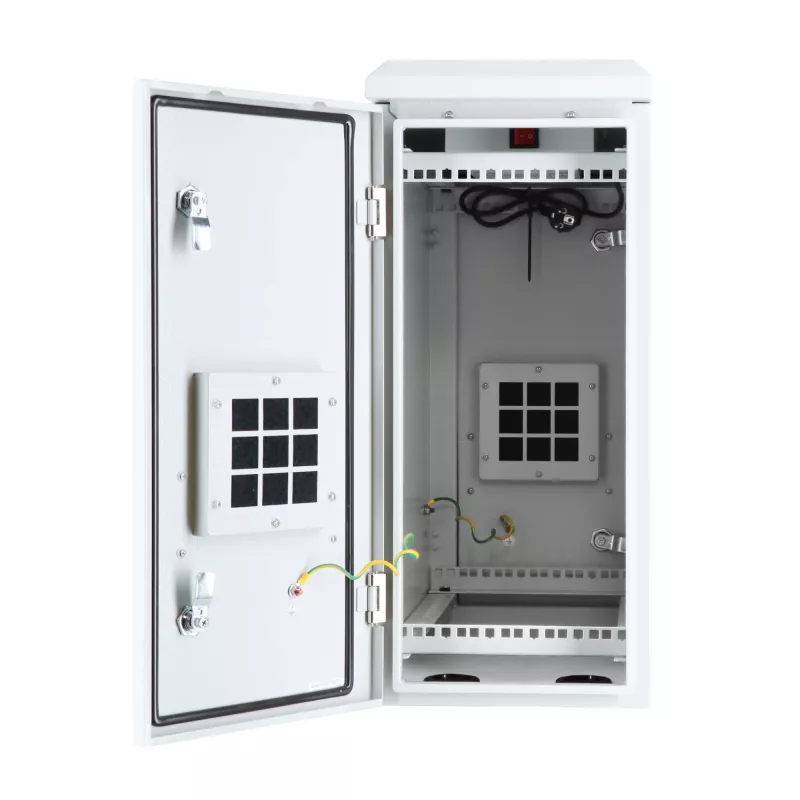

The DS5606WP is engineered for outdoor use where space is limited and protection is paramount. Its vertical orientation allows mounting on walls, saving valuable floor space while providing full 19-inch rack compatibility. The cabinet features a single front door with a PU gasket to ensure a tight seal against dust and water ingress, meeting the IP55 standard. Passive ventilation helps maintain airflow without compromising the enclosure's integrity.

What stands out

• IP55-rated protection against dust and low-pressure water jets from any direction.
• Robust 100 kg maximum static load capacity for heavy equipment.
• Secure 3-point locking mechanism on the front door prevents unauthorized access.
• Galvanized steel construction with a light grey RAL 7035 finish for durability and corrosion resistance.
• Sealed gland plates for cable entry maintain the IP rating while allowing flexible connectivity.
• Integrated grounding points for safe electrical installation.

Technical details

• Rack capacity: 6U
• Rack standard: 19-inch
• Mounting orientation: Vertical
• Mounting type: Wall mount
• Material: Galvanized steel
• Door type: Single front door
• Locking mechanism: 3-point security lock
• Cable entry: Sealed gland plates
• Cooling: Passive ventilation
• Color: RAL 7035 (light grey)
• Application environment: Outdoor
• Maximum static load: 100 kg
• Usable internal depth: 550 mm
• Door opening angle: 120 degrees
• Gasket: PU gasket on door
• Included accessories: Mounting hardware, 19-inch profiles
• Construction: Welded frame

Our verdict

The DSIT DS5606WP is a solid investment for any outdoor IT deployment. Its IP55 rating, high load capacity, and secure locking make it a dependable enclosure for network switches, patch panels, and other rack-mount equipment exposed to the elements. The vertical wall-mount design is particularly useful in tight spaces, and the included mounting hardware simplifies installation.
