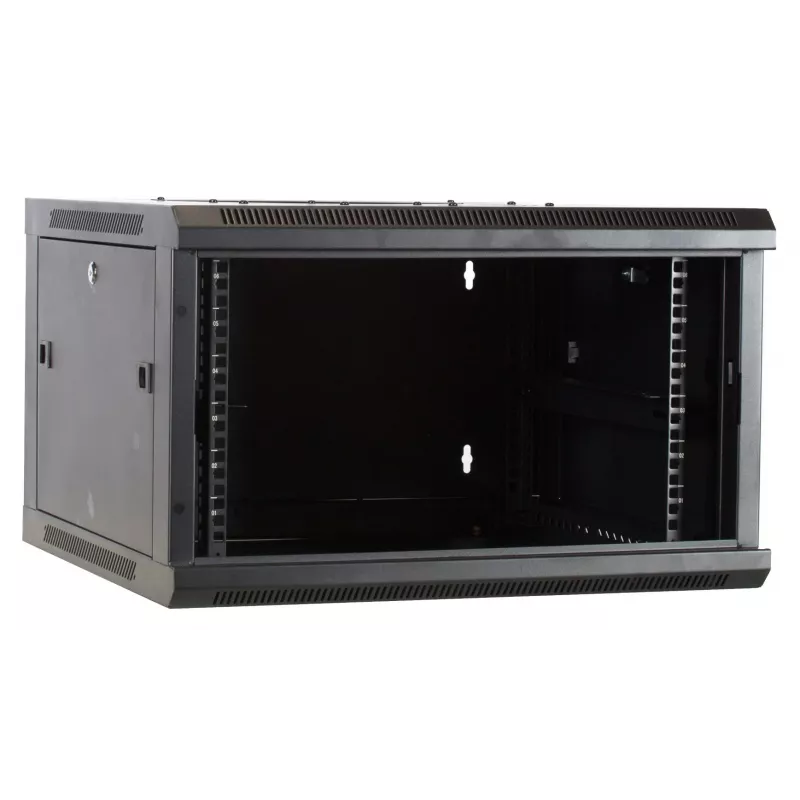

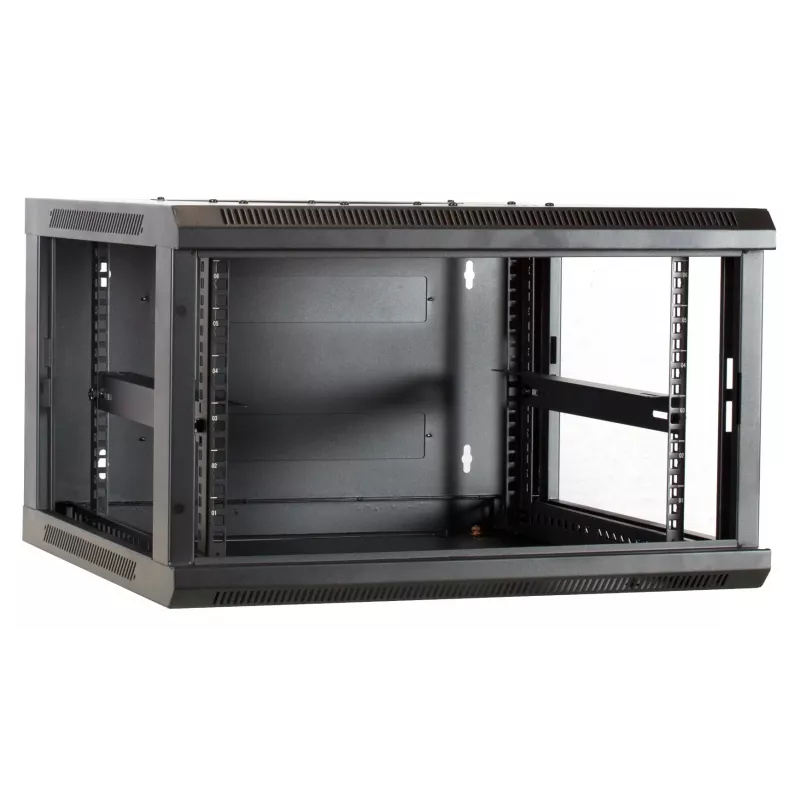

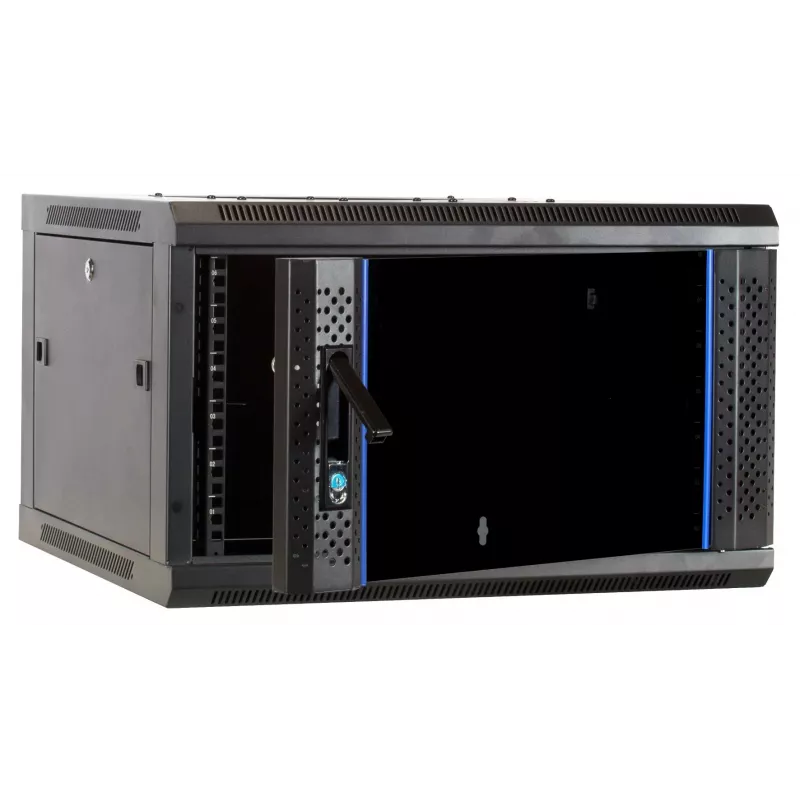

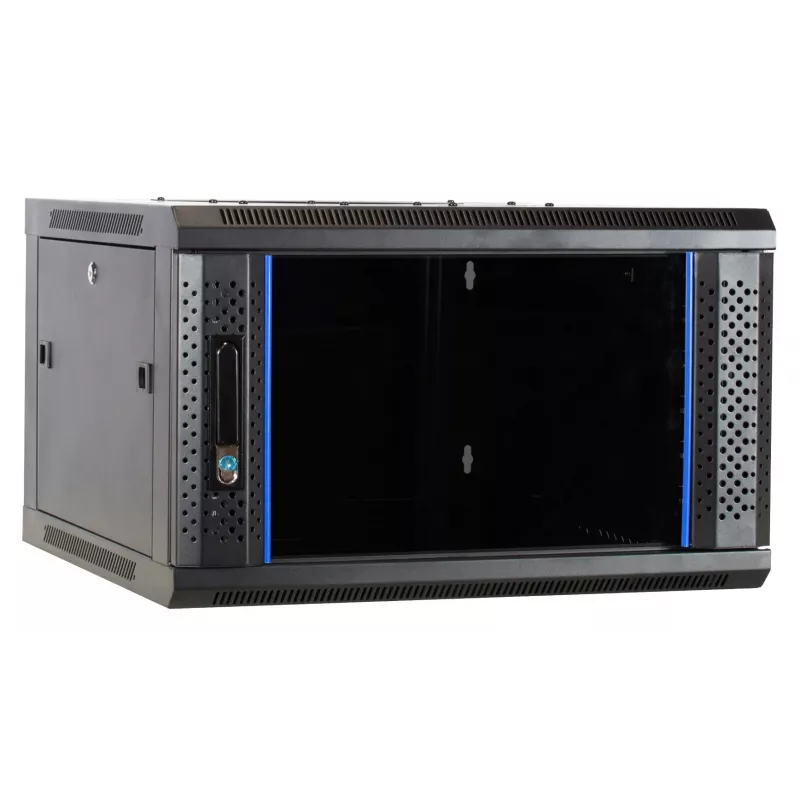

DSIT DS6604-F carcasa de servidor de pared 6U con puerta de cristal, 600x450x320 mm, negro

Network administrators outfitting compact IT closets or branch offices often need a secure, space-saving enclosure for patch panels and shallow networking gear. The DSIT DS6604-F wall-mount cabinet answers that call with a 6U, 19-inch rack space behind a tempered glass door, all in a 600 x 450 x 320 mm footprint that keeps equipment protected without consuming floor space.

Key specifications

• 6U (6 height units) of 19-inch rack space, wall-mounted design
• External dimensions: 600 mm width, 450 mm depth, 320 mm height
• Tempered glass front door with key lock for security and visibility
• Removable, lockable side panels for easy access during installation and maintenance
• Constructed from SPCC cold rolled steel with black RAL 9005 powder coating
• Static load capacity: 60 kg
• Cable entry top and bottom with brush strips to manage cabling neatly
• Passive ventilation with provisions for optional fan unit
• Protection class IP20, suitable for indoor use
• Supplied unassembled (flat-pack) with mounting hardware and 2 keys

Why choose it

This cabinet balances security, accessibility, and durability. The glass door lets you monitor indicator lights without opening the rack, while the lockable panels deter unauthorized access. Its steel construction and 60 kg capacity handle switches, patch panels, and small servers with confidence. The flat-pack design simplifies transport and storage before installation.

Ideal use cases

• Small office network closets where floor space is limited
• Branch locations needing a locked enclosure for network equipment
• Retail back offices or classrooms requiring a tidy, secure rack

Good to know

The cabinet arrives unassembled with all necessary hardware and two keys. Optional fan units can be added later to enhance airflow. Its IP20 rating means it is intended for indoor, dry environments.
