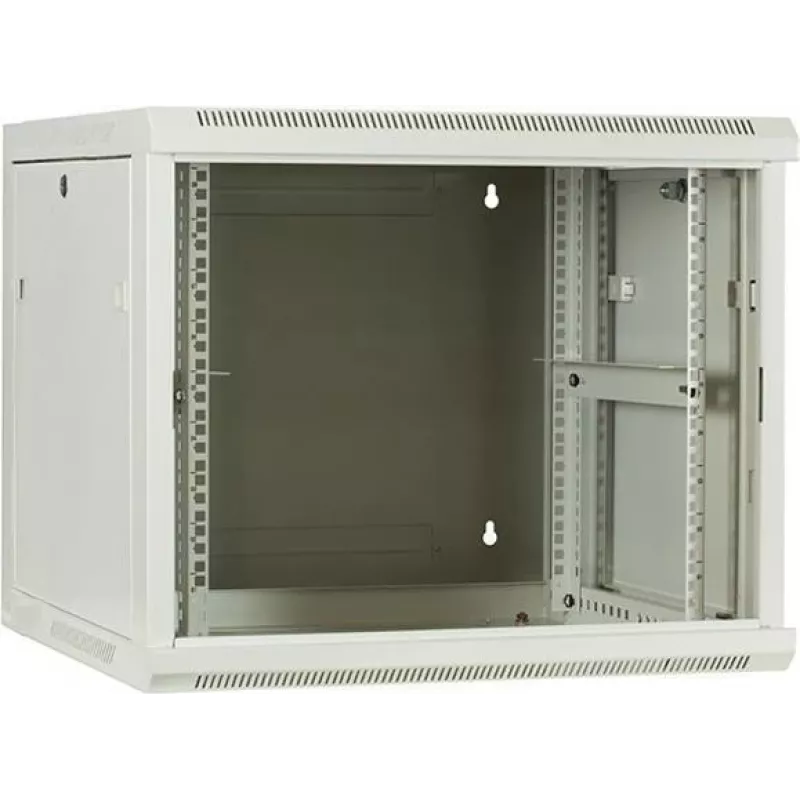

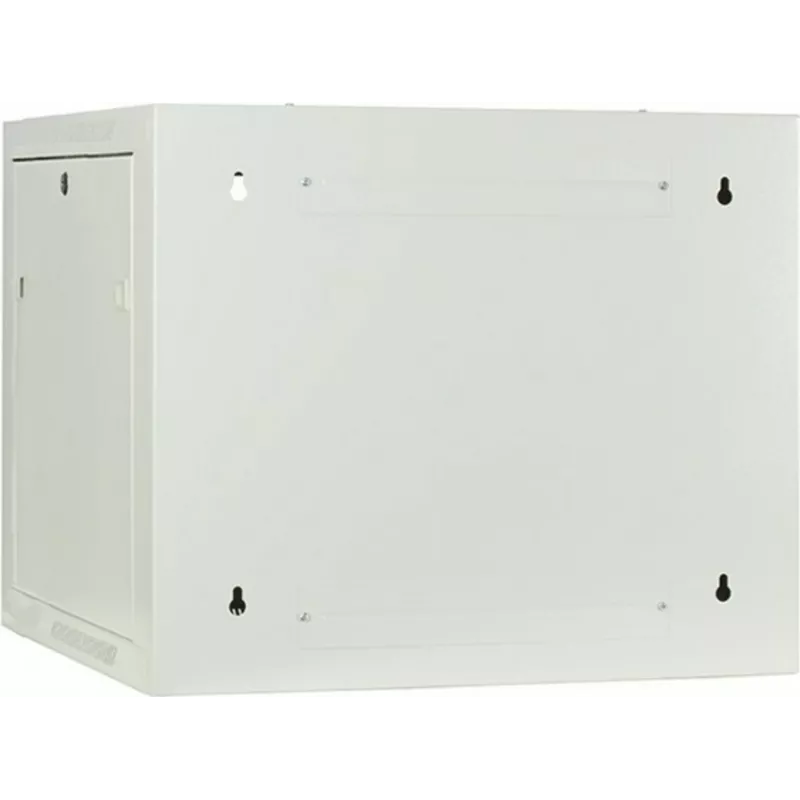

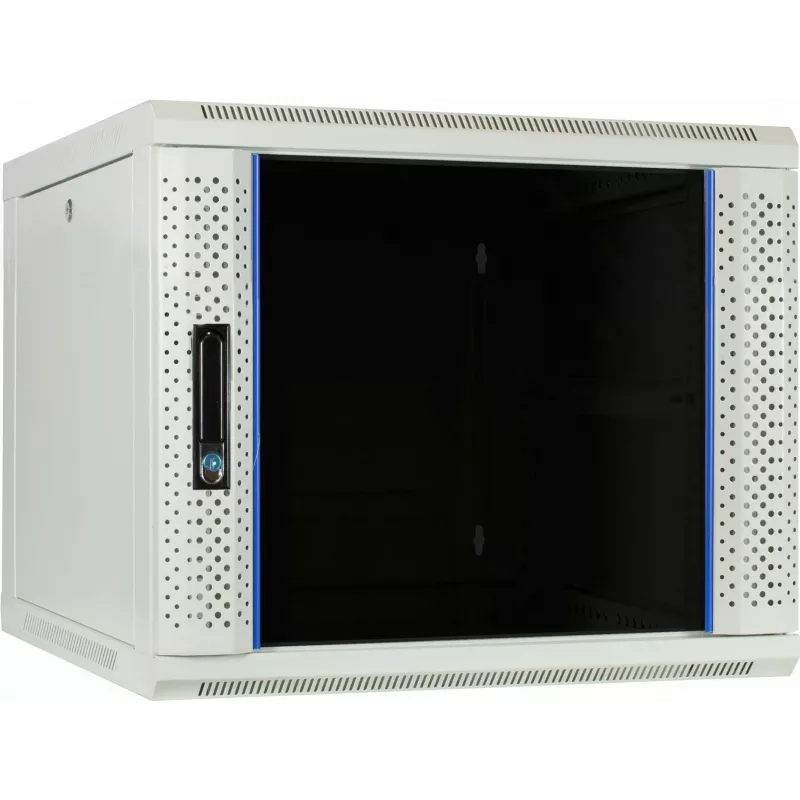

DSIT DS6609W armario de servidor de pared 9U con puerta de cristal, 600x600x500 mm, Negro

In compact network closets and branch offices, IT technicians often need secure, space-saving equipment housing. The DSIT DS6609W answers that call: a 9U wall-mount enclosure that keeps switches, patch panels, and small servers organized and protected. Its tempered glass front door allows quick visual checks of indicator lights without unlocking, while the lockable design prevents unauthorized access. With a 600x600x500 mm footprint, it fits neatly above desks or in narrow corridors, making it a practical choice for SMBs and remote sites.

Key specifications

• Rack capacity: 9U, 19-inch standard
• External dimensions (WxDxH): 600 x 600 x 500 mm
• Front door: tempered glass, lockable, removable
• Side panels: removable and lockable
• Material: SPCC cold-rolled steel, powder-coated black (RAL 9005)
• Ventilation: passive, with top and bottom cable entry
• Mounting rails: adjustable depth, 19-inch profiles
• Compliance: EIA-310-D, IEC 60297-2, IP20

Why choose it

This cabinet combines security and visibility. The glass door lets you monitor equipment status at a glance, while the keyed lock keeps hardware safe. Removable side panels simplify installation and maintenance, and the adjustable rails accommodate various equipment depths. Its welded steel frame ensures durability, and the black powder-coated finish resists scratches and corrosion, blending seamlessly into professional environments.

Ideal use cases

• Small office network closets housing switches and routers
• Retail back rooms with limited floor space
• Educational facilities securing AV or network gear
• Industrial settings needing dust-protected enclosures (IP20)

Good to know

Installation requires wall mounting; hardware is not included. The cabinet supports passive airflow, so ensure adequate ambient ventilation. For cable management, top and bottom knockouts allow clean routing. The unit weighs approximately 20 kg and has a maximum load capacity of 50 kg, suitable for typical networking equipment.
