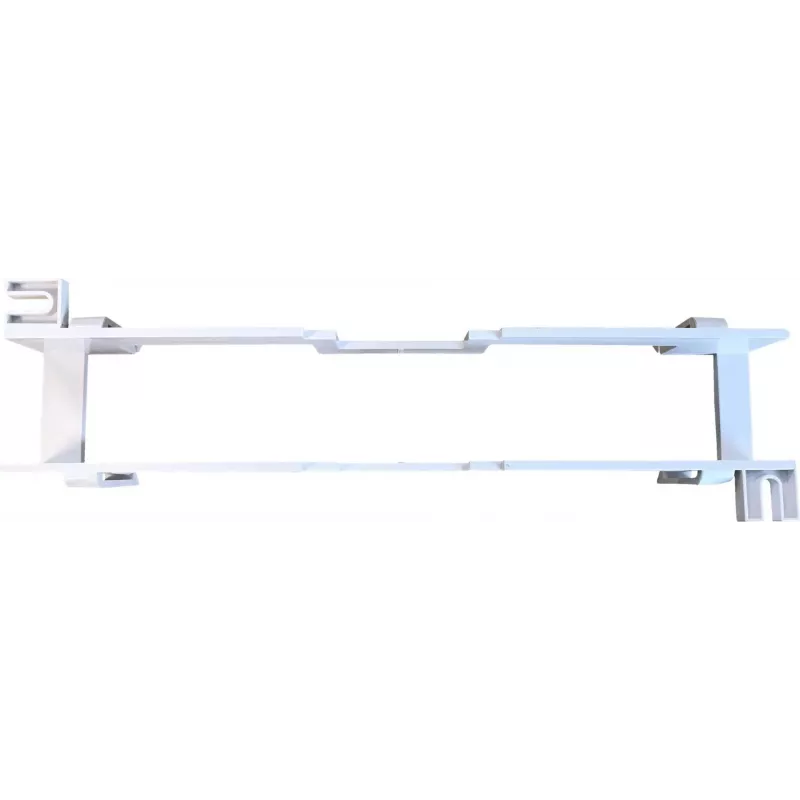

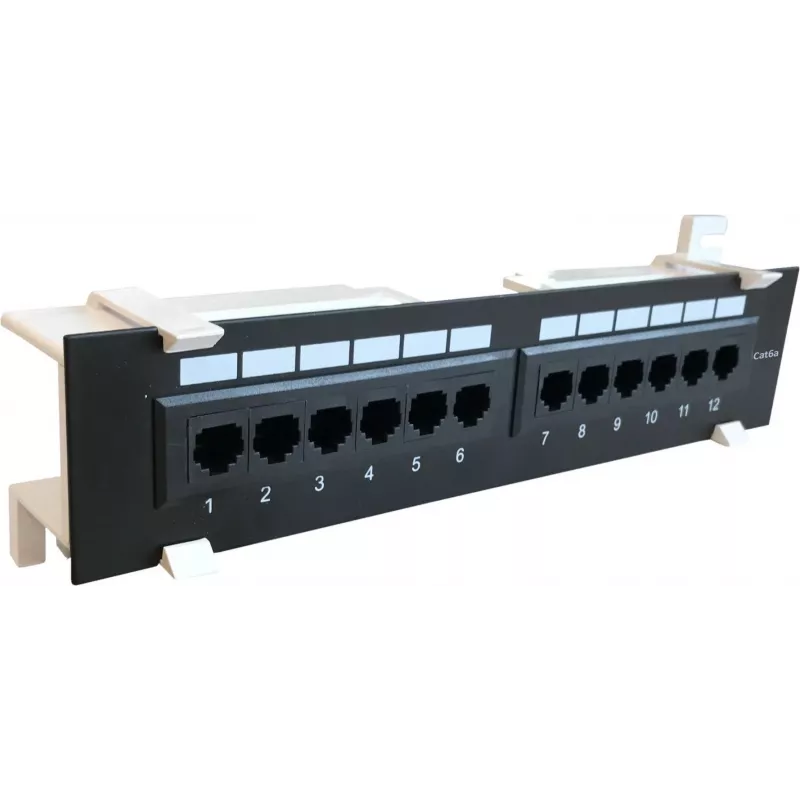

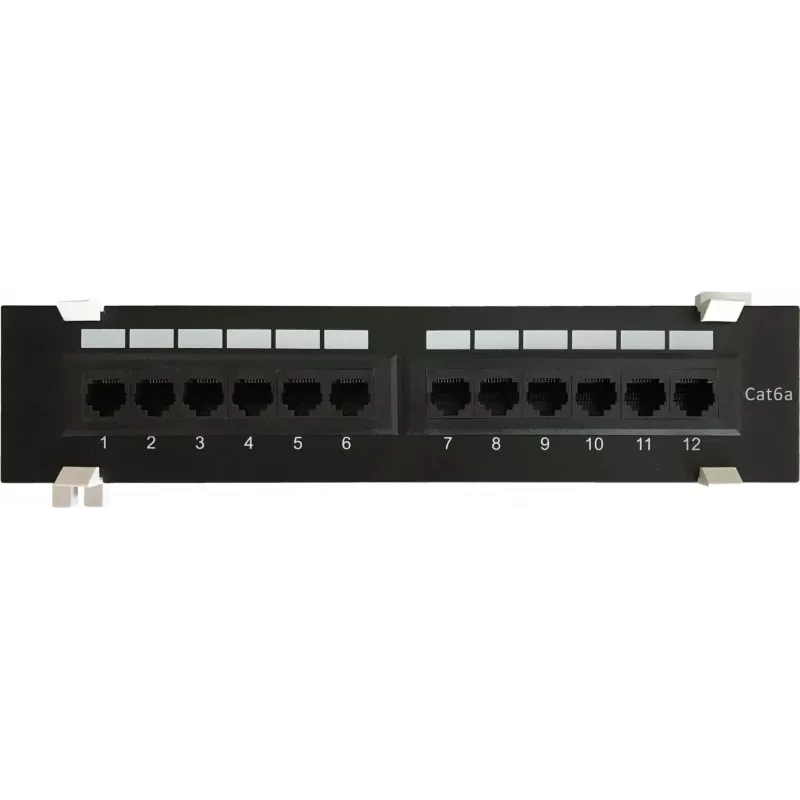

DSIT Panel de parcheo de montaje en pared CAT 6a, 12 puertos UTP, negro

High-performance 12-port Cat 6a wall-mount patch panel in unshielded (UTP) design, engineered for 10 Gigabit Ethernet networks. Its compact steel housing and tool-free IDC terminations make it ideal for structured cabling in offices, retail, and industrial environments where space is limited and reliability is paramount.

Advantages

The DSIT DS-Patch6a-12UTP-WM delivers exceptional signal integrity up to 500 MHz, supporting 10GBASE-T with minimal crosstalk. The dual IDC (110/Krone) blocks accept 22-26 AWG solid or stranded conductors, ensuring fast, secure, and repeatable terminations. The robust steel enclosure protects connections from dust and accidental contact, while the wall-mount design frees up rack space. PoE, PoE+, and UPoE pass-through support allows powering devices such as IP cameras, wireless access points, and VoIP phones directly through the panel.

Suitable for

• Small to medium business networks requiring wall-mounted distribution points
• Retail and hospitality installations with limited rack space
• Industrial settings needing durable, easy-to-service connectivity
• High-speed PoE applications (IP cameras, access points, digital signage)

Key specifications

• Category: Cat 6a (Class EA)
• Ports: 12 x RJ45 female, unshielded

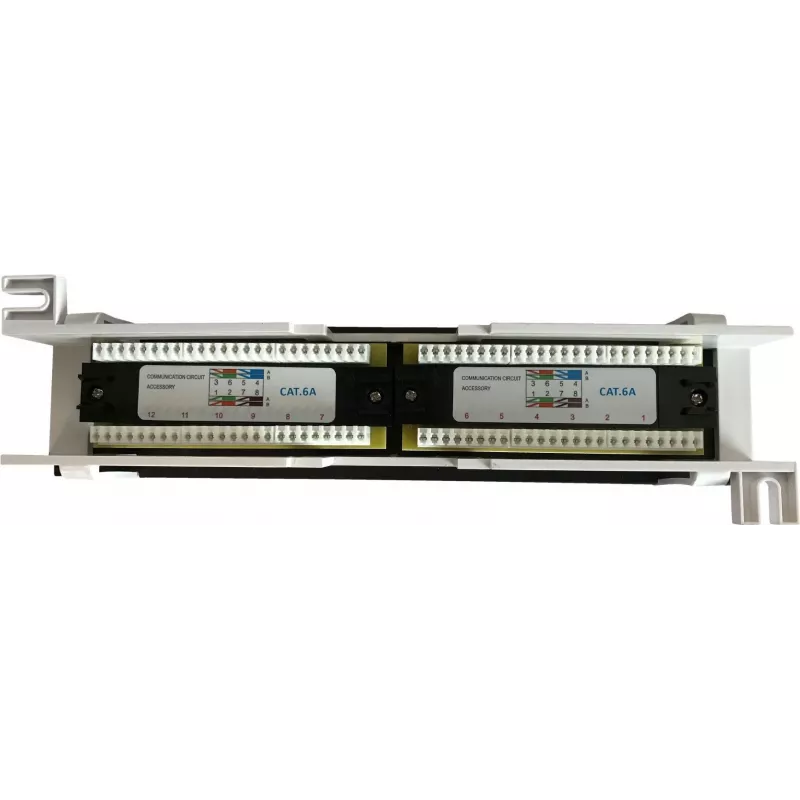

• Termination: 110/Krone dual IDC, 22-26 AWG
• Bandwidth: 500 MHz, supports 10GBASE-T
• Material: Steel housing, black finish
• Standards: TIA/EIA 568A/B, RoHS, CE
• Operating temperature: -10°C to 60°C
• Humidity: 10% to 90% RH (non-condensing)

Recommendations

For optimal performance, use Cat 6a UTP cabling and maintain proper bend radius. Mount the panel in a dry, ventilated area and label ports clearly. This panel is an excellent choice for integrators seeking a reliable, cost-effective wall-mount solution for high-speed networks.
