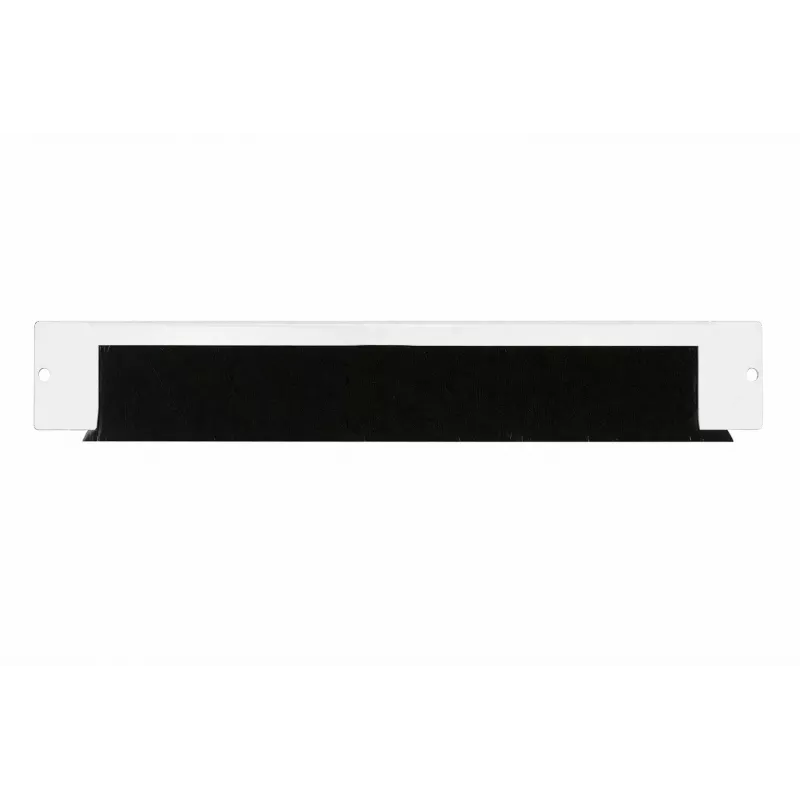

DSIT Panel pasacables con cepillo de nailon 19 pulgadas 1U para armarios de pared - Blanco

Unmanaged cable entry points in wall-mounted racks and network cabinets often lead to dust accumulation, unsightly cable clutter, and reduced airflow. The DSIT DS-BRUSH-WAND-W cable entry brush panel solves this by providing a clean, organized pass-through for cables while sealing the gap against dust and debris. This 1U 19-inch panel features a continuous nylon brush strip that allows cables to enter or exit the cabinet at any point along its width, maintaining a tidy appearance and protecting equipment from contamination.

Who is it for

This panel is ideal for IT professionals, data center technicians, and network installers who manage wall-mounted server racks, network cabinets, or telecommunication enclosures. It is suitable for environments where dust control and cable management are critical, such as data centers, IT closets, and telecommunication rooms.

Main features

• Continuous nylon brush strip allows flexible cable pass-through across the full 400 mm width
• 1U height fits standard 19-inch rack mounting, compatible with server racks and wall cabinets
• White powder-coated steel panel blends with light-colored cabinet interiors
• Reduces dust ingress while maintaining necessary airflow
• Simple installation using standard M5 or M6 rack screws (not included)
• RoHS compliant for environmental safety

Specifications

• Product type: Cable entry brush panel
• Rack unit size: 1U
• Rack standard: 19-inch
• Mounting type: Rack mount
• Color: White
• Panel material: Steel
• Brush material: Nylon
• Cable entry method: Brush strip
• Dust protection: Yes
• Cable pass-through opening (approx.): 400 x 20 mm
• Number of cable openings: 1 (continuous brush strip)
• Finish: Powder coated
• Operating temperature range: -5°C to 60°C
• Compliance: RoHS
• Application: Data centers, IT closets, telecommunication rooms

Tips

For optimal dust protection, ensure the brush strip is not overfilled with cables; leave some brush bristles free to maintain a seal. When installing in a wall cabinet, position the panel at the top or bottom for convenient cable routing. Use cable ties or Velcro straps to bundle cables before passing them through the brush to keep the installation neat and manageable.
