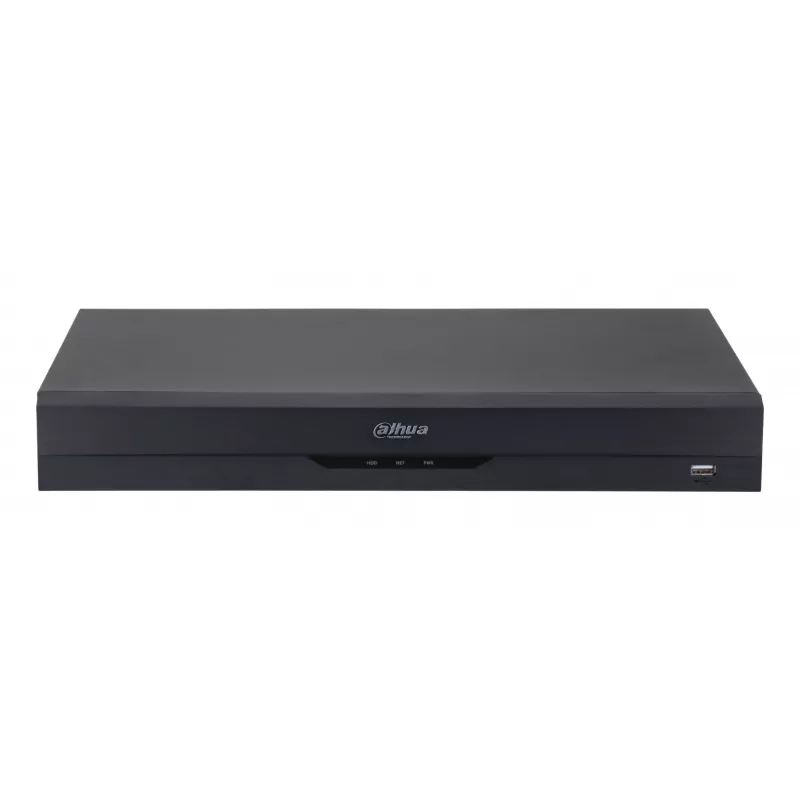

DVR Dahua Technology XVR5216AN-4KL-I3/T – 16 canales 4K (3840x2160), H.264/H.265, 1xRJ45, 1xUSB3.2, 1xUSB2.0, HDD máx. 16 TB, Negro

Dahua Technology XVR5216AN-4KL-I3/T is a 16-channel digital video recorder that accepts up to 4K (3840×2160) video input and supports H.264/H.264+/H.265/H.265+ compression. Designed for multi-camera surveillance systems, it combines analog and IP compatibility, a Gigabit Ethernet interface, USB 3.2 and USB 2.0 ports for local backup, and internal storage support for hard drives up to 16 TB. The recorder supports common network protocols for remote monitoring and management and is supplied in a black housing weighing approximately 1.75 kg.

Advantages

The XVR5216AN-4KL-I3/T integrates broad codec support and mixed-format input, enabling use with HDCVI, AHD, TVI, CVBS and IP cameras. With a Gigabit Ethernet port and support for standard network protocols, it facilitates remote access and integration into existing networks. USB 3.2 Type-A plus USB 2.0 ports allow faster local data export and peripheral connection. The unit’s compatibility with up to 4K input per channel and efficient H.265 compression helps reduce storage and bandwidth requirements while preserving image detail. Its compact, black design and 16 TB maximum HDD capacity make it suitable for both commercial and residential installations.

Suitable for

• Multi-camera surveillance in small to medium commercial premises
• Residential security systems requiring high-resolution recording
• Upgrading mixed analog/IP camera installations
• Remote monitoring setups using standard network protocols

Key specifications

• Channels: 16-channel input (supports up to 32-channel IP input with per-channel up to 8 MP as supported)
• Maximum resolution: 3840 × 2160 (4K) input support
• Video compression: H.264, H.264+, H.265, H.265+
• AI features: multi-channel AI functions for human/vehicle detection and face recognition on supported channels
• Supported video formats: HDCVI, AHD, TVI, CVBS and IP
• Recording bandwidth: incoming bandwidth up to 128 Mbps for IP channels
• Network: 1 × RJ45 Gigabit Ethernet (supports common protocols such as HTTP, RTSP, TCP/IP, IPv6, DHCP, FTP, DDNS, SNMP)
• USB: 1 × USB 3.2 Type-A, 1 × USB 2.0
• Storage: supports internal HDD up to 16 TB
• Power supply type: DC
• Colour: Black
• Weight: approximately 1.75 kg

How to use

Install the recorder in a stable, ventilated location and connect cameras according to their interface types: coaxial for analog formats or network cabling for IP cameras. Connect the Gigabit Ethernet port to your network switch or router for remote access and configure network settings (DHCP or static IP) through the device web interface or client software. Install a compatible 3.5" SATA hard drive up to 16 TB for local recording, then initialize and format the disk via the recorder menus. Use the USB 3.2 or USB 2.0 port to export footage or connect a mouse for local control. Configure recording schedules, motion detection, AI event rules and user accounts according to your surveillance needs.

Recommendations

For reliable operation, use a quality, low-vibration 3.5" SATA HDD rated for surveillance workloads and ensure the recorder is placed in a dust-free, ventilated environment. Keep firmware up to date and restrict remote access with strong passwords and appropriate network firewall rules. When using mixed analog and IP cameras, verify per-channel settings and bandwidth allocation to avoid exceeding the 128 Mbps incoming limit for IP channels.
