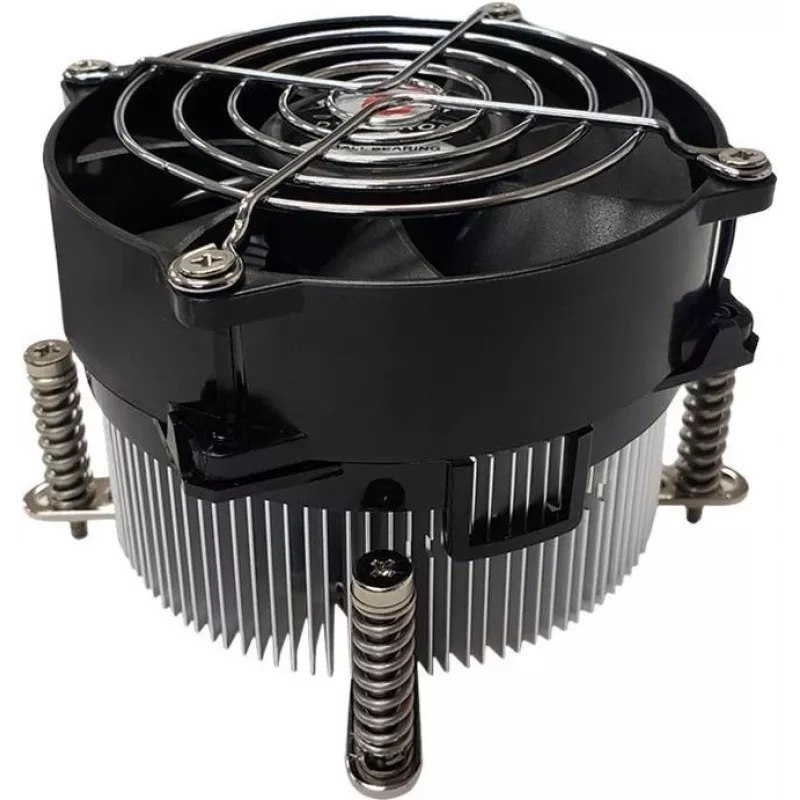

Dynatron Q12 Disipador de CPU activo 3U para Intel LGA1700, disipador de cobre, ventilador PWM de 92mm, hasta 165W TDP A 2772

Server administrators and system builders working with Intel LGA1700 processors in 3U rackmount chassis will find the Dynatron Q12 a reliable cooling solution. This active CPU cooler combines a copper heatsink with a 92mm PWM fan to handle thermal loads up to 165W TDP, making it suitable for demanding server environments where consistent performance is critical.

Key specifications

• Socket compatibility: Intel LGA1700
• Cooler type: Active air cooler
• Heatsink material: Copper (base, heat pipes, and fins)
• Heat pipes: 4 × 6 mm diameter
• Fan: 92 mm diameter, 25 mm thickness, dual ball bearing
• Fan speed: 1000–4000 RPM (PWM controlled)
• Airflow: 15.0–60.0 CFM
• Noise level: 15.0–40.0 dBA
• Power: 12V DC, 0.08–0.35 A, 4-pin PWM connector
• Life expectancy: 70,000 hours

Why choose it

The all-copper construction ensures rapid heat transfer from the CPU, while the four heat pipes efficiently move thermal energy to the fin stack. The 92mm dual ball bearing fan delivers high static pressure and long-term reliability, essential for continuous server operation. PWM support allows the motherboard to adjust fan speed based on load, balancing cooling performance and acoustics.

Ideal use cases

• 3U rackmount servers with Intel LGA1700 CPUs
• High-density computing environments requiring efficient cooling
• Workstations or servers with TDP up to 165W
• Systems where low-profile cooling is necessary

Good to know

The Dynatron Q12 is designed specifically for 3U chassis, offering a compact profile without sacrificing thermal performance. Its dual ball bearing fan ensures a long service life of 70,000 hours, reducing maintenance needs. The 4-pin PWM connector provides precise speed control, enabling quiet operation under light loads and maximum cooling under heavy workloads.
