Eaton 174198 IKA-2/24-ST caja de distribución de superficie, 24 módulos, IP65

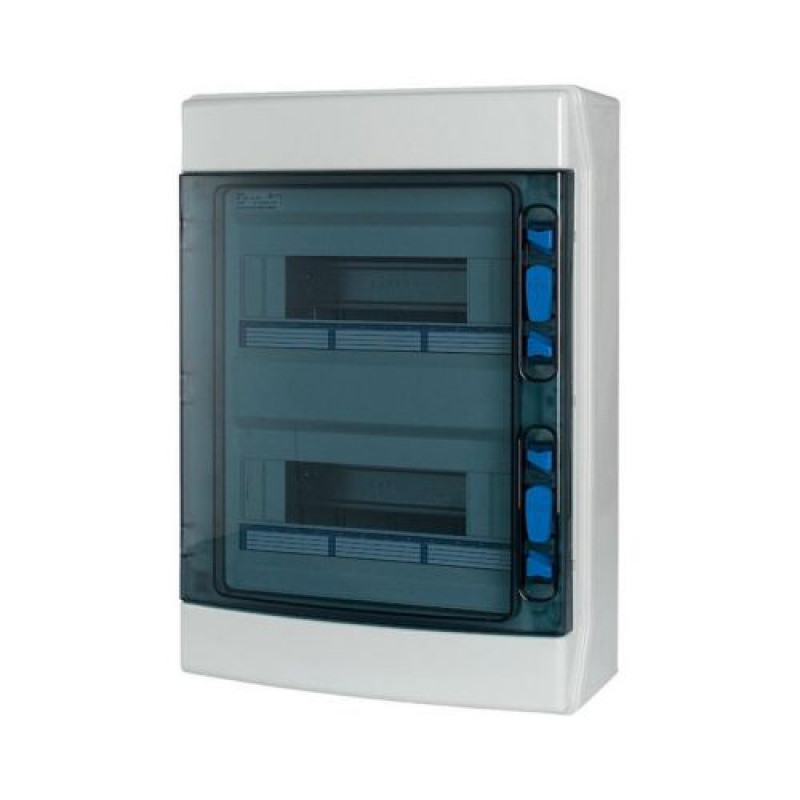

Eaton 174198, model IKA-2/24-ST, is a surface-mounted enclosure for an indoor electrical distribution board. Two rows accommodate 12 module units each, for a total of 24. The enclosure body is light-grey ABS in RAL 7035 and the hinged door is transparent. It is an enclosure for installing compatible modular devices, not a populated circuit-breaker board.

The professional ST version includes DIN device-support rails and neutral/protective-conductor screw terminals. The supplied parts also include sealing caps, circuit identification and a six-module reserve cover. The design can be sealed. IP65 ingress protection, IK08 impact resistance and electrical protection class II are specified for the enclosure; these ratings do not make this ABS variant an outdoor UV-resistant model.

The manufacturer states a rated operating voltage of 415 V AC at 50 Hz, insulation voltage of 1000 V AC and an ambient temperature range of −25 to +40 °C. The glow-wire test value is 650 °C. Product dimensions are 310 × 436 × 145 mm (width × height × depth), with a stated net mass of 2.7 kg. Referenced standards are EN 62208 and IEC/EN 60670-24.
