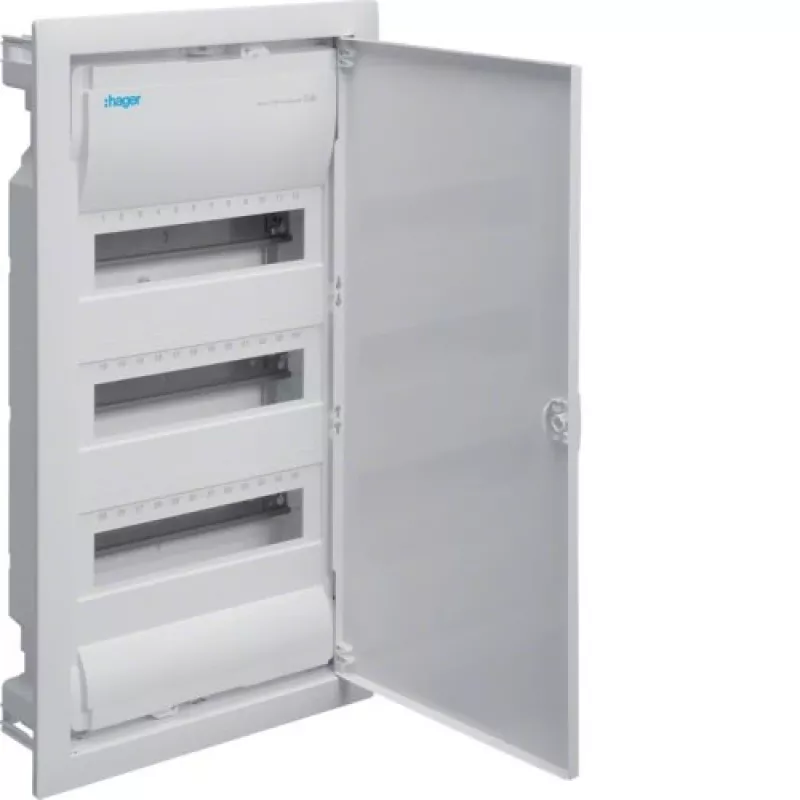

Hager VU36NE caja eléctrica IP30 ancho 348 mm profundidad 94,5 mm alto 630 mm

The Hager VU36NE electrical enclosure IP30 Width 348 mm Depth 94.5 mm Height 630 mm is a compact metal cabinet designed to house and protect electrical components in indoor environments. With IP30 protection it guards against contact with hazardous parts and solid objects larger than 2.5 mm, while offering a layout suited to mounting DIN-rail devices, terminal blocks and small control modules. The enclosure's internal space and measured footprint balance installation convenience with limited wall or panel depth.

Advantages

The enclosure provides a clear working volume with fixed external dimensions: 348 mm width, 94.5 mm depth and 630 mm height. Its IP30 rating ensures compliance with basic indoor protection requirements and reduces risk of accidental contact. The metal construction gives mechanical stability and long service life. The straightforward rectangular form and standard mounting provisions simplify integration into electrical cabinets, service rooms and control panels where a compact, reliable housing is required.

Suitable for

Key specifications

How to use

Install the Hager VU36NE on a suitable flat surface or within a larger cabinet using the provided mounting points. Before wiring, verify the enclosure location meets IP30 indoor conditions and provides adequate ventilation and clearance. Fit DIN-rail accessories and equipment inside the cabinet according to electrical standards and the devices' installation instructions. Secure incoming and outgoing conductors through appropriate knock-outs or cable entries, using grommets or insulating sleeves if required. After installation, ensure the cover or door is closed and fastened to maintain protection against accidental contact.

Recommendations

Use this enclosure in indoor, dry installations only; avoid exposure to moisture or outdoor conditions. For environments where dust or water ingress is a concern, select an enclosure with a higher IP rating. Ensure electrical work is carried out by a qualified electrician and that wiring follows local regulations and safety standards.
