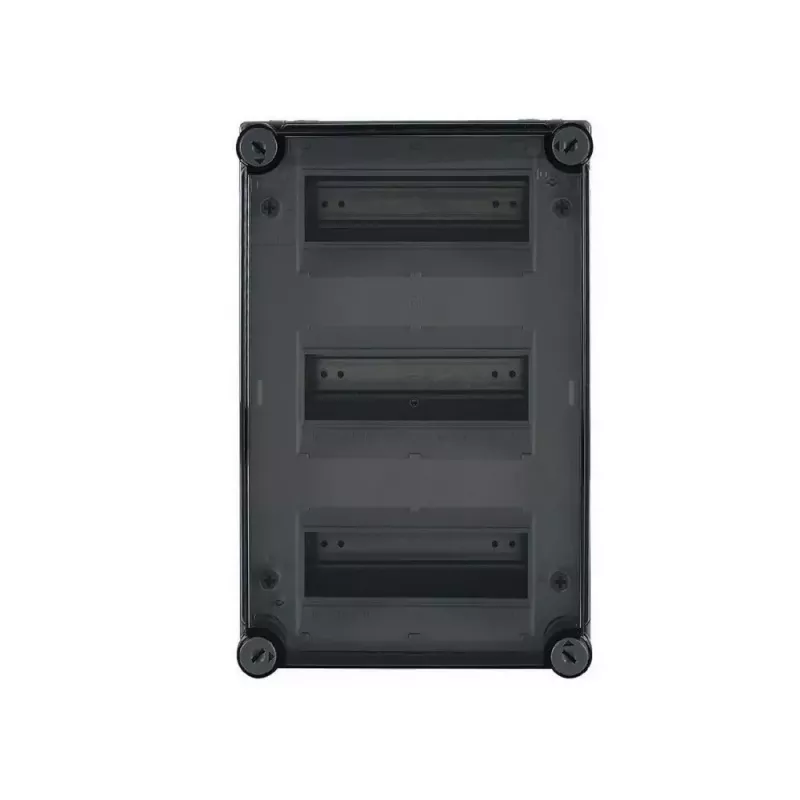

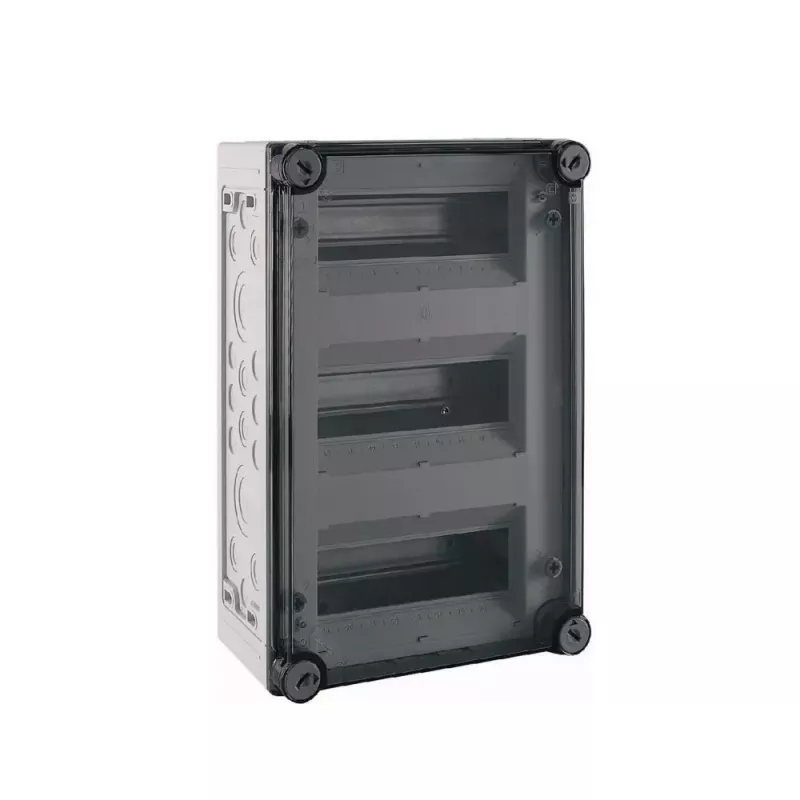

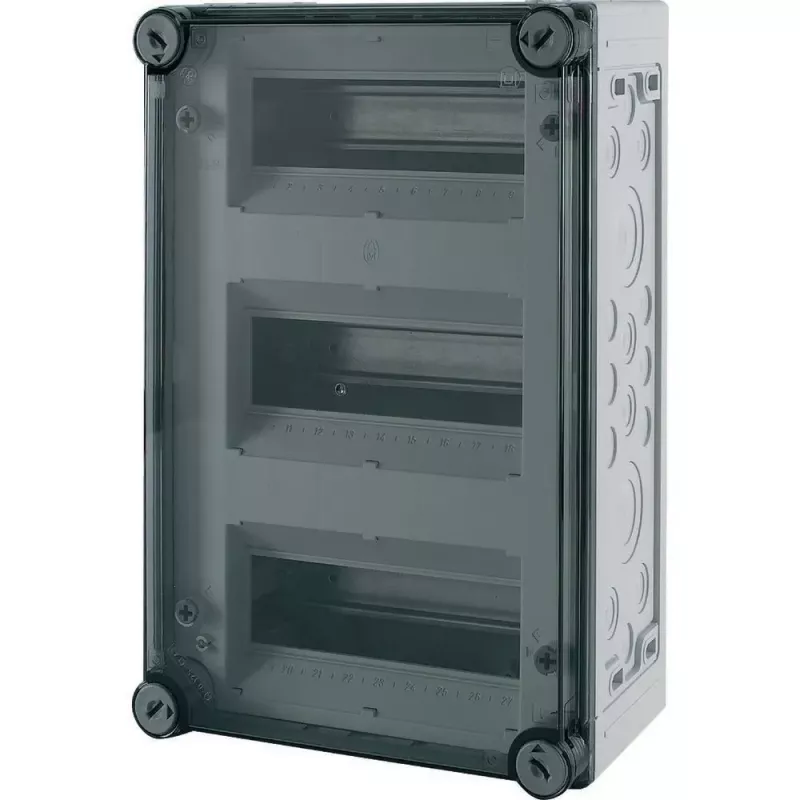

Eaton Carcasa universal 375 x 250 x 150 mm policarbonato gris AE/I43E

With an IP65 protection rating and IK08 impact resistance, this polycarbonate enclosure provides robust protection for electrical and electronic components in demanding industrial environments. Its grey RAL 7035 finish and halogen-free, UV-resistant material ensure long-term durability both indoors and outdoors.

Overview

The Eaton Universal Enclosure AE/I43E is a surface-mount or wall-mount housing engineered for versatility and reliability. Constructed from high-grade polycarbonate, it offers excellent insulation, corrosion resistance, and mechanical strength. The solid lid is secured with stainless steel screws, ensuring a tight seal against dust and water ingress. Internal mounting bosses allow easy installation of DIN rails or mounting plates, making it suitable for a wide range of applications including control systems, junction boxes, and distribution equipment.

What stands out

• IP65 protection against dust and low-pressure water jets
• IK08 impact resistance for harsh conditions
• Halogen-free and UV-stabilized polycarbonate
• Operating temperature range from -35°C to +80°C
• Integrated knockouts for flexible cable entry
• Complies with IEC 62208 and EN 60529

Technical details

• External dimensions (L x W x H): 375 x 250 x 150 mm
• Material: Polycarbonate, grey RAL 7035
• Flammability rating: UL94 V-2
• Mounting: Surface or wall mount
• Lid fastening: Stainless steel screws
• Internal options: Mounting bosses for DIN rail or plate
• Application: Industrial, commercial, indoor and outdoor

Our verdict

A dependable, all-round enclosure that balances protection, ease of installation, and long service life. Ideal for engineers and installers seeking a certified, maintenance-free housing solution.
