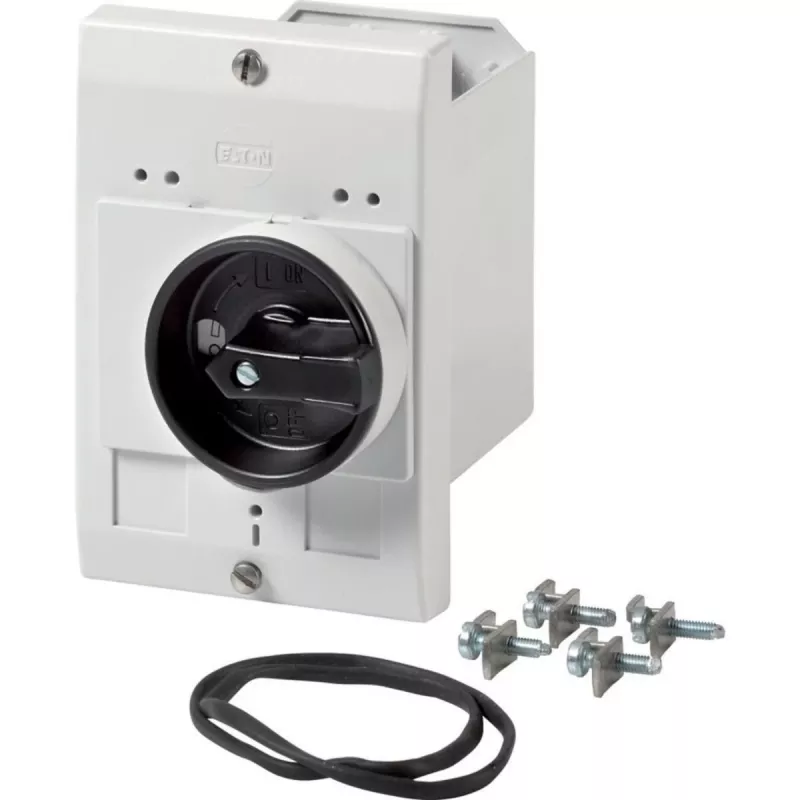

Eaton carcasa vacía con interruptor giratorio E-PKZ0-G, montaje en superficie, 129 x 85 x 80 mm, gris 072907

When a motor-protective circuit breaker needs a safe, insulated housing with integrated control, this Eaton empty enclosure provides the solution. Designed for surface mounting, it accepts one PKZ0 breaker and includes a rotary switch for ON/OFF or START/STOP operation, eliminating the need for separate control components.

Who is it for

Panel builders and maintenance technicians who install Eaton PKZ0 motor-protective circuit breakers in industrial environments. It suits applications where the breaker must be enclosed for protection against dust and moisture, and where local control via a rotary switch is required.

Main features

• Compatible with one Eaton PKZ0 motor-protective circuit breaker
• Integrated rotary switch for control functions (ON/OFF, START/STOP, or locking)
• Insulated plastic enclosure in grey (RAL 7035)
• Surface mounting design with screw-on cover
• Provisions for cable glands via knockouts
• Compact dimensions: 129 mm (L) x 85 mm (W) x 80 mm (H)

Specifications

• Product type: Empty enclosure
• Material: Insulated plastic
• Colour: Grey
• Mounting type: Surface mounting
• Number of breaker slots: 1
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Operating temperature range: -25 to +55 °C
• Standards: IEC/EN 60947, VDE 0660

Tips

Ensure the enclosure is mounted on a flat, stable surface and that cable entries are properly sealed to maintain protection. The rotary switch can be configured for different control functions depending on your application.
