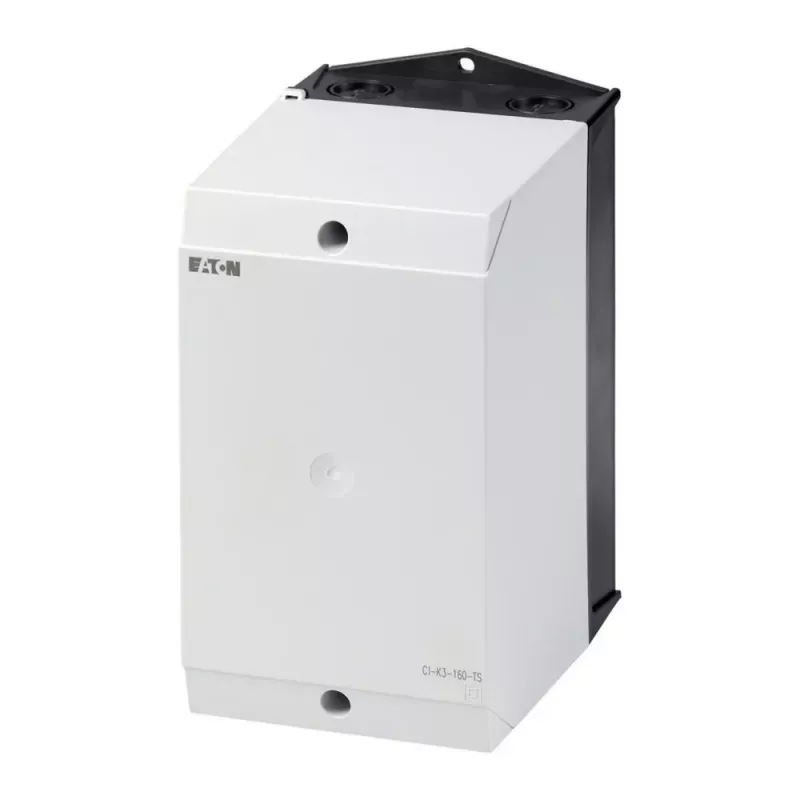

Eaton CI-K carcasa vacía para montaje en carril DIN 120 x 200 x 160 mm gris claro (RAL 7035) 206885

The Eaton CI-K empty enclosure offers a robust housing solution for DIN rail-mounted components, combining a compact footprint with a generous internal depth. Its polycarbonate construction provides durability and impact resistance, while the light grey RAL 7035 finish suits a wide range of industrial and commercial environments.

Highlights

• Polycarbonate (PC) body for high impact resistance (IK08) and UV stability
• DIN rail mounting for quick and secure installation
• External dimensions: 120 mm (W) x 200 mm (H) x 160 mm (D)
• Opaque lid for protection of internal components
• Halogen-free material for enhanced safety

In daily use

The CI-K enclosure is suitable for housing terminal blocks, relays, and other DIN rail devices. Its IP65 protection class ensures reliable operation even in dusty or damp environments, while the operating temperature range of -40°C to +80°C allows use in demanding conditions.

Full specifications

• Product Type: Empty Enclosure
• Series: CI-K
• Material: Polycarbonate (PC)
• Colour: Light Grey (RAL 7035)
• Mounting Type: DIN Rail Mounting
• Protection Class: IP65
• Impact Resistance: IK08
• External Dimensions (W x H x D): 120 mm x 200 mm x 160 mm
• Operating Temperature Range: -40°C to +80°C
• Flammability Rating: UL 94 V-2
• Lid Type: Opaque
• Number of Doors: 1
• Halogen-Free: Yes
• UV Resistance: Yes
• Suitable for Outdoor Use: Yes

Final note

The Eaton CI-K enclosure combines practical design with reliable protection, making it a solid choice for your DIN rail installation needs.
