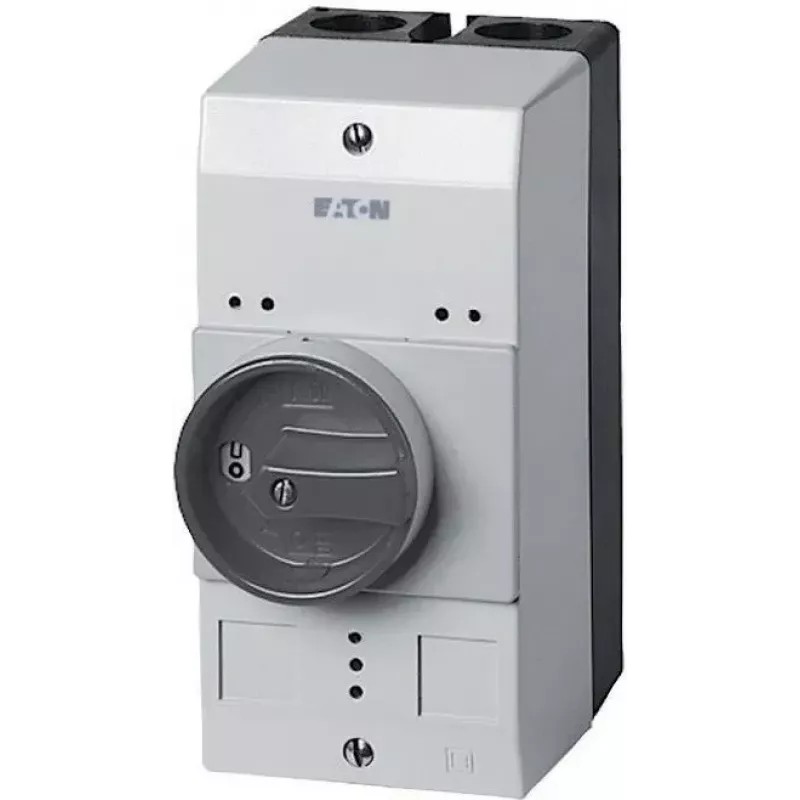

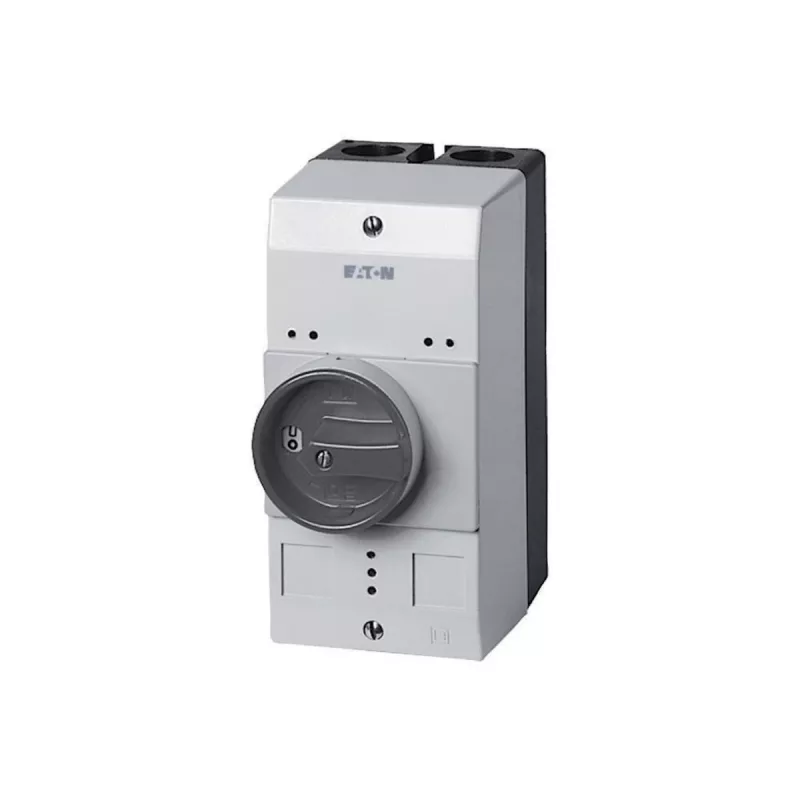

Eaton CI-PKZ0-GM carcasa vacía con interruptor giratorio, 158 x 80 x 126 mm, negro/gris 260089

When a motor-protective circuit-breaker is mounted in an exposed location, it needs a robust housing that keeps out dust and moisture while still allowing manual control. The Eaton CI-PKZ0-GM empty enclosure solves this by providing a surface-mounting shell with an integrated 3-pole rotary main switch, ready to accept PKZ0 or PKE breakers.

Who is it for

Panel builders and maintenance technicians who install motor protection in industrial environments. This enclosure suits applications where the breaker must be operated from outside a closed cabinet, such as machine control stations or distributed motor starters.

Main features

• Empty enclosure with pre-installed rotary main switch (3-pole)
• Compatible with Eaton PKZ0 and PKE motor-protective circuit-breakers
• Polycarbonate construction, black/grey finish
• Surface mounting with pre-formed metric knockouts for cable entry
• Compact dimensions: 158 x 80 x 126 mm (L x W x H)

Specifications

• Material: Polycarbonate
• Colour: Black / Grey
• Mounting type: Surface mounting
• Integrated switch: 3-pole rotary main switch
• Rated operational voltage: 690 V AC
• Rated impulse withstand voltage: 6 kV
• Ambient temperature range: -25 to +70 °C
• Protection degree: IP65
• Impact resistance: IK08
• UV resistance: Yes
• Insulation class: II
• Standards: IEC/EN 60947

Tips

Select the appropriate PKZ0 or PKE breaker for your motor's full-load current. The rotary switch allows for safe isolation before opening the enclosure. Use metric cable glands to match the pre-formed knockouts and maintain the IP65 rating.
