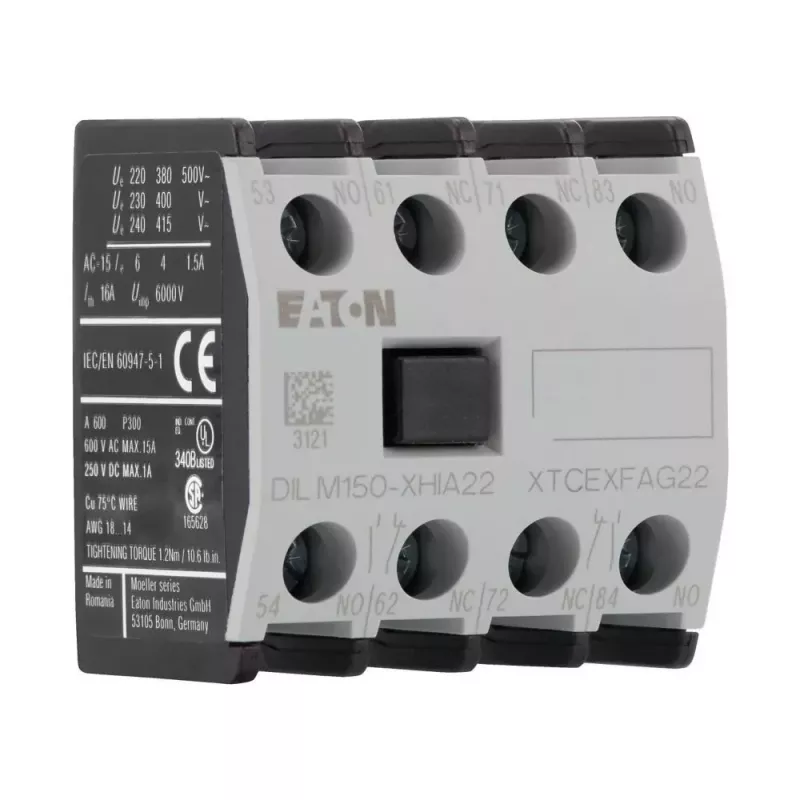

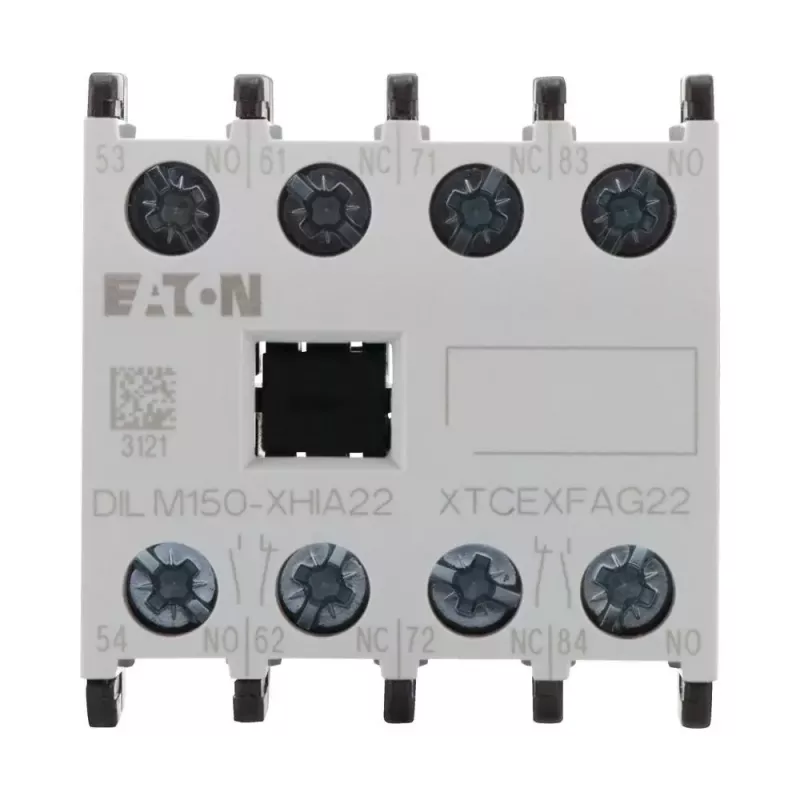

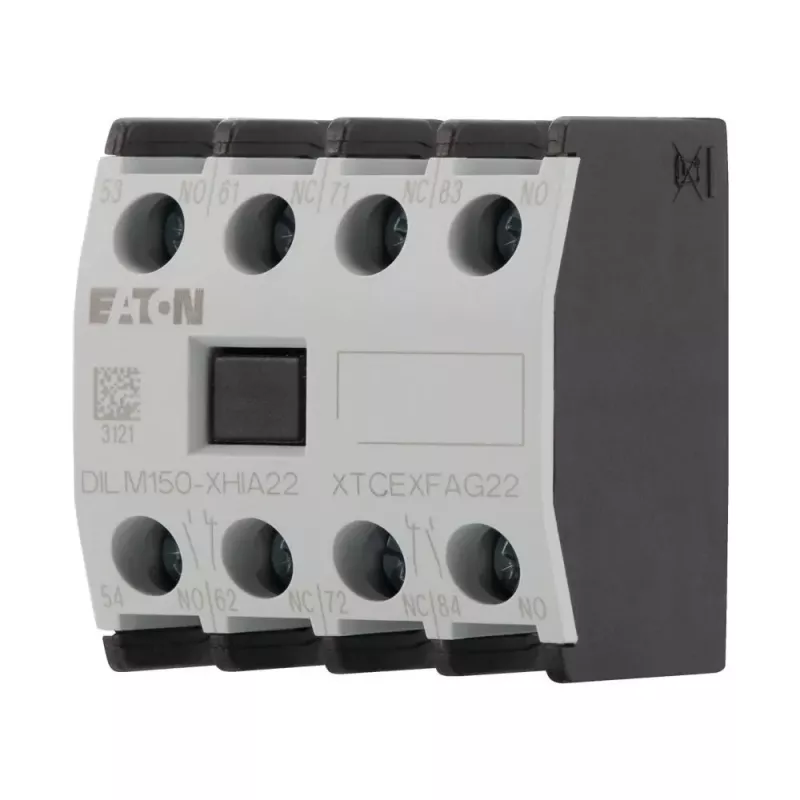

Eaton DILM150-XHIA22 bloque de contactos auxiliares, 2NO+2NC, montaje frontal, bornes de tornillo 283464

Contactor auxiliary contact blocks often fail to provide the right mix of normally open and normally closed contacts for control and signaling circuits. The Eaton DILM150-XHIA22 solves this with a 4-pole configuration: two normally open and two normally closed contacts, all in a compact front-mount module.

Who is it for

This auxiliary contact block is for panel builders and maintenance technicians using Eaton DILM40 to DILM150 contactors. It adds reliable auxiliary switching for interlocks, status indication, and control logic without replacing the contactor.

Main features

• Contact configuration: 2 NO + 2 NC
• Front mounting for quick installation on compatible contactors
• Screw terminals for secure wiring
• Rated operational current: 4 A at AC-15 230/400 V, 1 A at DC-13 24 V
• Rated insulation voltage: 690 V
• Mechanical life: over 10 million operations
• Operating temperature: -25 to +60 °C

Specifications

• Product type: Auxiliary contact block
• Series: DILM
• Compatibility: Eaton DILM40 to DILM150 contactors
• Number of poles: 4
• Contact configuration: 2 NO + 2 NC
• Mounting type: Front mounting
• Terminal type: Screw terminals
• Rated operational current (AC-15, 230 V): 4 A
• Rated operational current (AC-15, 400 V): 4 A
• Rated operational current (DC-13, 24 V): 1 A
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Degree of protection: IP20 (terminals)
• Mechanical life: > 10 million operations
• Electrical life: > 1 million operations
• Operating temperature range: -25 to +60 °C
• Standards: IEC/EN 60947-5-1

Tips

Verify that your contactor model is within the DILM40 to DILM150 range before ordering. The front mounting design allows tool-free snap-on installation, reducing downtime during retrofits.
