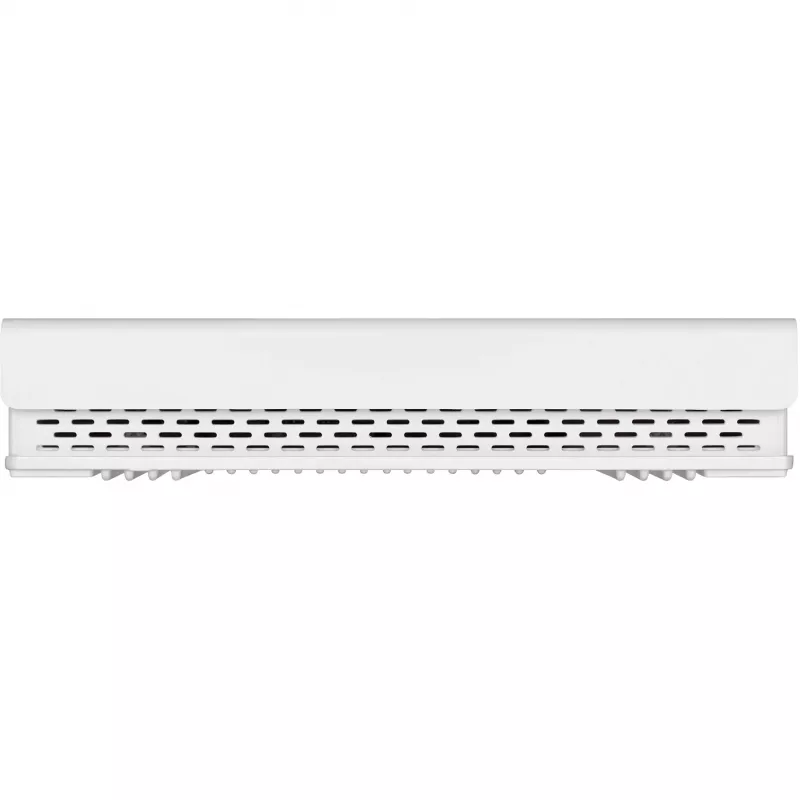

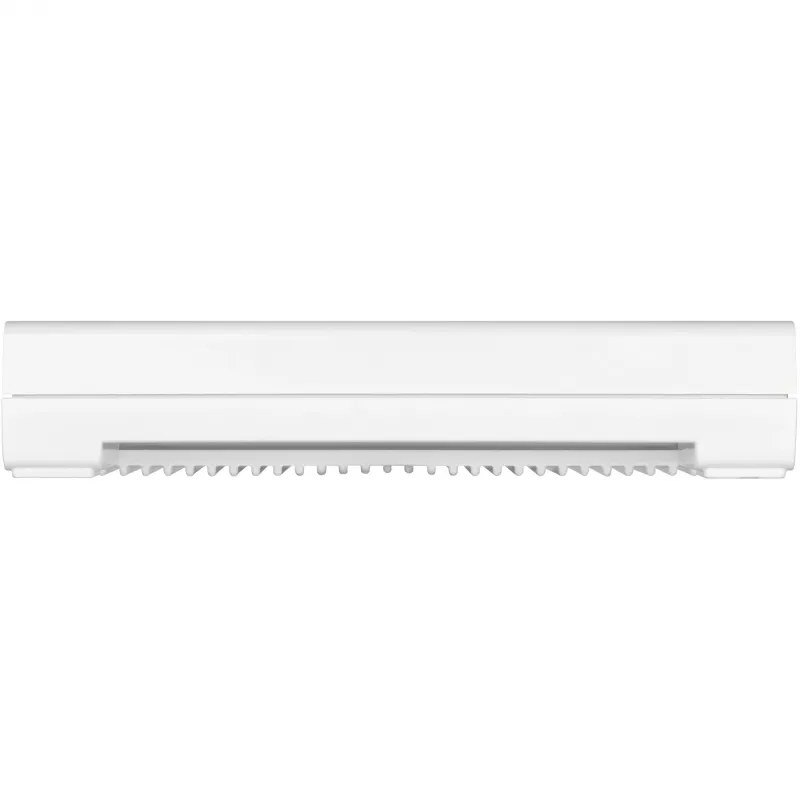

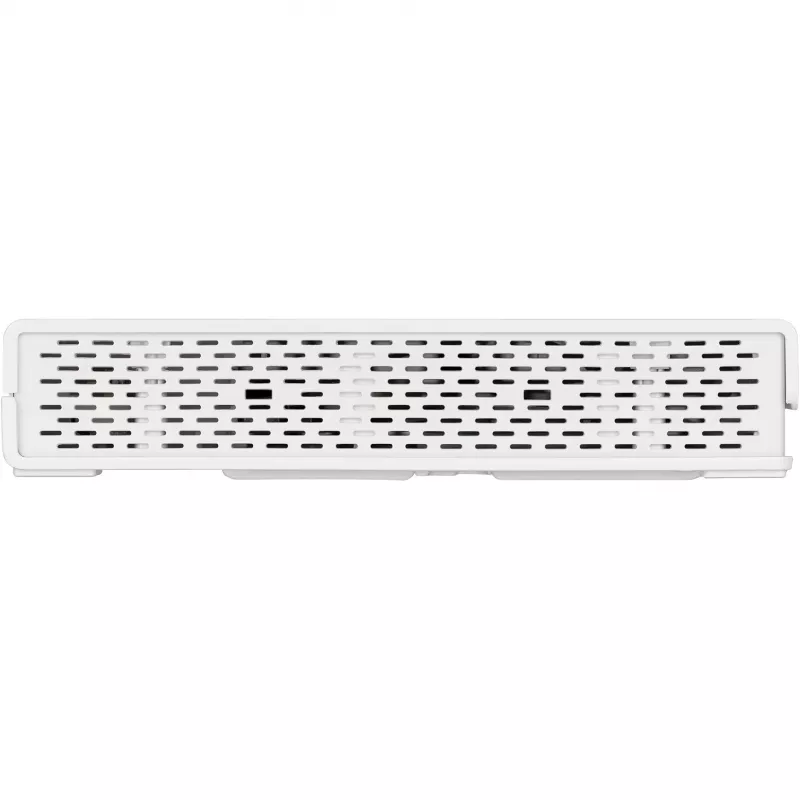

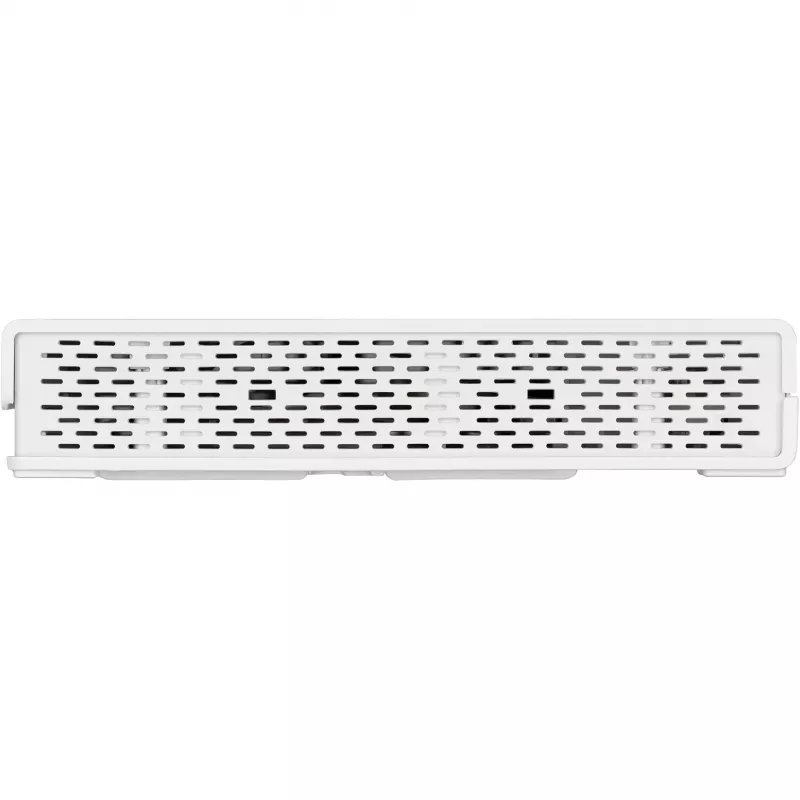

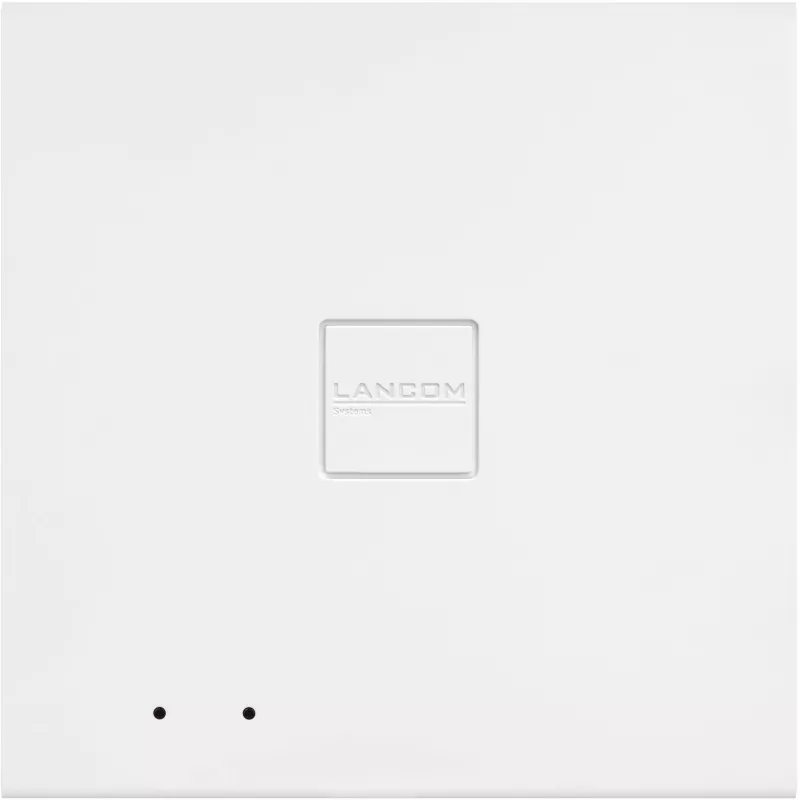

LANCOM Systems LANCOM LX-6200 Punto de acceso WLAN – Punto de acceso Wi‑Fi empresarial para interiores, pack a granel UE de 10 unidades

The LANCOM LX-6200 is an enterprise-grade indoor wireless access point supplied here as an EU bulk pack of 10 units. Designed for centralized and flexible deployment, the device provides managed Wi‑Fi 6 connectivity for offices, hotels, schools, medical practices and public indoor venues. It supports dual concurrent operation in the 2.4 GHz and 5 GHz bands, MU-MIMO for uplink and downlink, Bluetooth Low Energy and a USB 2.0 interface for IoT integration, and may be operated under centralized controller, cloud or stand-alone management.

Advantages

The LANCOM LX-6200 delivers high throughput with the latest Wi‑Fi 6 standard, enabling combined data rates suitable for small to medium user densities. Dual concurrent radios let 2.4 GHz and 5 GHz clients operate simultaneously while 2x2 MU‑MIMO increases spectral efficiency by serving multiple clients at once in both downlink and uplink directions. Integrated BLE 5.1 and a USB 2.0 port provide direct support for IoT devices such as sensors, electronic shelf labels or digital signage. Flexible management options include LANCOM Management Cloud, LANCOM WLAN controller or stand-alone operation, and modern security is provided via WPA3.

Suitable for

• Small to medium offices and branch locations
• Hotels, conference rooms and guest areas
• Schools, classrooms and lecture halls
• Medical practices and outpatient clinics (non-life-supporting environments)
• Retail spaces using IoT solutions such as digital signage or electronic shelf labels

Key specifications

• Wi‑Fi standard: IEEE 802.11ax (Wi‑Fi 6) with backward compatibility
• Dual concurrent radios: 2.4 GHz and 5 GHz
• Maximum aggregate data rate: up to 1,775 Mbps (2.4 GHz up to 575 Mbps, 5 GHz up to 1,200 Mbps)
• Spatial streams / MIMO: 2x2 MU‑MIMO for downlink and uplink
• Bluetooth: BLE 5.1 radio module integrated
• USB: USB 2.0 interface for IoT integration
• Security: supports WPA3 and enterprise authentication methods (EAP-TLS, EAP-TTLS)
• Management: LANCOM Management Cloud, LANCOM WLAN controller or stand-alone
• PoE support for power over Ethernet
• Antennas: 2 internal integrated antennas
• Standards compatibility: IEEE 802.11a/b/g/n/ac/ax and related amendments

How to use

Install the LANCOM LX-6200 at a central indoor location with clear line-of-sight to the intended coverage area and connect power via PoE or an appropriate power supply. For multi-unit deployments included in this EU bulk pack of 10, plan channel assignment and density according to the site layout to minimise co-channel interference. Configure SSIDs, security (WPA3 recommended) and VLAN or guest access through LANCOM Management Cloud, a LANCOM WLAN controller, or configure the device in stand-alone mode. Use the USB 2.0 and BLE interfaces to connect and manage compatible IoT endpoints or sensors where required.

Recommendations

For optimal performance in small to medium user-density environments, place access points to ensure overlapping coverage for seamless roaming, enable WPA3 where client support is available, and use centralized management for automated updates, monitoring and consistent policy enforcement. When integrating IoT devices via USB or BLE, validate compatibility and plan for separate SSIDs or VLANs to isolate IoT traffic from corporate data.
