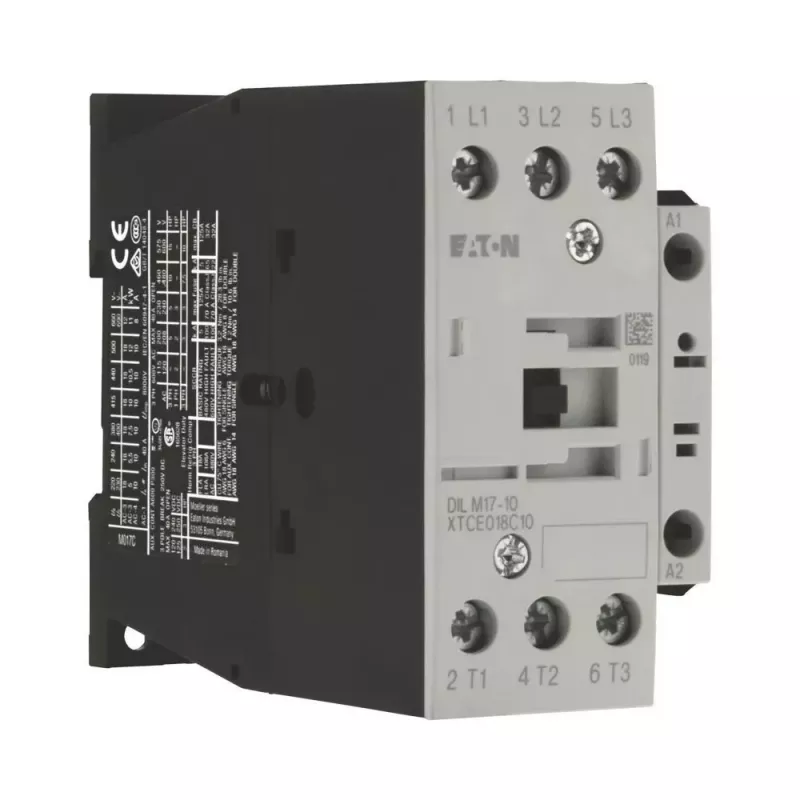

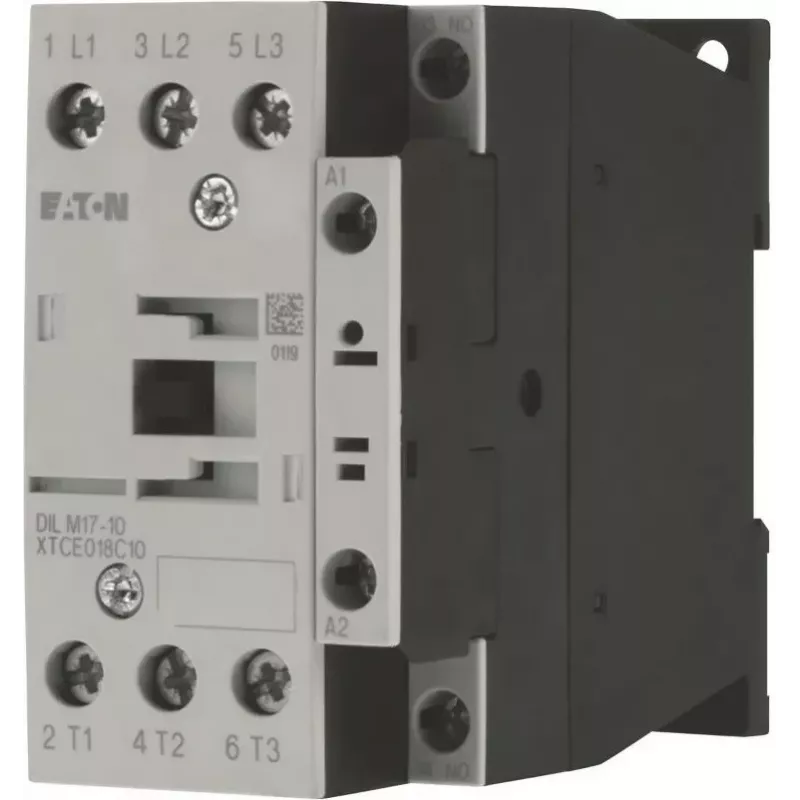

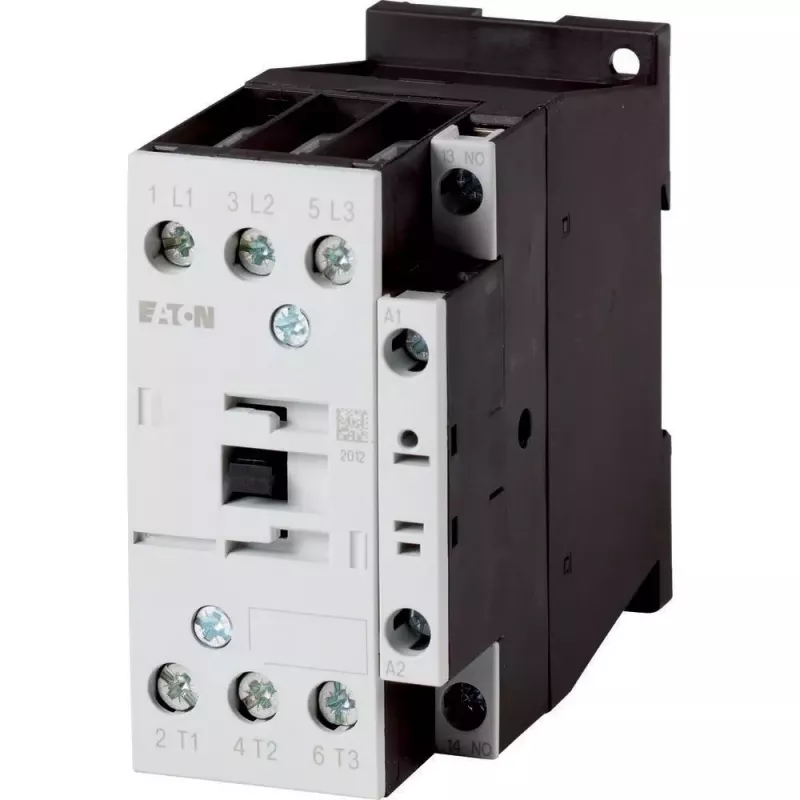

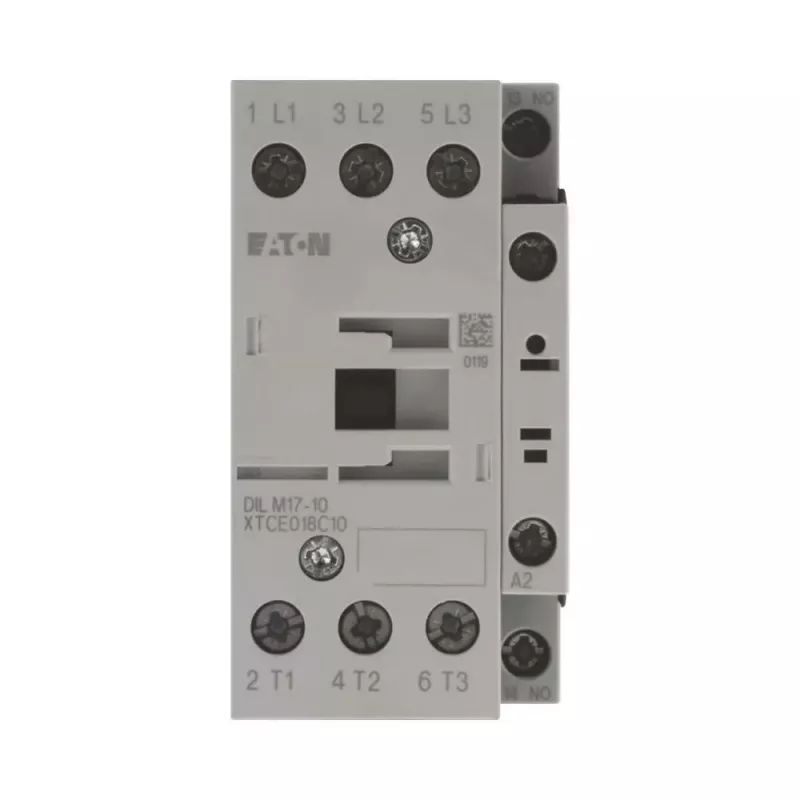

Eaton DILM17-10 contactor de potencia, tripolar, 1 contacto auxiliar NA, bobina 230 V AC 50 Hz / 240 V AC 60 Hz, 17 A, 7,5 kW

The Eaton DILM17-10 power contactor stands out in the DILM series for its efficient 17 A switching capacity in a compact frame, making it an ideal choice for motor control up to 7.5 kW at 400 V AC-3. Unlike many contactors that require additional accessories for basic feedback, this unit integrates one normally open auxiliary contact as standard, simplifying circuit design and reducing component count.

Highlights

• 3-pole main contact configuration (3 NO) for three-phase motor switching
• Built-in 1 NO auxiliary contact for status indication or control logic
• AC coil rated 230 V 50 Hz / 240 V 60 Hz for direct control without rectifier
• High electrical durability: 1.5 million operations at AC-3
• Wide operating temperature range from -25 °C to +60 °C
• Complies with IEC/EN 60947-4-1, VDE 0660, UL, CSA

In daily use

Designed for reliable switching of motors, resistive loads, and lighting circuits, the DILM17-10 excels in industrial environments where space is limited but performance cannot be compromised. The screw terminals accept a wide range of conductor sizes, ensuring secure connections even under vibration. Its IP20 protection degree makes it suitable for installation in control cabinets and enclosed panels. The contactor can be mounted on a 35 mm DIN rail or with screws, offering flexibility in panel layout. The coil's dual frequency rating (50/60 Hz) allows the same unit to be used in different regions without modification, reducing inventory complexity.

Full specifications

• Brand: Eaton
• Model: DILM17-10
• MPN: 277004
• EAN: 4015082770044
• Product type: Power contactor
• Series: DILM
• Number of main poles: 3
• Main contact configuration: 3 NO
• Auxiliary contact configuration: 1 NO
• Coil voltage: 230 V AC (50 Hz) / 240 V AC (60 Hz)
• Rated operational current (AC-3, 400 V): 17 A
• Rated operational power (AC-3, 400 V): 7.5 kW
• Rated insulation voltage (Ui): 690 V AC
• Rated impulse withstand voltage (Uimp): 6 kV
• Mounting type: DIN rail / screw
• Terminal type: Screw terminals
• Operating temperature range: -25 to +60 °C
• Protection degree: IP20
• Electrical durability (AC-3): 1.5 x 10^6 operations
• Mechanical durability: 10 x 10^6 operations
• Standards: IEC/EN 60947-4-1, VDE 0660, UL, CSA
• Control circuit type: AC operated

Final note

For engineers and panel builders seeking a dependable, standards-compliant contactor with integrated auxiliary contact and dual-frequency coil, the Eaton DILM17-10 delivers consistent performance in a compact, easy-to-install package.
