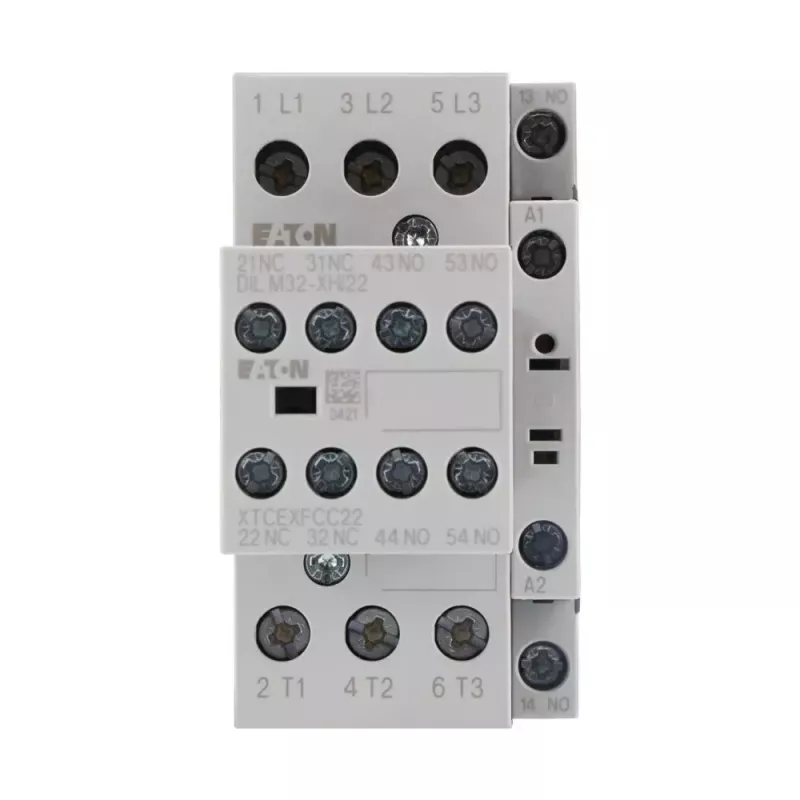

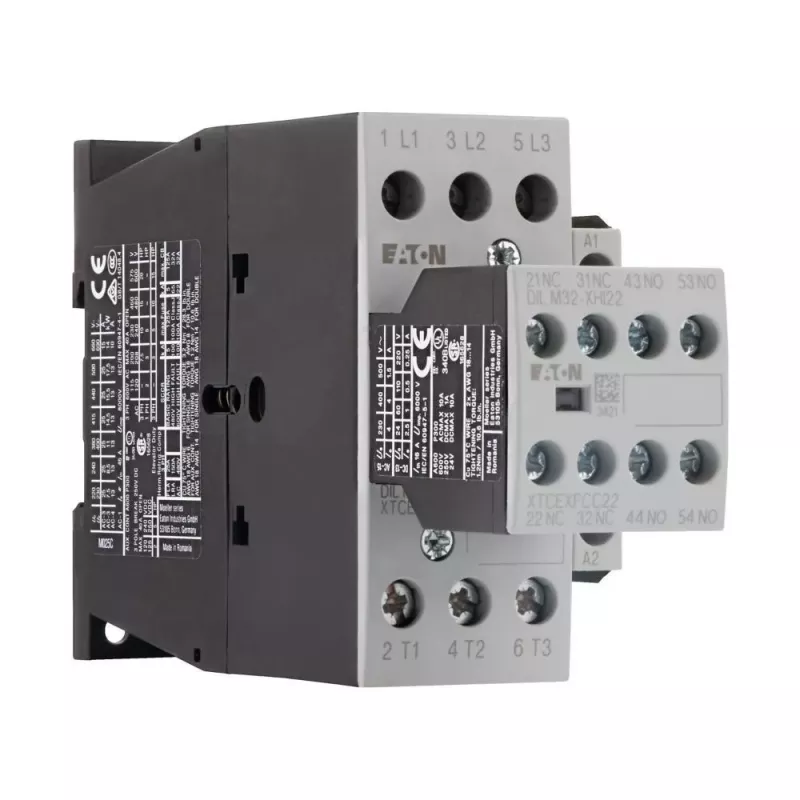

Eaton DILM25-32 contactor de potencia 3 polos, bobina 230 V AC, 11 kW, 25 A, 3NO + 2NO/2NC contactos auxiliares 277228

Industrial motor control demands a contactor that can switch high currents reliably while withstanding harsh electrical environments. The Eaton DILM25-32 power contactor addresses this by offering robust switching for three-phase motors up to 11 kW at 400 V AC, with a 230 V AC coil and a versatile auxiliary contact set for control and feedback.

Who is it for

This contactor is built for panel builders, machine OEMs, and maintenance engineers who need a compact, DIN-rail mountable switching device for motor starters, heating circuits, and other industrial loads. It suits applications where space is limited but performance cannot be compromised.

Main features

• 3 main poles, normally open (3 NO), rated for 25 A AC-3 at 400 V (11 kW motor power).
• Integrated auxiliary contacts: 2 NO + 2 NC for control logic, interlocks, or status indication.
• 230 V AC coil, 50/60 Hz, with a wide operating temperature range from -25 to +60 °C.
• High electrical durability: 1.5 million operations under AC-3 load; mechanical life of 10 million cycles.
• Rated insulation voltage 690 V and impulse withstand 6 kV for safe operation in industrial networks.
• Mounts on standard 35 mm DIN rail or with screws; IP20 protection for use inside enclosures.

Specifications

• Product type: Power contactor
• Model: DILM25-32
• Number of main poles: 3
• Main contact configuration: 3 NO
• Auxiliary contact configuration: 2 NO + 2 NC
• Coil voltage: 230 V AC, 50/60 Hz
• Rated operational power (AC-3, 400 V): 11 kW
• Rated operational current (AC-3, 400 V): 25 A
• Rated operational current (AC-1, 400 V): 45 A
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Mounting: DIN rail or screw
• Degree of protection: IP20
• Ambient operating temperature: -25 to +60 °C
• Electrical life (AC-3): 1.5 x 10^6 operations
• Mechanical life: 10 x 10^6 operations
• Terminal type: Screw terminals
• Standard compliance: IEC/EN 60947
• Max. switching frequency (AC-3): 900 operations/hour

Tips

For motor starting applications, pair this contactor with an appropriate thermal overload relay to provide complete protection. Ensure the coil voltage matches your control circuit; this model requires 230 V AC. When mounting in an enclosure, allow adequate ventilation to keep ambient temperature within the specified range.
