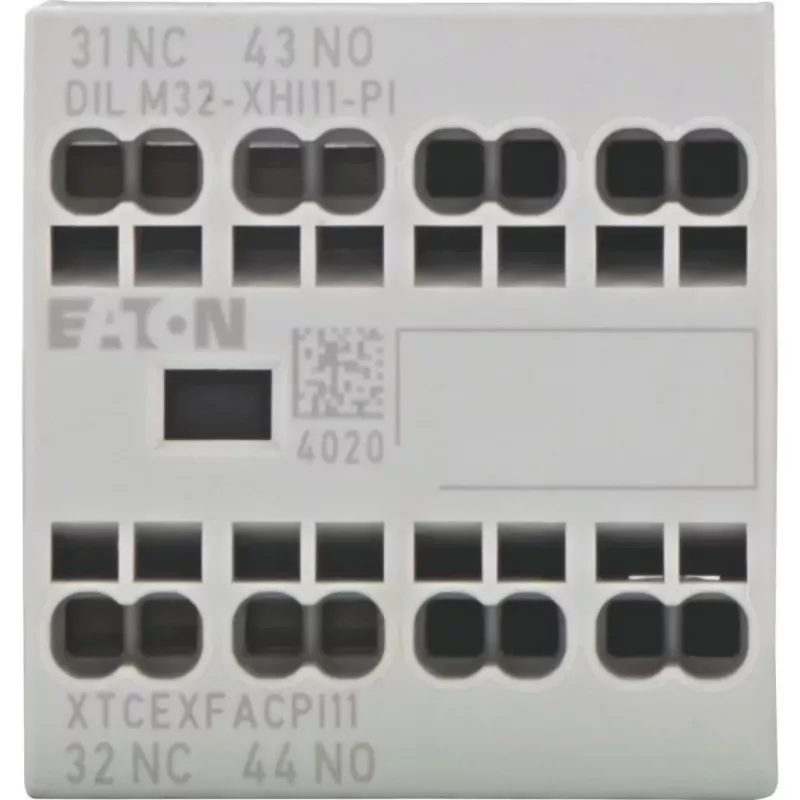

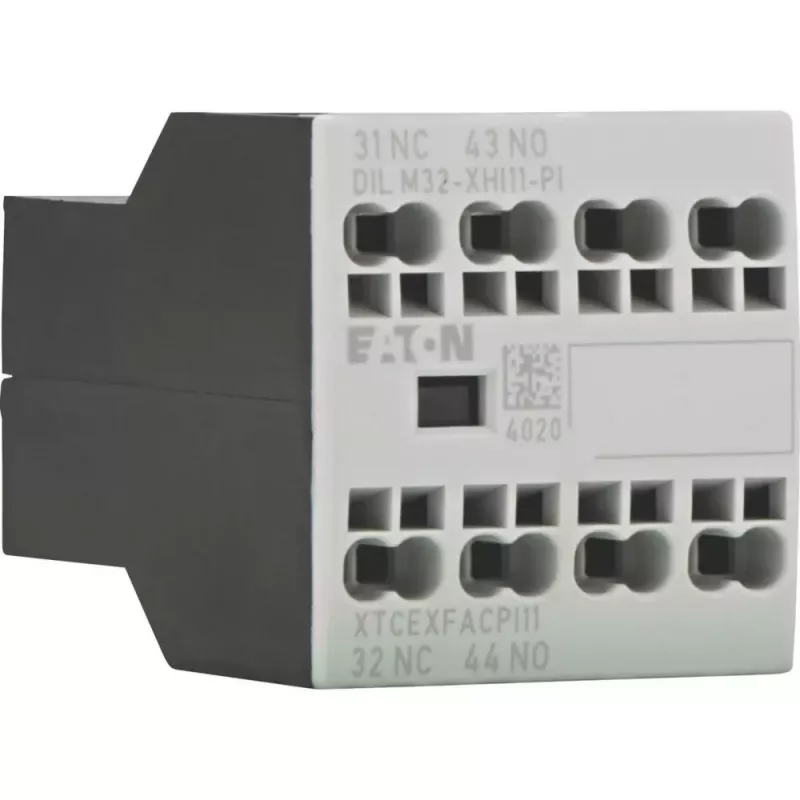

Eaton DILM32-XHI11-PI bloque de contactos auxiliares, 1 NO + 1 NC, 4 A, montaje frontal, para contactores DILM7-DILM32 199309

Expand the control capabilities of your Eaton DILM contactors with the DILM32-XHI11-PI auxiliary contact block. This front-mounting module adds one normally open and one normally closed instantaneous contact, enabling reliable signaling and interlocking in motor control circuits.

Who is it for

Electrical installers, panel builders, and maintenance technicians who need to add auxiliary contacts to Eaton DILM7 through DILM32 contactors without rewiring the main circuit.

Main features

• Contact configuration: 1 normally open (NO) + 1 normally closed (NC)
• Rated operational current: 4 A at AC-15 230 V, 1 A at DC-13 220 V
• Front mounting for quick installation on compatible contactors
• Screw terminals for secure, vibration-resistant wiring
• Rated insulation voltage 690 V, impulse withstand 6 kV
• Operating temperature range -25 °C to +60 °C
• Thermoplastic housing in grey/black

Specifications

• Brand: Eaton
• Model: DILM32-XHI11-PI
• MPN: 199309
• EAN: 4015081973934
• Contact configuration: 1 NO + 1 NC
• Number of poles: 2-pole
• Mounting type: Front mounting
• Compatibility: For DILM7 to DILM32 contactors
• Rated operational current (AC-15, 230 V): 4 A
• Rated operational current (DC-13, 220 V): 1 A
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Degree of protection: IP20
• Terminal type: Screw terminals
• Standards: IEC/EN 60947
• Operating temperature range: -25 to +60 °C
• Type of auxiliary contact: Instantaneous
• Series: DILM
• Connection type: Screw connection
• Material: Thermoplastic
• Colour: Grey/Black
• RoHS compliant: Yes

Tips

Verify the contactor model before ordering: this block fits DILM7 through DILM32. For high-frequency switching applications, consider the electrical endurance of the contacts under your specific load conditions.
