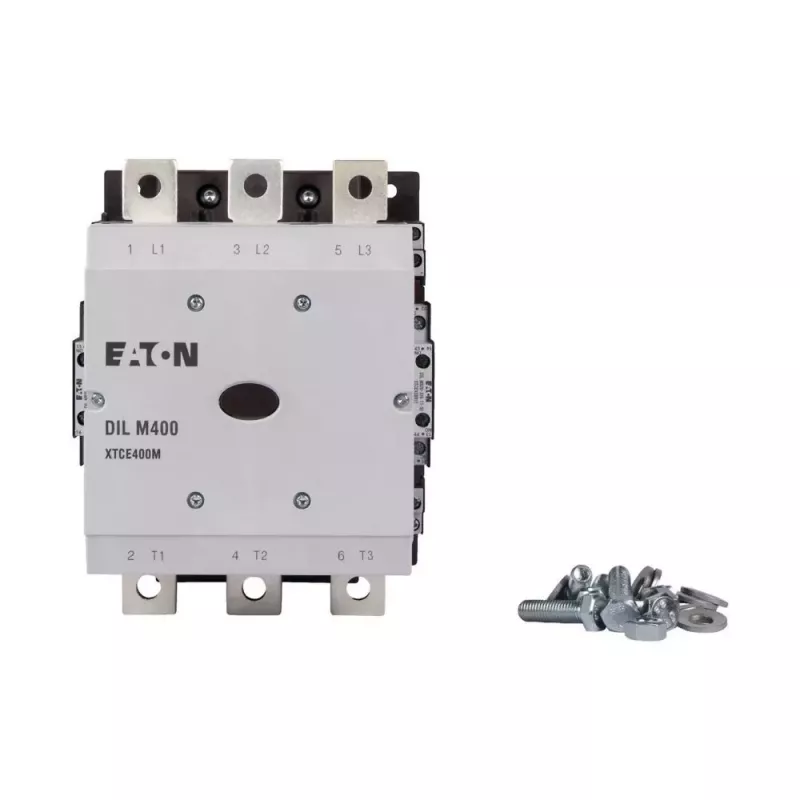

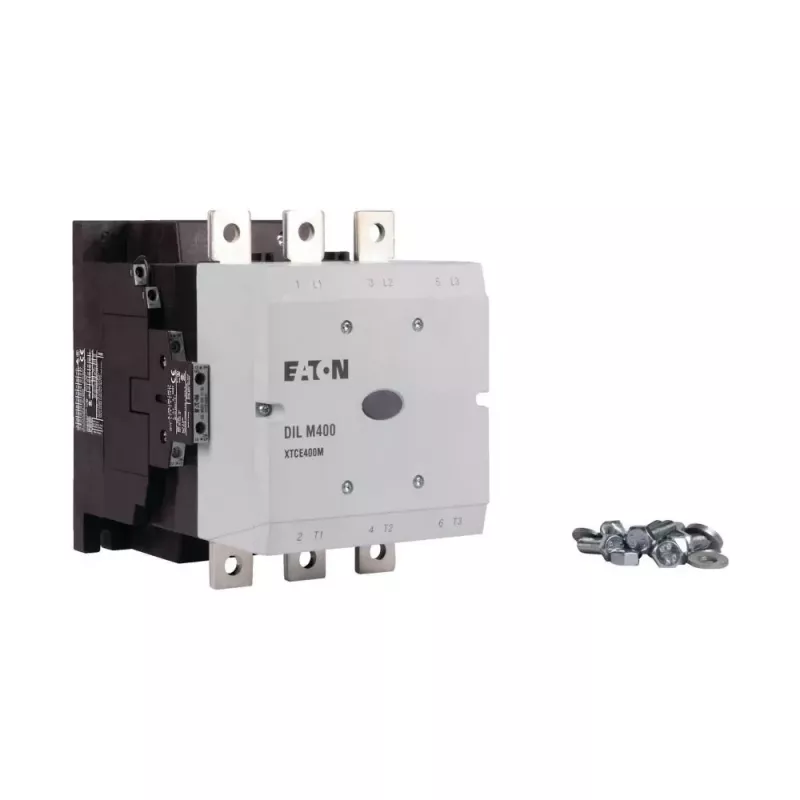

Eaton DILM400/22 RA250 contactor de potencia, tripolar, 200 kW AC-3, 400 A, bobina 250 V AC, 2NO+2NC 208209

Handling 200 kW at 400 V AC-3, the Eaton DILM400/22 RA250 power contactor delivers 400 A rated operational current with a 250 V AC coil and 2 NO + 2 NC auxiliary contacts.

Overview

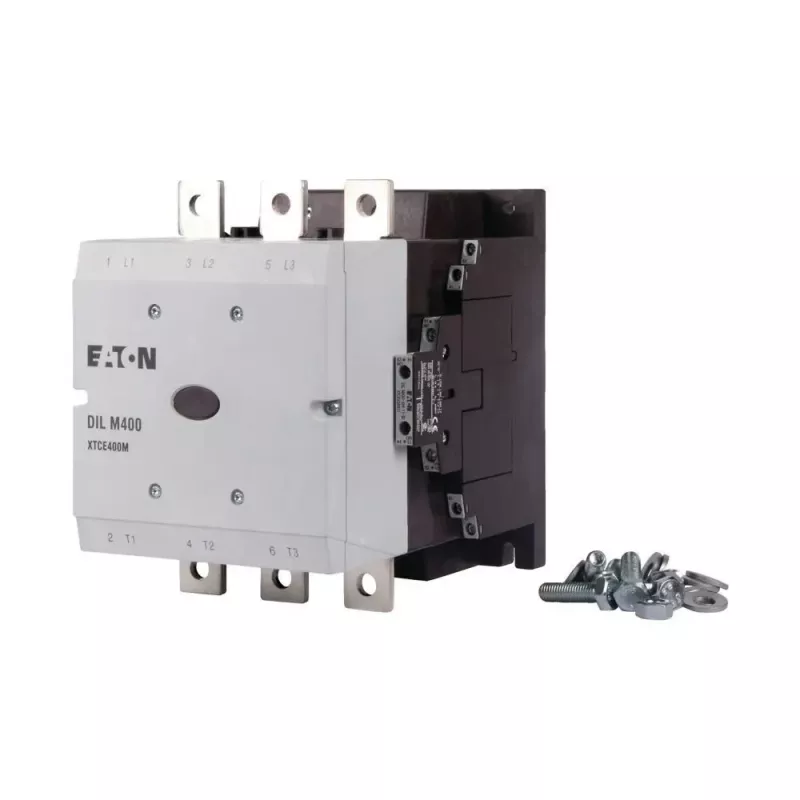

The Eaton DILM400/22 RA250 is a 3-pole power contactor engineered for demanding motor control applications. It features a rated operational power of 200 kW at 400 V AC-3 and a rated operational current of 400 A. The contactor is equipped with a 250 V AC coil and includes 2 normally open and 2 normally closed auxiliary contacts for flexible control integration.

What stands out

• High switching capacity: 200 kW at 400 V AC-3
• Robust 3-pole design with screw terminals
• Coil voltage: 250 V AC
• Auxiliary contacts: 2 NO + 2 NC
• Rated insulation voltage: 1000 V
• Rated impulse withstand voltage: 8 kV

Technical details

• Rated operational current (AC-3, 400 V): 400 A
• Utilization category: AC-3
• Mounting type: Screw mounting
• Degree of protection (front): IP20
• Ambient operating temperature: -25 to +60 °C
• Electrical life (AC-3): 1.5 x 10^6 operations
• Mechanical life: 10 x 10^6 operations

Our verdict

A reliable high-power contactor for industrial motor control, offering proven performance and flexible auxiliary contacts.
