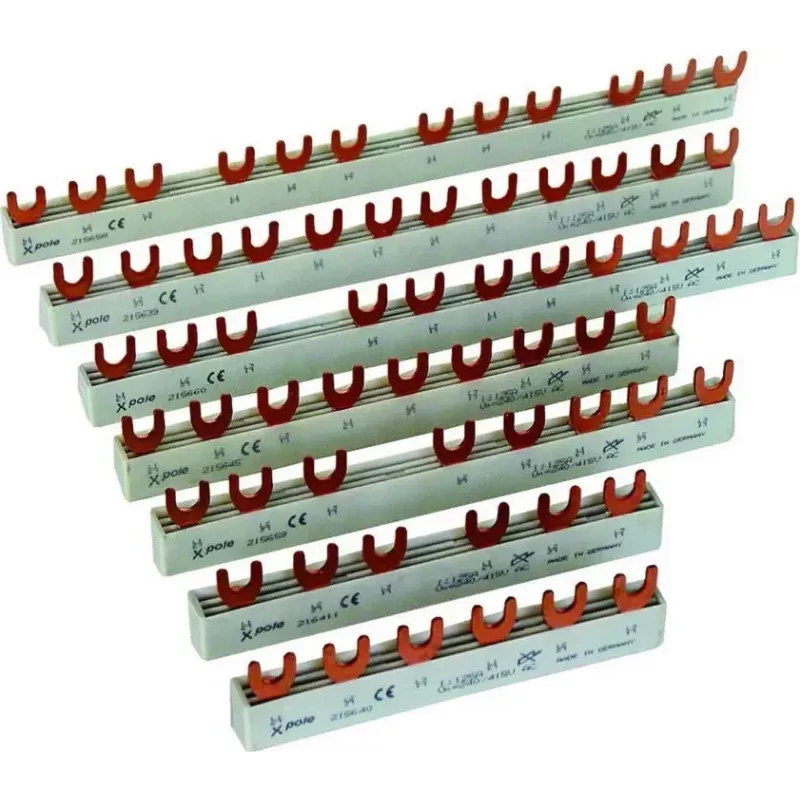

Eaton EVG-16/4PHAS/12MODUL Barra colectora de pines 213,6 mm, tetrapolar, 16 A, 12 módulos 291476

Pin busbar for power distribution in switchgear and controlgear assemblies, delivering 16 A across 12 modules with a 4-pole configuration. Fully insulated copper conductors ensure safe and reliable connectivity for Eaton xPole series devices.

Advantages

Fully insulated design enhances safety and prevents accidental contact. Copper conductor material provides excellent conductivity and durability. Horizontal mounting position simplifies installation in standard distribution boards.

Suitable for

• Eaton xPole series miniature circuit breakers (MCBs)
• Residual current devices (RCDs)
• Switchgear and controlgear assemblies

Key specifications

• Product type: Pin busbar
• Number of poles: 4
• Rated current: 16 A
• Number of modules: 12
• Length: 213.6 mm
• Rated operational voltage: 690 V AC
• Conductor cross-section: 10 mm²
• Connection type: Pin
• Insulation: Fully insulated
• Pitch: 17.8 mm
• Mounting position: Horizontal
• Conductor material: Copper
• Insulation colour: Grey

Recommendations

Verify compatibility with your specific Eaton xPole devices before installation. Ensure proper torque when connecting to avoid loose contacts.
