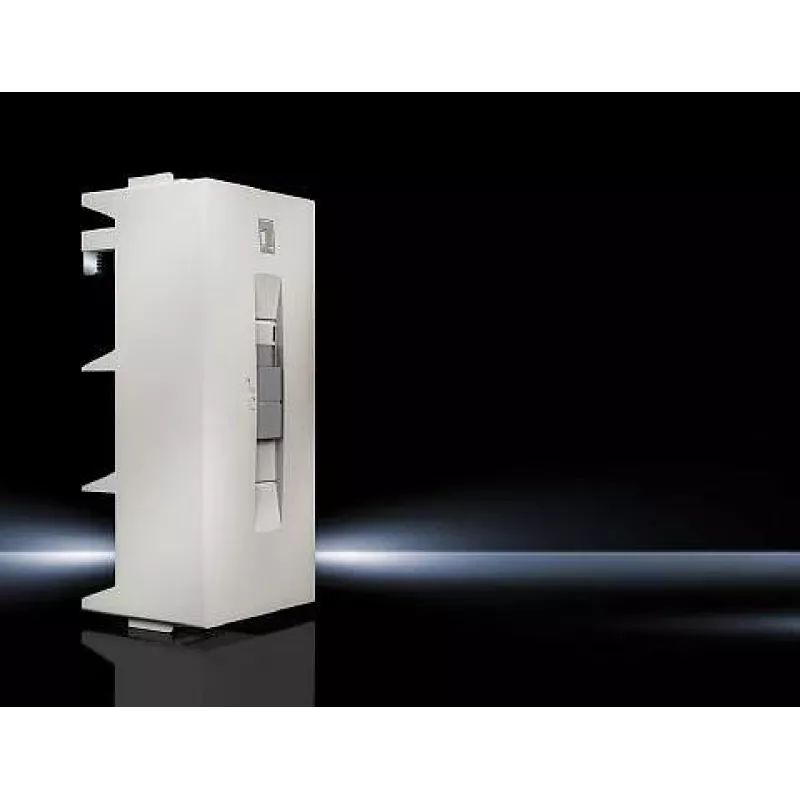

Rittal SV adaptador de conexión 9342.280 para sistema de barras colectoras RiLine60, 250 A, 3 polos, gris (RAL 7035)

This Rittal SV connection adapter stands out by integrating directly onto RiLine60 busbars with thicknesses of 5 mm or 10 mm, enabling a compact 250 A power tap without additional mounting accessories. Its polyamide housing in grey (RAL 7035) matches standard Rittal enclosures, while the screw connection supports large conductors up to 95 mm².

Highlights

• Rated current: 250 A, 3-pole
• Compatible with RiLine60 busbar system, 5 mm and 10 mm busbar thickness
• Screw connection for round conductors up to 1 x 95 mm² or 2 x 50 mm²
• Material: Polyamide, colour grey (RAL 7035)
• Dimensions: 129 mm x 246 mm (W x H)

In daily use

The adapter mounts directly onto the busbar, providing a reliable connection point for power distribution. It is suitable for rated operating voltages up to 690 V AC and operates within a temperature range of -5 °C to +55 °C.

Full specifications

• Product type: Connection adapter
• Series: SV (RiLine60)
• Rated operating voltage: 690 V AC, 3~
• Max. cable cross-section: 1 x 95 mm² or 2 x 50 mm²
• Protection category: IP20
• Operating temperature: -5 °C to +55 °C
• Storage temperature: -40 °C to +80 °C
• Standards: IEC 61439
• Approvals: UL, cUL, VDE

Final note

Designed for use with Rittal RiLine60 busbar systems, this adapter ensures a secure and efficient power tap in industrial applications.
