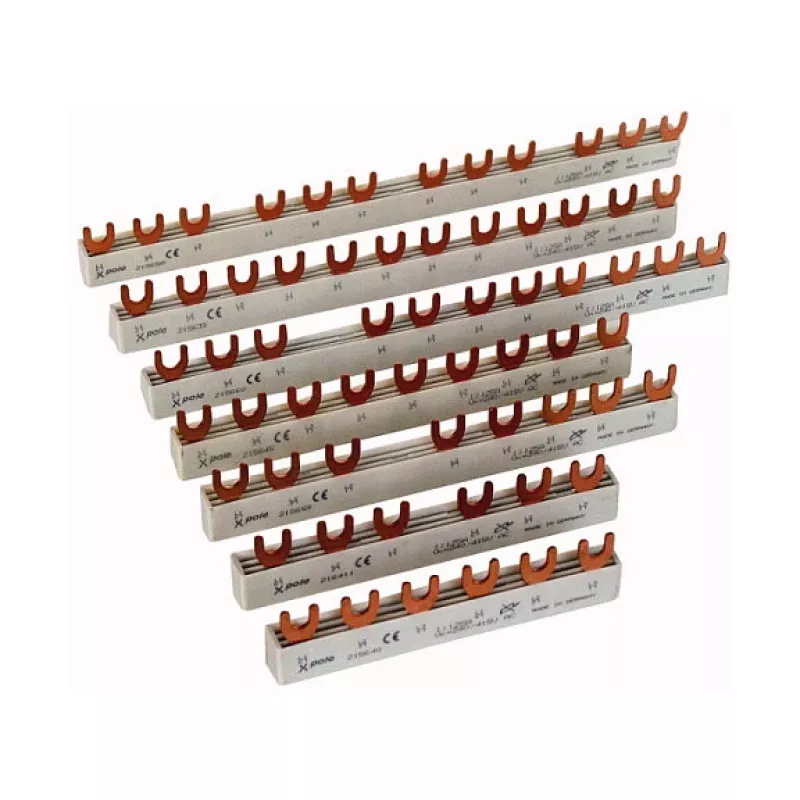

Eaton EVG-3PHAS/N 8TE 10mm² peine de bornes trifásico+N 63A

Unlike conventional busbars that demand tedious wiring for every connection, the Eaton EVG-3PHAS/N streamlines power distribution with a fork-type contact system. This 3-phase plus neutral rail snaps directly onto standard DIN-rail modular devices, eliminating loose jumpers and reducing installation errors. With a 10 mm² copper cross-section and 63 A rating, it reliably feeds MCBs, RCDs, and RCBOs in compact 8-module layouts.

Highlights

• 3-phase + neutral busbar with fork-type (Gabel) contacts
• 10 mm² copper cross-section for high current capacity
• 8 module units (TE) for compact installations
• Rated current 63 A, insulation voltage 500 V
• Compatible with MCBs, RCDs, RCBOs and other modular switchgear

In daily use

Ideal for distribution boards, this busbar simplifies the connection of multiple modular devices. The fork-type contacts provide a secure grip and can be quickly installed onto standard DIN rails, saving time and reducing potential wiring errors. Its 18 mm pitch matches standard module spacing, ensuring a clean, professional finish in any panel.

Full specifications

• Connection type: Fork
• Number of phases: 3P+N
• Number of poles: 4
• Cross-section: 10 mm²
• Number of module units: 8 TE
• Rated current (In): 63 A
• Rated insulation voltage (Ui): 500 V
• Rated impulse withstand voltage (Uimp): 4 kV
• Pitch/module spacing: 18 mm
• Conductor material: Copper
• Insulation material: Plastic
• Mounting type: DIN rail
• Operating temperature: -25 to +50 °C
• Standard: IEC/EN 60947-7-1

Final note

This busbar is a reliable and efficient solution for modern electrical installations, delivering high performance and easy installation.
