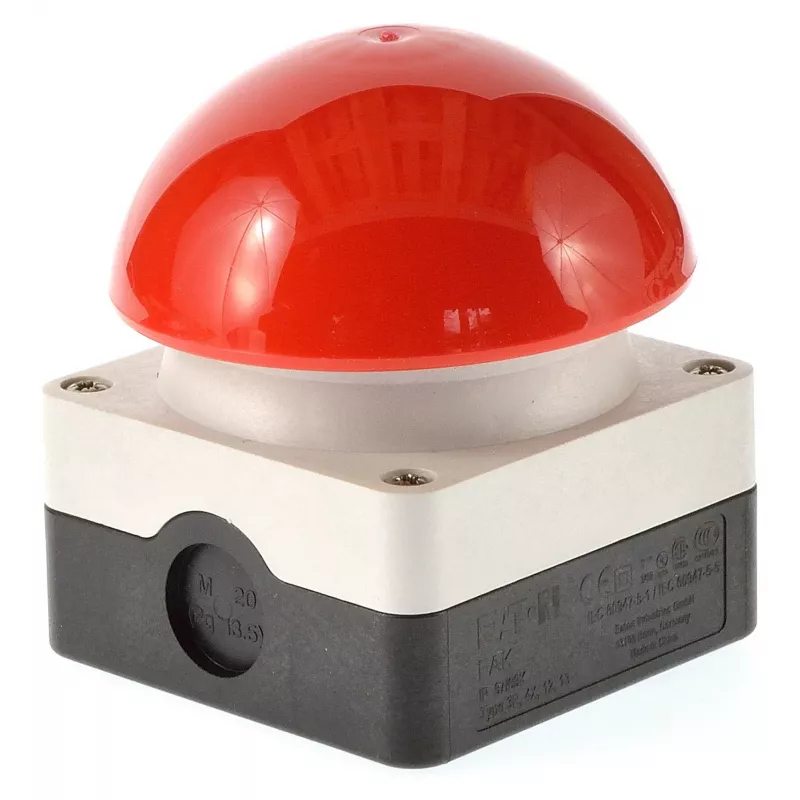

EATON FAK-R/KC11/I pulsador de pie/palma con seta, 1NC+1NO, rojo, 230V AC, 6A, IP67, momentáneo, montaje en panel

Industrial control panels often require a robust, easily identifiable emergency stop or start actuator that can be operated by foot or palm, even in harsh environments. The EATON FAK-R/KC11/I mushroom head pushbutton addresses this need with a large red actuator, momentary operation, and IP67 protection, ensuring reliable performance in demanding applications.

Who is it for

This pushbutton is ideal for machine builders, panel builders, and maintenance engineers who need a durable actuator for control circuits in industrial machinery, conveyor systems, or equipment exposed to dust and moisture. It suits applications where hands-free operation is necessary or where a prominent stop function is required.

Main features

• Large red mushroom head actuator for high visibility and easy operation by foot or palm.
• Momentary (push-to-actuate) operation; returns to original position when released.
• Contact configuration: 1 normally closed (NC) and 1 normally open (NO) for versatile control logic.
• Rated for 230 V AC and 6 A, suitable for standard industrial control circuits.
• IP67 protection: dust-tight and protected against temporary immersion, ideal for harsh environments.
• Panel mount design with screw terminals for secure and reliable wiring.
• Part of the EATON FAK series, known for robustness and long service life.

Specifications

• Brand: EATON
• Model: FAK-R/KC11/I
• MPN: 229746
• EAN: 4015082297466
• Product Type: Mushroom Head Pushbutton
• Operation Type: Momentary
• Actuator Type: Mushroom Head
• Actuation Method: Foot or Palm
• Actuator Color: Red
• Rated Operating Voltage (AC): 230 V
• Rated Operating Current: 6 A
• Contact Configuration: 1 Normally Closed (NC) / 1 Normally Open (NO)
• Protection Class: IP67
• Series: FAK
• Mounting Type: Panel Mount
• Connection Type: Screw Terminals
• Number of Actuators: 1
• Voltage Type: AC

Tips

For optimal performance, ensure the panel cutout matches the manufacturer's specifications and that wiring is done by a qualified electrician. Regularly inspect the actuator for damage or contamination, especially in environments with high dust or moisture. Consider using a protective shroud if accidental operation is a concern.
