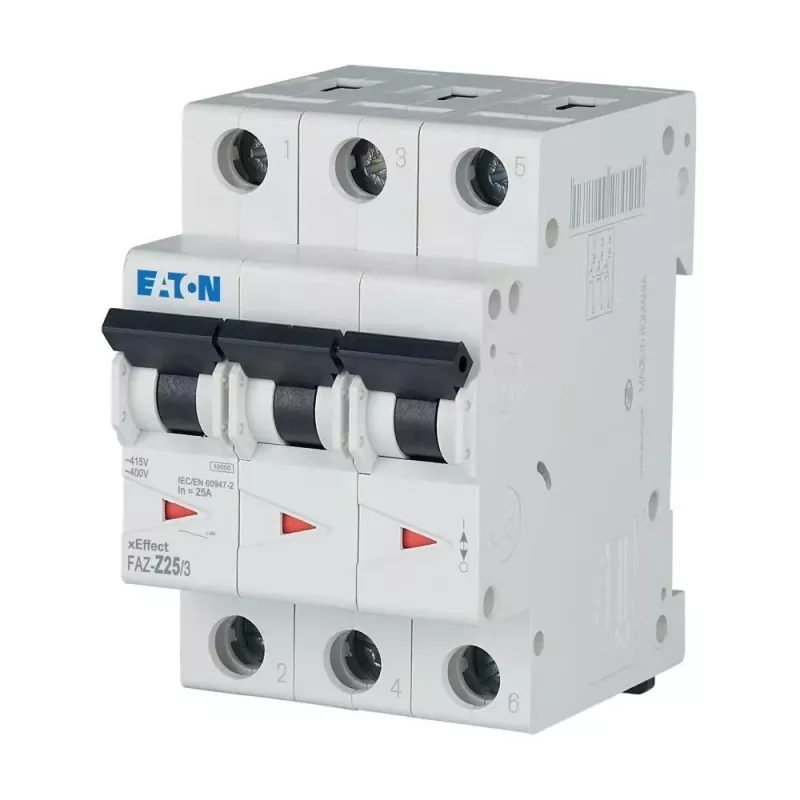

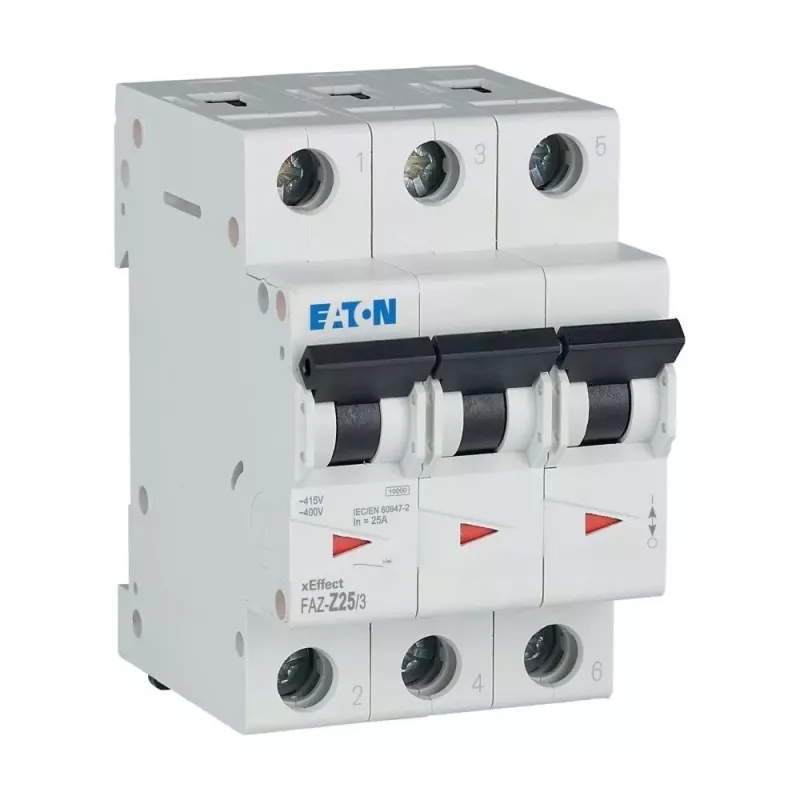

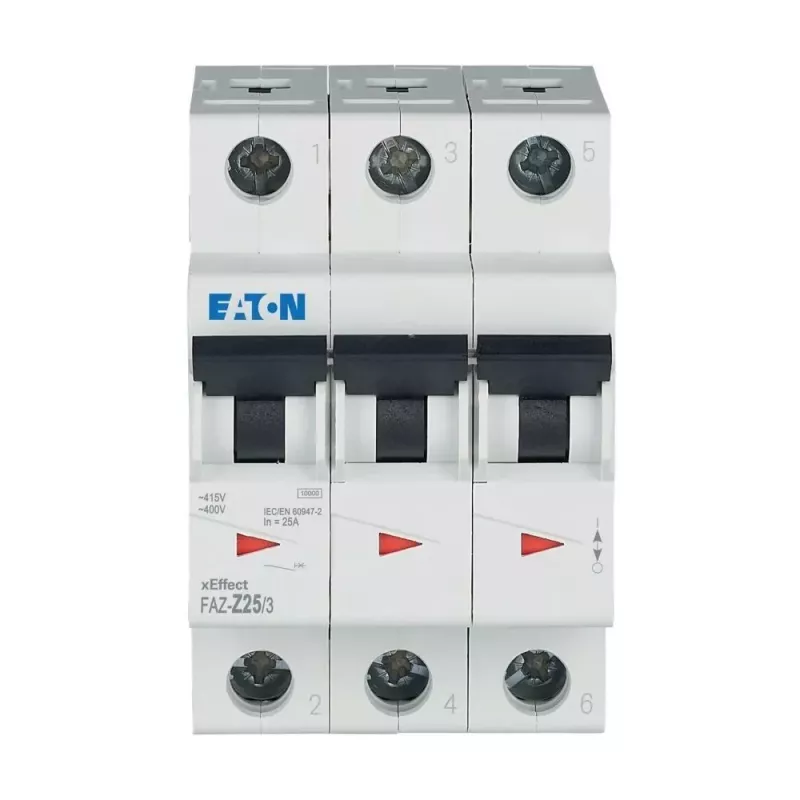

Eaton FAZ-Z25/3 Interruptor automático 25A 3 polos curva Z 278929

Miniature circuit breaker (MCB) with 3 poles, rated current 25 A and Z tripping characteristic, providing reliable protection against overload and short circuit in electrical installations. Its Z characteristic ensures fast tripping at low overcurrents, making it suitable for protecting sensitive equipment and semiconductor circuits.

Advantages

High breaking capacity of 10 kA, energy limitation class 3, and a wide operating temperature range from -25 to +75 °C ensure dependable performance in demanding environments. The screw terminals accept conductors up to 25 mm², simplifying installation.

Suitable for

• Protection of control circuits and sensitive electronic loads
• Industrial and commercial distribution boards
• DIN rail mounting (EN 60715)

Key specifications

• Number of poles: 3
• Rated current: 25 A
• Tripping characteristic: Z
• Rated voltage: 230/400 V AC
• Rated switching capacity: 10 kA
• Frequency: 50/60 Hz
• Energy limitation class: 3
• Terminal capacity: 1 - 25 mm²
• Degree of protection: IP20 (terminals), IP40 (with cover)
• Standards: EN 60898-1, IEC 60898-1

Recommendations

Ideal for protecting circuits with inrush currents or sensitive electronic equipment where fast tripping is required. Ensure correct selection of rated current and characteristic for the application.
