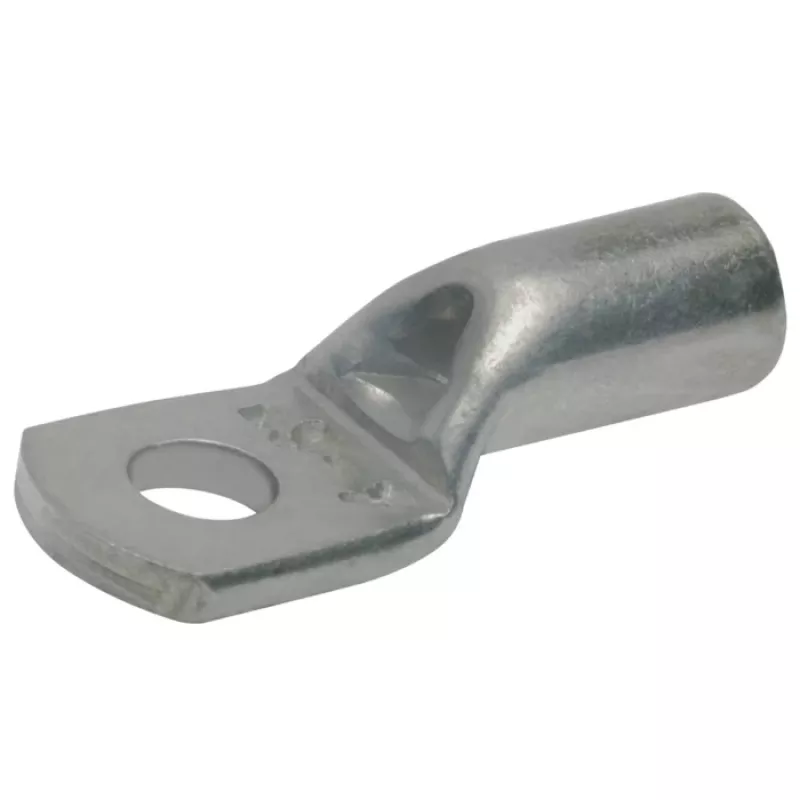

KLAUKE 94R5 terminal tubular, cobre estañado, 4 mm², recto, M5

The KLAUKE 94R5 is a high-quality tubular cable lug designed for reliable electrical connections in power distribution, control systems, and grounding applications. Manufactured from electrolytic copper (E-Cu) with a tin-plated surface, this lug offers excellent conductivity and corrosion resistance. It is suitable for fine-stranded, multi-stranded, and solid copper conductors with a cross-section of 4 mm². The straight design and single bolt hole (5.3 mm diameter for M5 bolts) ensure easy and secure installation. Compliant with DIN 46235, the 94R5 is ideal for hexagonal crimping and operates within a temperature range of -55°C to +150°C, with a voltage rating up to 1000 V AC/DC.

Advantages

High corrosion resistance due to tin plating; excellent electrical conductivity from electrolytic copper; versatile conductor compatibility; wide temperature range; compliant with industry standards.

Suitable for

• Power distribution systems
• Control systems
• Grounding applications
• Industrial electrical installations

Key specifications

• Product Type: Tubular Cable Lug
• Material: Electrolytic Copper (E-Cu)
• Surface Treatment: Tin-plated
• Cable Cross-section: 4 mm²
• Bolt Hole Diameter: 5.3 mm (M5)
• Connection Angle: Straight
• Number of Bolt Holes: 1
• Insulation: Uninsulated
• Standard Compliance: DIN 46235
• Temperature Range: -55°C to +150°C
• Voltage Rating: Up to 1000 V AC/DC
• Crimping Type: Hexagonal crimping

Recommendations

For optimal performance, use with appropriate hexagonal crimping tools and ensure proper conductor preparation. Always follow manufacturer guidelines for installation.
