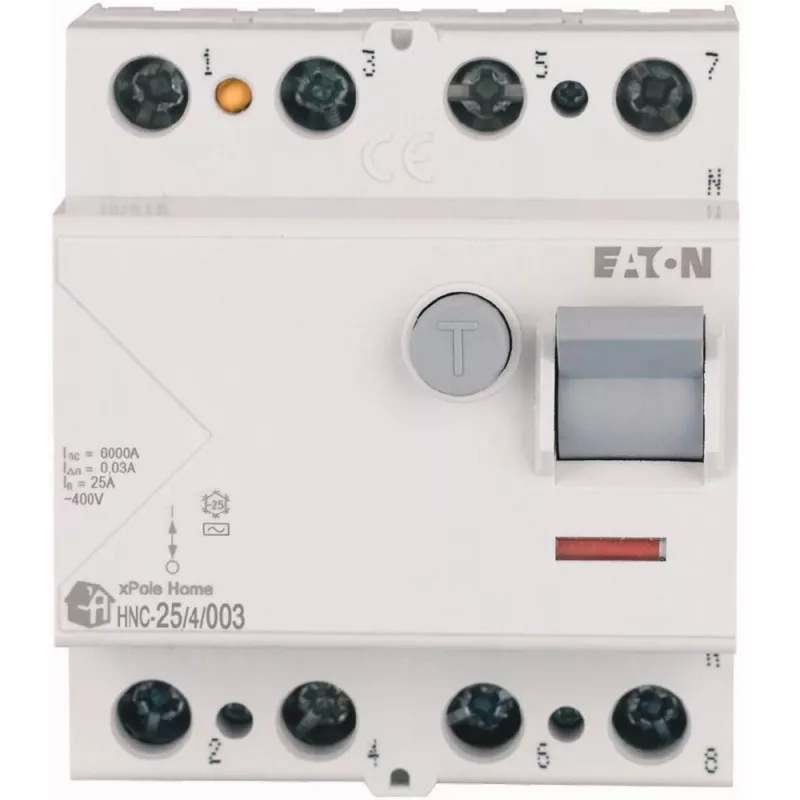

EATON interruptor diferencial 25A 4P 4M 30mA AC 6kA

The EATON Residual Current Circuit Breaker (RCCB) is a high-quality protective device designed for reliable disconnection in case of earth faults. With a rated current of 25A and 4 poles, it ensures safety in residential and commercial electrical installations.

Advantages

This RCCB offers robust protection against sinusoidal AC residual currents, with a rated residual operating current of 30mA. Its compact 4-module width allows easy DIN rail mounting, saving space in distribution boards. The device complies with IEC/EN 61008 standards, ensuring high electrical endurance of 10,000 cycles and mechanical endurance of 20,000 cycles.

Suitable for

• Residential electrical panels
• Commercial building installations
• Industrial control systems requiring earth fault protection

Key specifications

• Rated Current (In): 25 A
• Number of Poles: 4P
• Rated Residual Operating Current (IΔn): 30 mA
• Type of Residual Current: AC (sinusoidal)
• Rated Short-Circuit Breaking Capacity (Inc): 6 kA
• Rated Voltage (Ue): 230/400 V AC
• Rated Frequency: 50/60 Hz
• Mounting Type: DIN Rail
• Module Width: 4 Modules
• Degree of Protection (Terminals): IP20
• Degree of Protection (Installed): IP40
• Operating Temperature Range: -25 to +40 °C
• Terminal Capacity (Solid/Stranded): 1.5 - 25 mm²
• Standard: IEC/EN 61008
• Electrical Endurance: 10,000 cycles
• Mechanical Endurance: 20,000 cycles
• Tripping Characteristic: Instantaneous

Recommendations

For optimal safety, pair this RCCB with an appropriate MCB or RCBO. Ensure correct wiring and compliance with local electrical codes. Always consult a qualified electrician for installation.
