Eaton KLV-24UPP-F armario de distribución multimedia, empotrar, 24 módulos, puerta blanca 178800

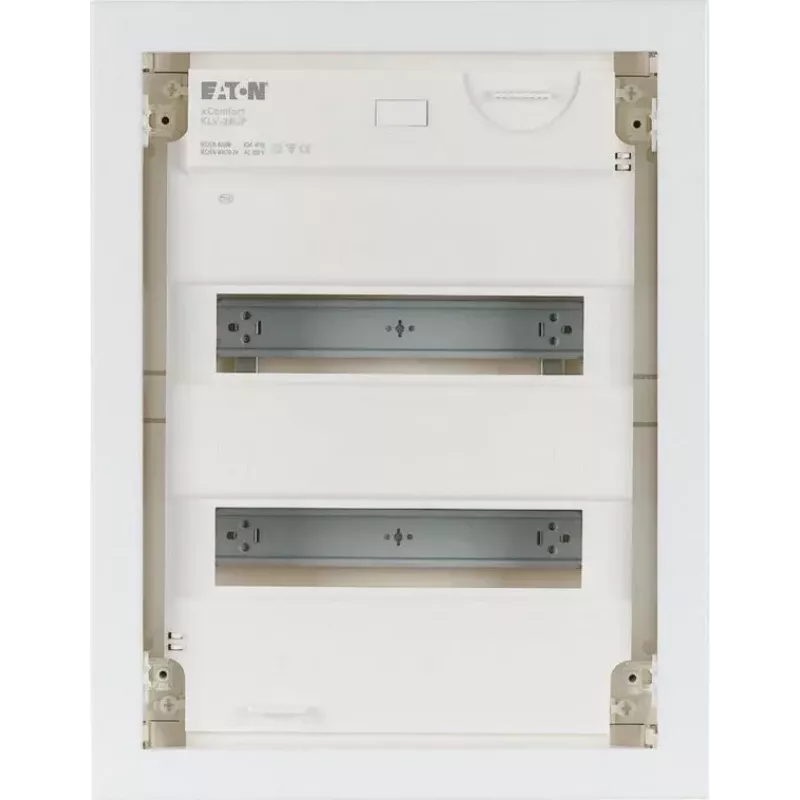

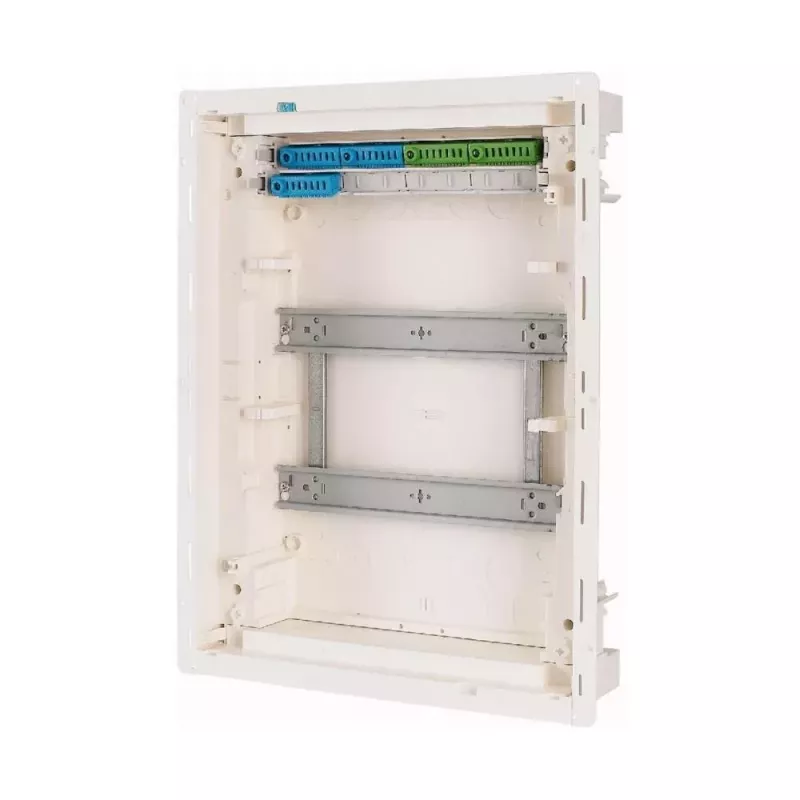

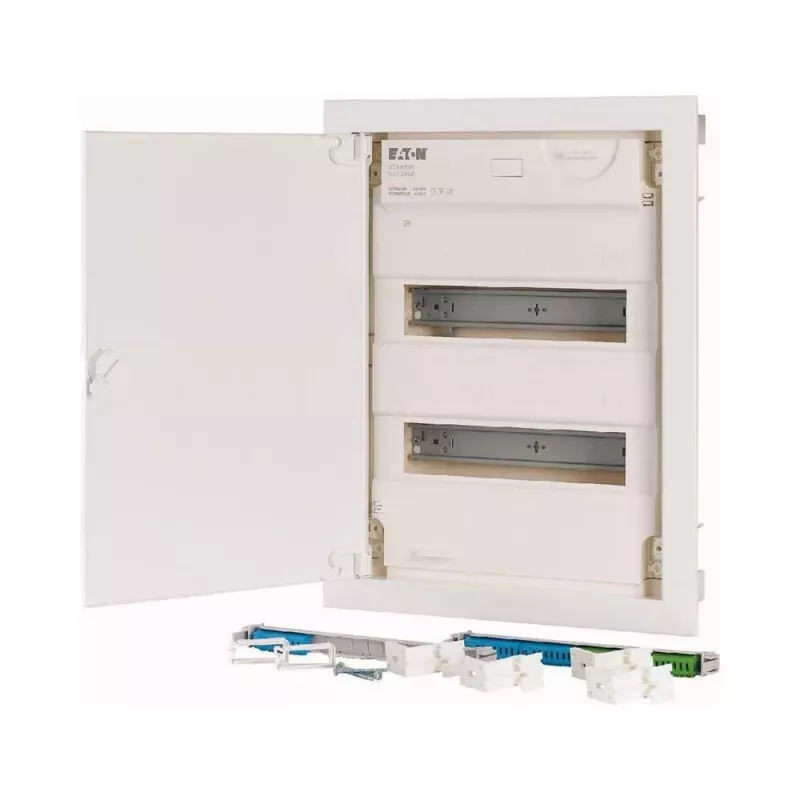

The Eaton KLV-24UPP-F is a multimedia distribution board designed for flush-mounted installation in residential, office, and small commercial buildings. Its integrated multimedia field provides a dedicated space for data and communication equipment, while the 24-module capacity (2 rows of 12 modules each) offers ample room for circuit breakers and other modular devices.

Advantages

The board features a robust plastic housing with a steel sheet door finished in white (RAL 9016), ensuring durability and a clean appearance. Pre-punched cable entries at the top and bottom simplify wiring, and included N and PE terminal blocks facilitate safe and efficient installation.

Suitable for

• Residential electrical distribution
• Office and small commercial buildings
• Integration of multimedia and data equipment

Key specifications

• Flush-mounted installation
• 24 standard modules (2 rows x 12 modules)
• 1 multimedia field
• Rated voltage: 400 V AC
• Rated current: 63 A
• Protection class: IP30
• Housing material: plastic (polystyrene)
• Door material: steel sheet, white (RAL 9016)
• Installation depth: 97 mm
• Cable entry: top and bottom, pre-punched
• Includes N and PE terminal blocks

Recommendations

Combine with Eaton modular devices and multimedia components to create a complete, organized distribution solution that meets modern electrical installation standards.
