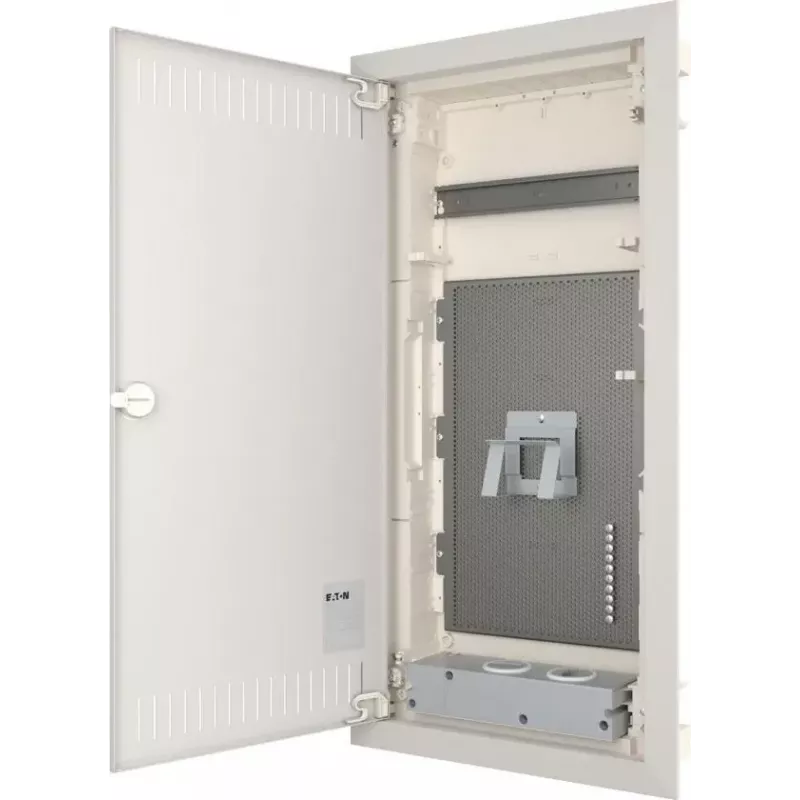

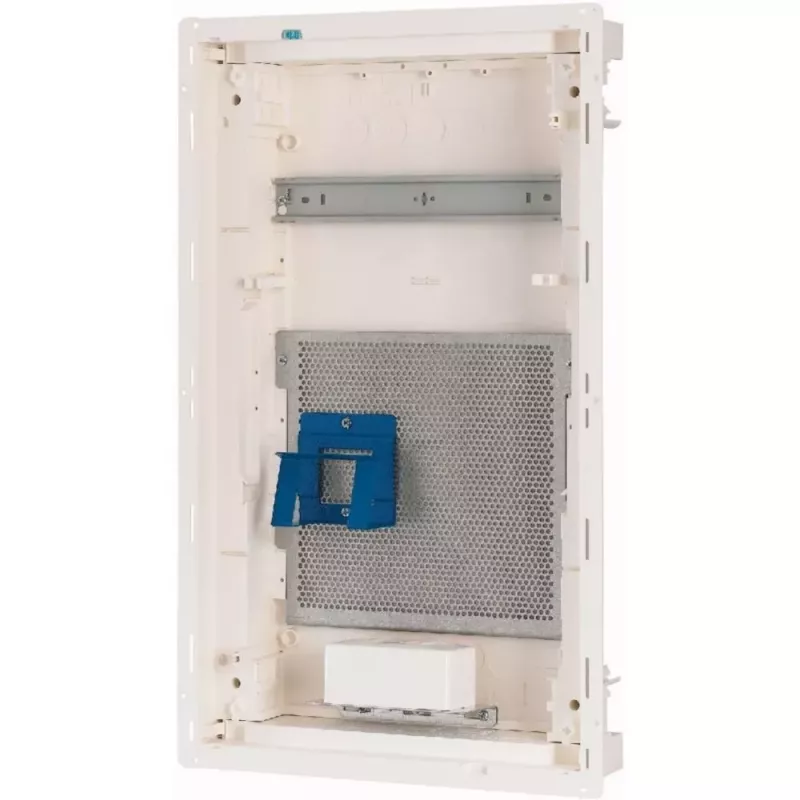

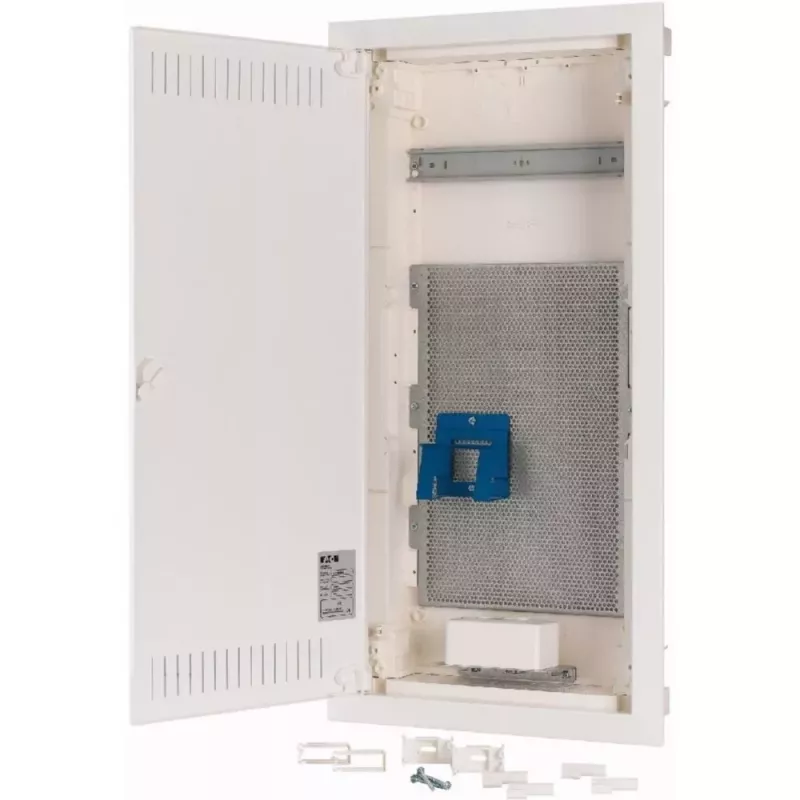

Eaton KLV-48HWM-F armario de distribución empotrado, 48 módulos, 4 filas, puerta transparente, blanco 178836

Electrical installations in residential, commercial, and light industrial buildings need a distribution board that organizes circuit breakers, residual current devices, and other modular devices safely and accessibly. The Eaton KLV-48HWM-F provides a 48-module-unit enclosure with four rows, allowing a high density of devices in a compact footprint. The transparent door lets you inspect the status of installed devices without opening the panel, while the white RAL 9016 finish blends with modern interiors.

Who is it for

Electricians and panel builders who install or upgrade distribution systems in homes, offices, shops, and small industrial facilities. It suits projects that require a flush-mounted board with ample space for modular devices and a clean, neutral appearance.

Main features

• 48 module units (12 per row) across four rows for flexible configuration
• Flush-mounted design for seamless integration into walls
• Transparent door with 180° opening angle for easy access and visual checks
• Plastic enclosure, halogen-free, in white RAL 9016
• Pre-punched knockouts for cable entry on multiple sides
• Includes N and PE terminal blocks for quick wiring
• Rated insulation voltage 400 V AC, impact resistance IK05
• Operating temperature range -5 to +40 °C

Specifications

• Mounting type: Flush-mounted
• Number of module units: 48
• Number of rows: 4
• Protection class: IP30
• Material: Plastic
• Colour: White (RAL 9016)
• Door type: Transparent
• Rated insulation voltage: 400 V AC
• Glow wire test temperature: 850 °C
• Halogen-free: Yes
• Terminal blocks included: N and PE terminals
• Standards: VDE, CE
• Application area: Residential, Commercial, Light Industrial
• Cable entry: Pre-punched knockouts
• Depth of flush mounting: 90 mm
• Door opening angle: 180°
• Operating temperature range: -5 to +40 °C
• Impact resistance: IK05

Tips

Plan the arrangement of devices before installation to make the best use of the four rows. Use the transparent door to quickly verify breaker status during routine checks. For surface mounting, consider the AP variant if available.
