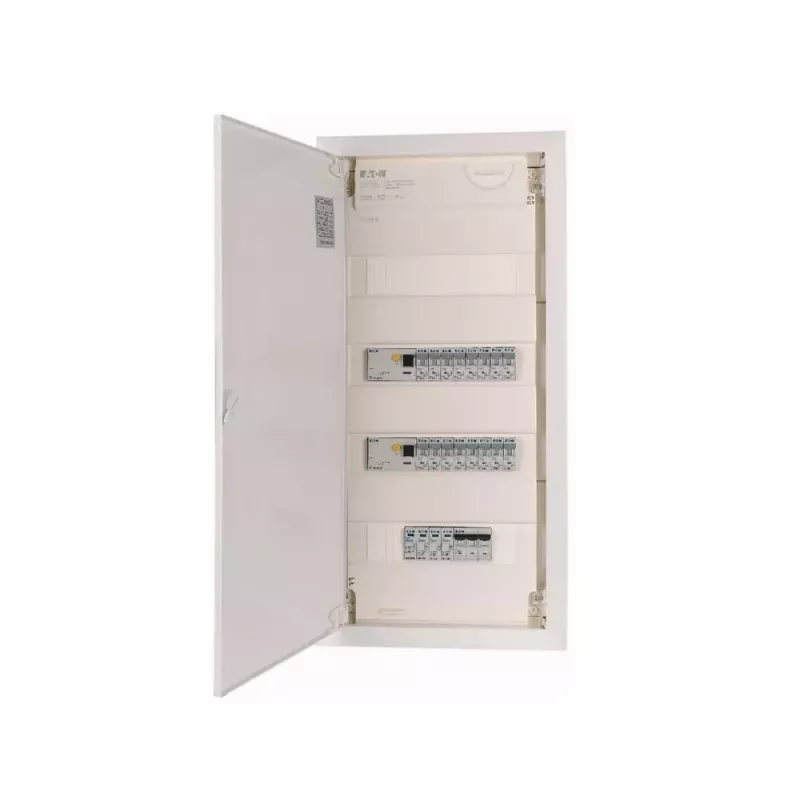

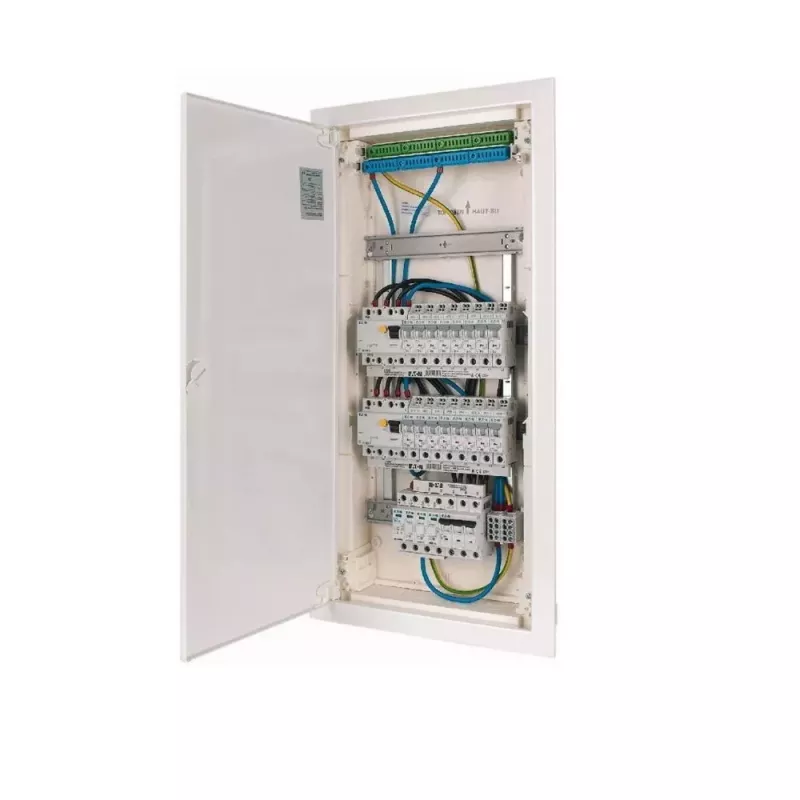

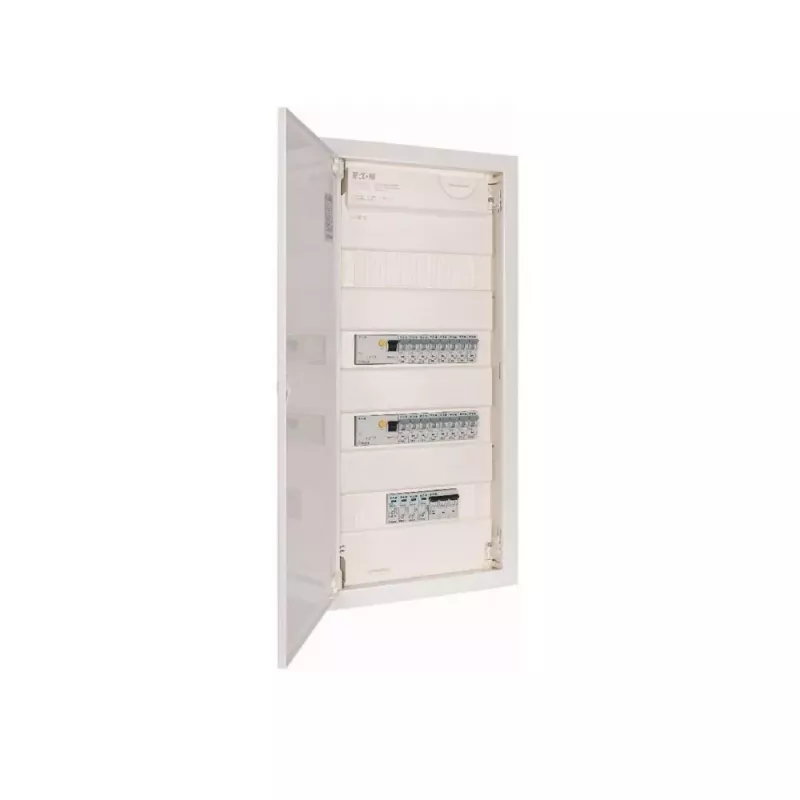

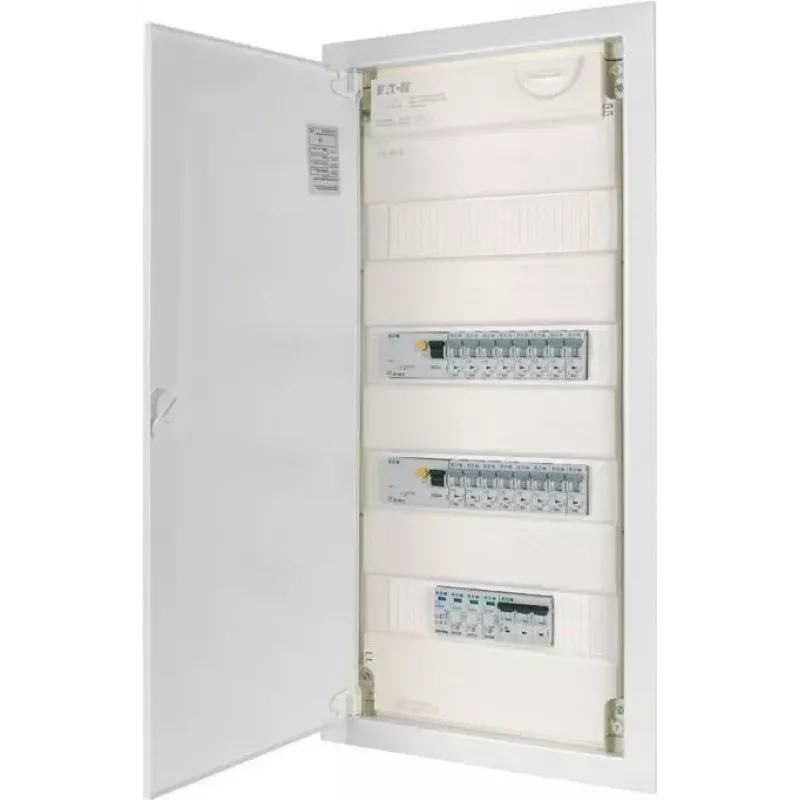

EATON KLV-PW-48-1PXL-1SPD-2PXF-16PLI placa de distribución prefabricada de 4 filas, 48 módulos, IP30, blanco

Electricians and panel builders needing a ready-to-install power distribution solution for residential or light commercial buildings will appreciate the EATON KLV-PW-48-1PXL-1SPD-2PXF-16PLI. This surface-mounted, 4-row distribution board arrives fully pre-wired with a main switch, surge protection, and two residual current devices, saving hours of assembly and ensuring consistent quality.

Key specifications

• Installation type: surface-mounted
• Number of rows: 4 (12 modules per row, 48 total)
• Ingress protection: IP30
• Housing material: plastic
• Door type: transparent
• Main switch: 1x PXL-C40/3 (3-pole, 40 A)
• Surge protective device: 1x Type 2 (P-T2-3NPE-280)
• Residual current devices: 2x PXF-40/4/003-A (4-pole, 40 A, 30 mA, Type A)
• Rated operational voltage: 230/400 V AC
• Rated current (max.): 63 A
• Colour: white (RAL 9016)
• Standards compliance: IEC/EN 61439-3
• PE/N terminals: included
• Cable entry: top and bottom knockouts
• Operating temperature: -5 to +40 °C

Why choose it

This distribution board eliminates the complexity of sourcing and wiring individual components. The pre-installed protection devices are matched for reliable performance, and the transparent door allows quick visual inspection of breaker status. Its compact plastic enclosure is easy to mount and maintain, making it a practical choice for both new installations and retrofits.

Ideal use cases

• Residential electrical distribution in apartments and houses
• Small commercial spaces such as offices, shops, and workshops
• Sub-distribution in larger buildings where a pre-wired solution saves time

Good to know

The board is supplied with a main switch, surge protection, and two RCDs, but additional circuit breakers can be added to the remaining module spaces. Always ensure installation is carried out by a qualified electrician in accordance with local regulations.
