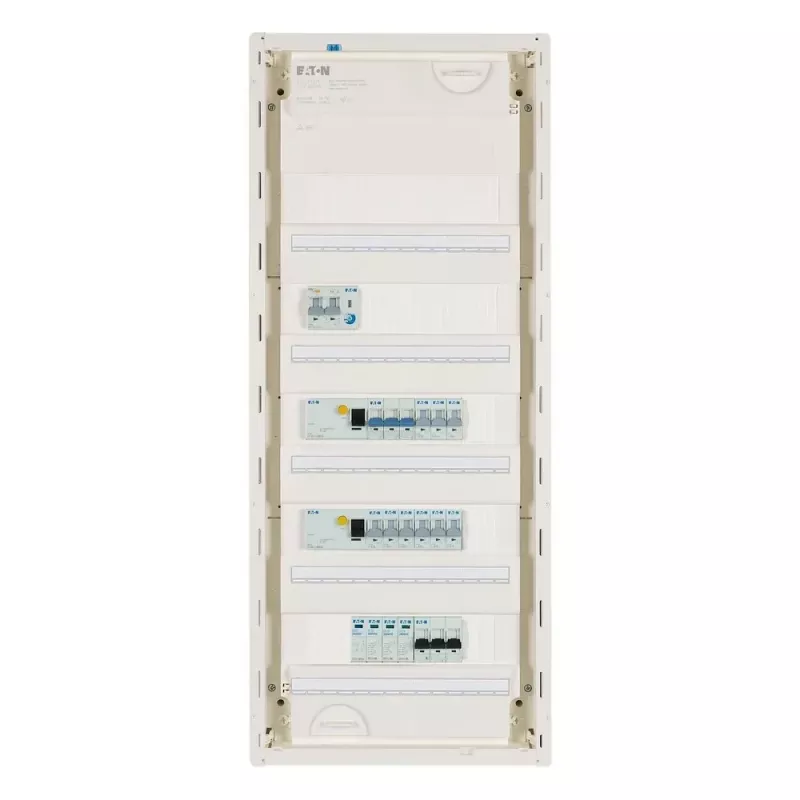

Eaton KLV-PW-60-2PXL-2PXF-EP-194711-5B 9PLI-1AFDD Cuadro de distribución compacto 5 filas

The Eaton KLV-PW-60-2PXL-2PXF-EP-194711-5B 9PLI-1AFDD is a high-quality compact distribution board designed for flush-mounted installation. With 5 rows and 60 module units (12 per row), it provides ample space for organizing electrical circuits in residential and commercial buildings. The transparent door allows easy visual inspection, while the included PE/N terminals simplify wiring. This board meets IEC/EN 61439-3 standards and features a glow wire test of 850°C for enhanced safety.

Advantages

Space-saving design with 60 module units in a compact form factor. Transparent door for quick status checks. Reversible door hinge for flexible installation. Pre-punched knockouts at top and bottom for easy cable entry. High-quality plastic enclosure with IP30 protection.

Suitable for

• Residential electrical distribution
• Commercial building installations
• Flush-mounted applications
• Systems requiring up to 63 A rated current

Key specifications

• Product Type: Compact Distribution Board
• Installation: Flush-mounted
• Number of Rows: 5
• Module Units: 60 (12 per row)
• Protection Class: IP30
• Material: Plastic
• Door: Transparent
• PE/N Terminals: Included (Plug-in type)
• Rated Insulation Voltage: 400 V AC
• Rated Current: Up to 63 A
• Glow Wire Test: 850 °C
• Standards: IEC/EN 61439-3
• Colour: White (RAL 9016)
• Installation Depth: 90 mm
• Cable Entry: Top and Bottom (Pre-punched knockouts)
• PE Terminals: 2 x 21 connections
• N Terminals: 2 x 21 connections
• Door Hinge Side: Reversible

Recommendations

For optimal performance, ensure proper installation by a qualified electrician. This distribution board is designed for indoor use only. Always follow local electrical codes and regulations.
