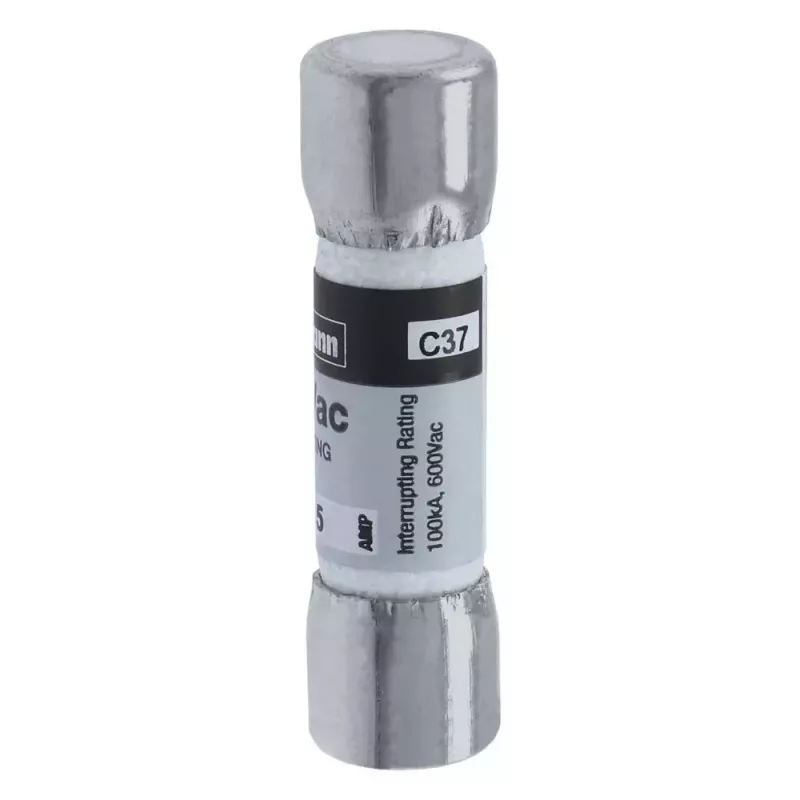

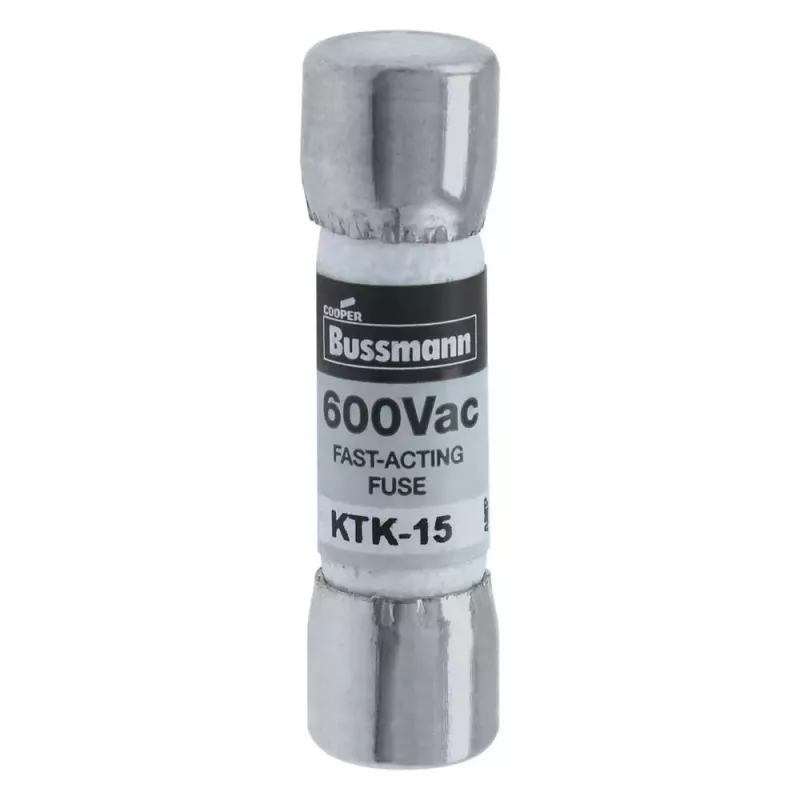

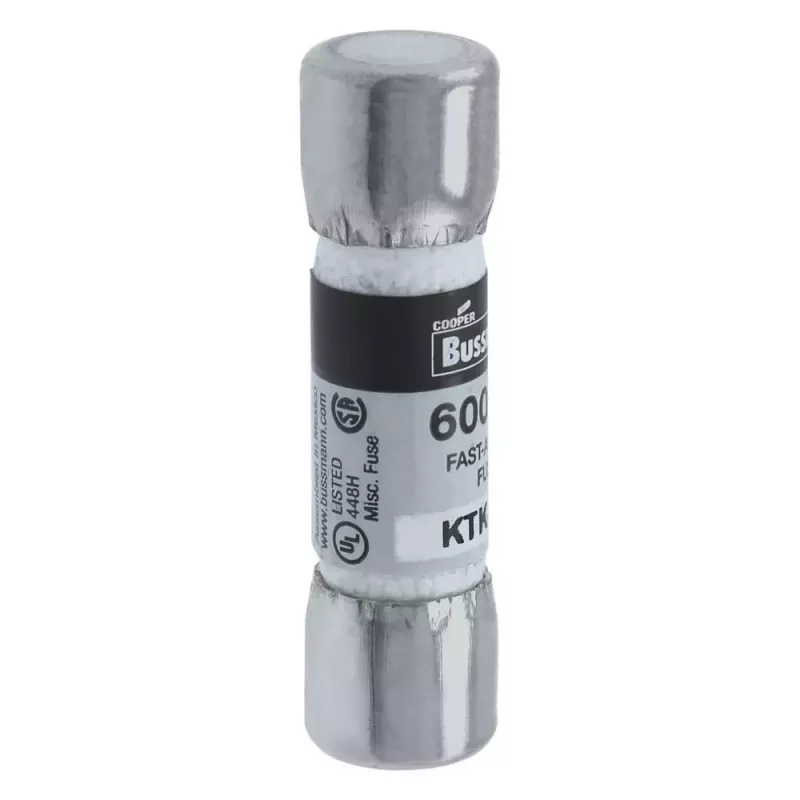

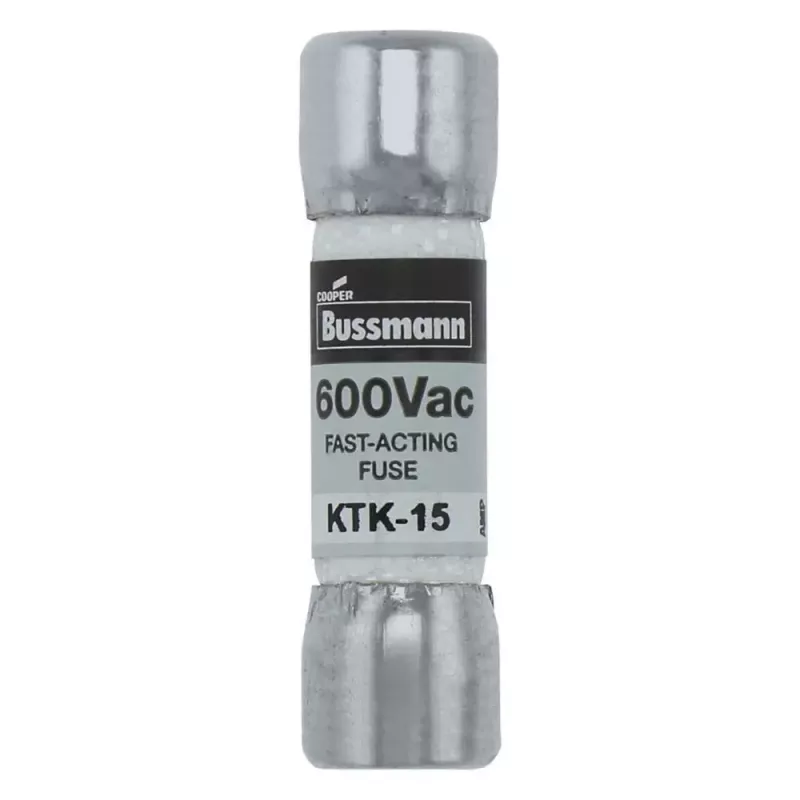

Eaton KTK-15 fusible de cartucho, 15 A, 600 V AC/DC, ultrarrápido, 10 mm x 38 mm, pack de 10

This Eaton KTK-15 cartridge fuse delivers reliable branch circuit protection with a super fast-acting response, rated for 15 A and 600 V AC/DC. Its compact 10 mm x 38 mm size and high interrupting ratings make it a dependable choice for control circuits, lighting, and small motor protection.

Advantages

Super fast-acting characteristic ensures rapid interruption of overcurrents, protecting sensitive equipment. The melamine body and nickel-plated brass end caps provide durability and corrosion resistance. With a 100 kA interrupting rating at 600 V AC, it safely handles high fault currents.

Suitable for

• Branch circuit protection
• Control circuits
• Lighting systems
• Small motor protection

Key specifications

• Current rating: 15 A
• Voltage rating: 600 V AC/DC
• Characteristic: Super fast-acting (FF)
• Dimensions: 10 mm diameter x 38 mm length
• Interrupting rating: 100 kA @ 600 V AC, 20 kA @ 300 V DC
• Body material: Melamine
• End cap material: Nickel-plated brass
• Mounting type: Holder/Clip
• Operating temperature: -40°C to +85°C
• Standards: UL Listed, CSA Certified
• Pack quantity: 10 pieces

Recommendations

Ideal for industrial and commercial applications where space is limited and fast fault clearing is critical. Always verify compatibility with your fuse holder and circuit requirements.
