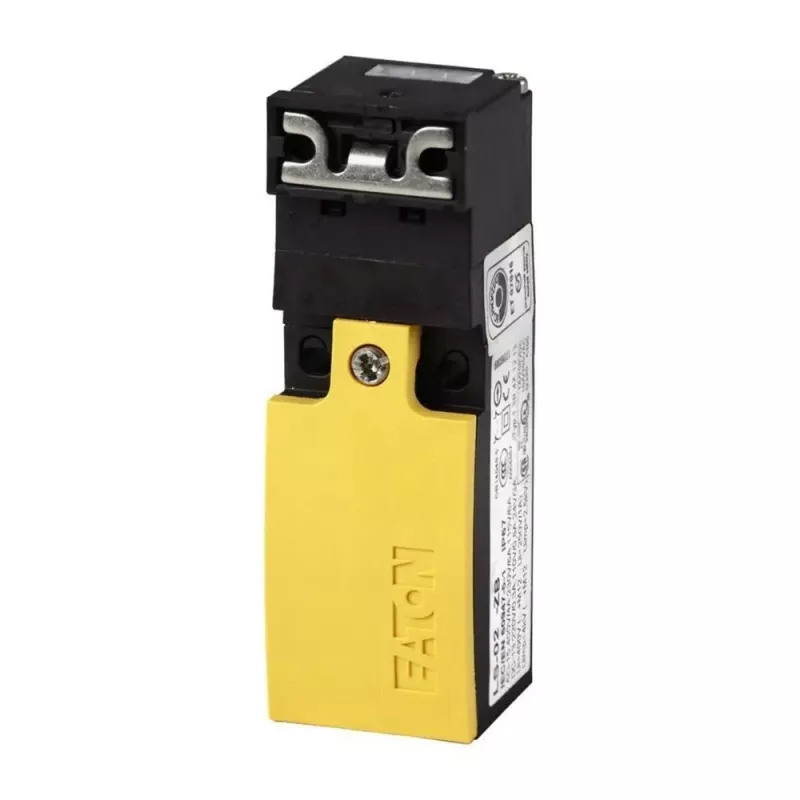

Eaton LS-02-ZB final de carrera, palpador, 1NO+1NC, amarillo 106817

The Eaton LS-02-ZB stands out as a compact yet robust limit switch from the LS-Titan series, delivering reliable position sensing in demanding industrial environments. Its snap-action plunger actuator provides crisp, repeatable switching, while the yellow thermoplastic housing ensures high visibility on the machine.

Highlights

• Plunger actuator with snap-action switching for precise control
• 1 normally open (NO) and 1 normally closed (NC) contact for versatile circuit design
• Durable thermoplastic housing rated IP66/IP67 for protection against dust and water
• Wide operating temperature range from -25 to +70 °C
• Long mechanical life exceeding 15 million operations

In daily use

Install the LS-02-ZB on conveyor systems, machine guards, or automated equipment where end-of-travel detection is critical. The screw terminals and M20 cable entry allow straightforward wiring, and the surface-mount design fits easily into existing setups. With a rated operational current of 6 A at 230 V AC (AC-15) and 0.5 A at 24 V DC (DC-13), it handles typical control loads without external relays.

Full specifications

• Product type: Limit switch
• Series: LS-Titan
• Actuator type: Plunger
• Contact configuration: 1 NO + 1 NC
• Switching principle: Snap-action
• Housing material: Thermoplastic
• Protection rating: IP66, IP67
• Rated operational voltage: 250 V AC / 250 V DC
• Rated operational current (AC-15): 6 A at 230 V
• Rated operational current (DC-13): 0.5 A at 24 V
• Connection type: Screw terminals
• Cable entry: 1 x M20
• Operating temperature range: -25 to +70 °C
• Mechanical life: > 15 million operations
• Electrical life: > 5 million operations
• Mounting type: Surface mount

Final note

The LS-02-ZB combines proven LS-Titan reliability with a bright yellow housing for quick identification, making it a practical choice for OEMs and maintenance teams alike.
