Eaton LS-Titan accionador de rodillo ajustable LS-XRLA40, 1 ud. 266129

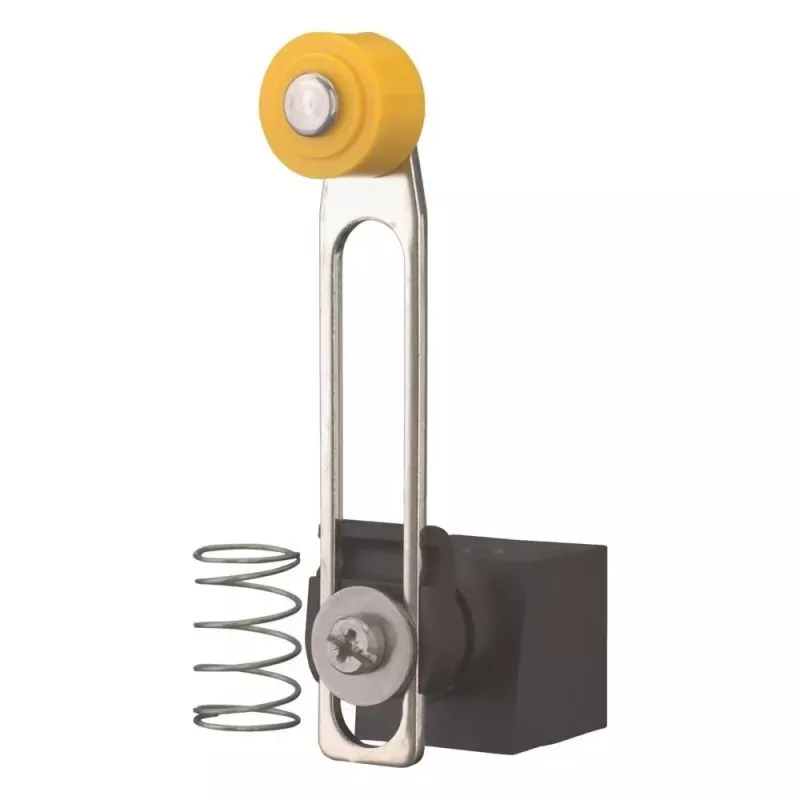

In automated production lines and machine guarding systems, precise position detection is critical. The Eaton LS-XRLA40 adjustable roller plunger actuator is a front-mounting attachment for Eaton LS series limit switches, enabling reliable end-stop sensing and position feedback. The roller is made of thermoplastic, while the plunger is metal, offering a durable combination for industrial environments. The adjustable plunger length allows fine-tuning of the actuation point to match specific mechanical setups.

Key specifications

• Actuator type: Adjustable roller plunger
• Roller diameter: 19 mm
• Roller width: 6 mm
• Roller material: Thermoplastic
• Plunger material: Metal
• Adjustment feature: Adjustable plunger length/position
• Mounting type: Front mounting to limit switch head
• Compatibility: Eaton LS series limit switches
• Operating temperature range: -25 to +70 °C
• Protection class when mounted: IP66, IP67
• Standards compliance: IEC/EN 60947-5-1
• Unit quantity: 1 piece

Why choose it

The adjustable design allows precise adaptation to varying actuation distances, reducing setup time and ensuring consistent switching. Its robust construction suits demanding industrial applications, and the front mounting simplifies integration with existing LS series switches.

Ideal use cases

• Position detection on conveyor systems
• End-stop sensing in machine tools
• Safety interlock actuation in guarding systems
• Automated assembly line limit switching

Good to know

The actuator is supplied as a single piece and is intended for use with Eaton LS-Titan limit switches. It maintains its protection ratings when properly mounted, ensuring reliable operation in harsh environments.
