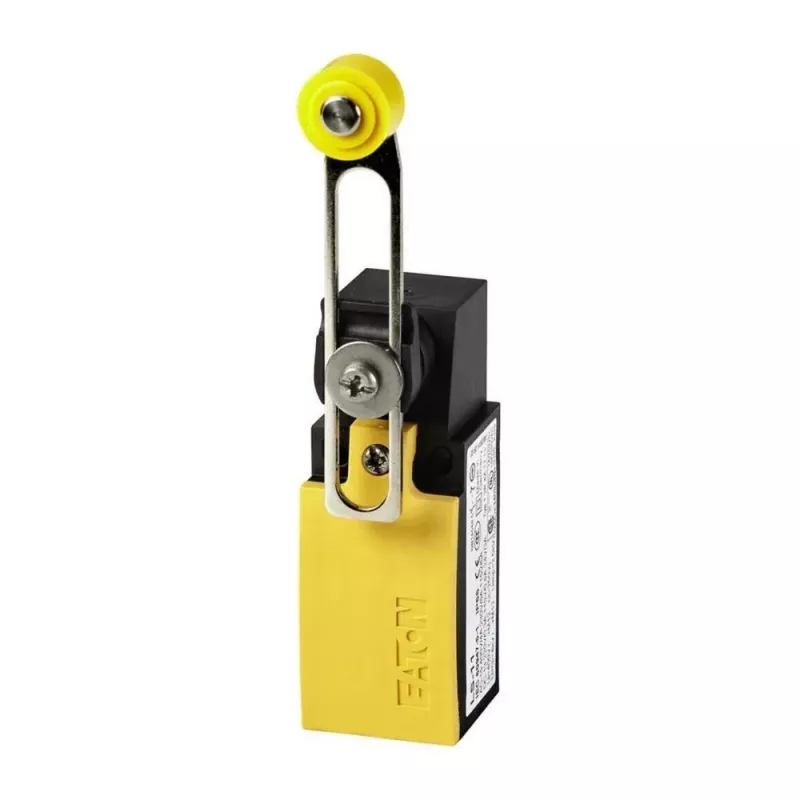

Eaton LS-Titan final de carrera LS-S11S/RLA, palanca giratoria, función de pulsación, 1NO+1NC, 400V AC/4A, IP67, metal 106803

In automated machinery and conveyor systems, position detection must remain reliable even when exposed to dust, moisture, and mechanical stress. The Eaton LS-Titan LS-S11S/RLA limit switch provides a rugged solution for such demanding environments, combining a die-cast metal housing with IP67 sealing to keep contaminants out. Its rotary lever actuator with momentary spring-return action delivers precise signalling for machine control and safety interlock applications.

Who is it for

This limit switch is intended for machine builders, system integrators, and maintenance engineers who need a robust position sensor for industrial automation, packaging equipment, material handling, and similar applications where durability and consistent switching are critical.

Main features

• Rotary lever actuator with momentary (spring-return) operation
• Contact configuration: 1 normally open (NO) and 1 normally closed (NC)
• Rated operational voltage: 400 V AC; rated operational current: 4 A (AC-15)
• Ingress protection: IP67, suitable for dusty and wet environments
• Housing material: die-cast metal for high mechanical strength
• Connection type: screw terminals; cable entry: M20 x 1.5
• Operating temperature range: -25 to +70 °C
• Long mechanical life: over 10 million operations
• Series: LS-Titan; conforms to IEC/EN 60947-5-1

Specifications

• Actuator type: rotary lever
• Actuator action: momentary (spring return)
• Contact configuration: 1 NO + 1 NC
• Rated operational voltage (Ue): 400 V AC
• Rated operational current (Ie): 4 A (AC-15, 400 V)
• Ingress protection rating: IP67
• Housing material: die-cast metal
• Connection type: screw terminals
• Cable entry: M20 x 1.5
• Operating temperature range: -25 to +70 °C
• Mechanical life: > 10 million operations
• Electrical life: > 1 million operations
• Series: LS-Titan
• Standards: IEC/EN 60947-5-1
• Mounting type: surface mount

Tips

When installing, ensure the actuator lever is aligned with the moving part to avoid side loading. Use a suitable M20 cable gland to maintain the IP67 rating. For high-cycling applications, periodically check the actuator and terminal tightness.
