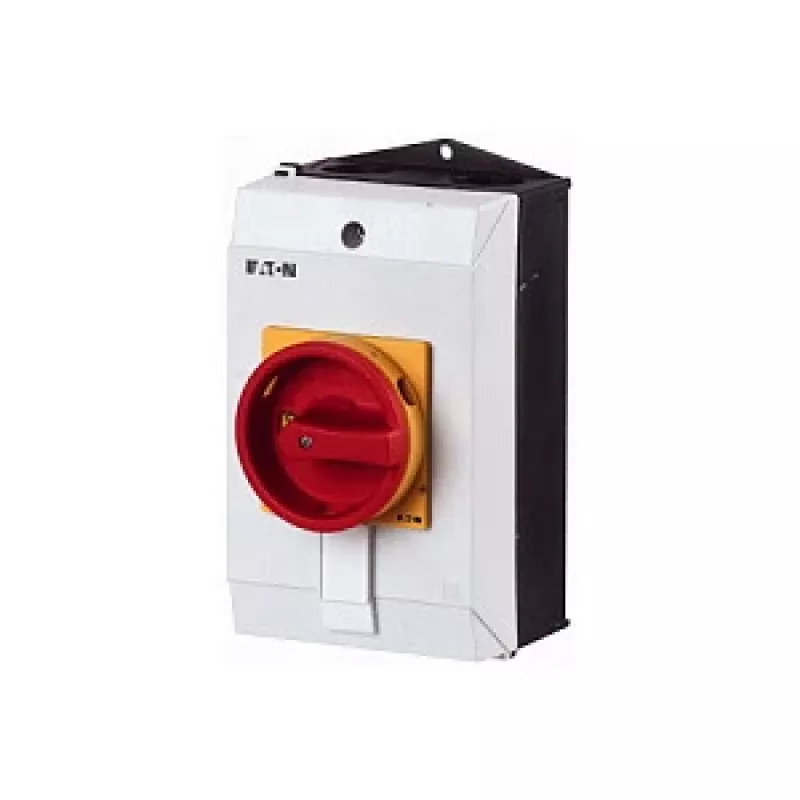

Eaton P1-25/I2/SVB Interruptor principal 3 polos, 25 A, 690 V, IP65, empuñadura roja/amarilla, montaje en superficie, función de parada de emergencia

The Eaton P1-25/I2/SVB stands apart from ordinary disconnect switches by combining a robust 3-pole main switch function with an integrated emergency stop capability in the 0-position, all housed in a compact IP65 enclosure. Built for industrial control and safety applications, this switch delivers reliable isolation and switching for motors and circuits up to 25 A, with a clear red handle and yellow front plate for high visibility and intuitive operation.

Highlights

• 3-pole main switch with ON-OFF function and emergency stop in 0-position
• Rated uninterrupted current 25 A, operational voltage up to 690 V AC
• IP65 protection: dust-tight and protected against water jets
• Red handle and yellow front plate for easy identification and safety
• Surface mounting design for straightforward installation
• Complies with IEC/EN 60947 and VDE 0660 standards

In daily use

The P1-25/I2/SVB is ideal for machine control panels, conveyor systems, and industrial equipment where a reliable main disconnect and emergency stop are required. The switch's 90° switching angle provides a clear visual indication of the ON/OFF state, while the robust terminals accept conductors up to 6 mm² (or two 2.5 mm²) for flexible wiring. Its compact footprint and surface mounting make it easy to integrate into existing enclosures or as a standalone safety device.

Full specifications

• Switch type: Main switch / Disconnect switch
• Function: ON-OFF (2 positions)
• Number of poles: 3
• Rated uninterrupted current (Iu): 25 A
• Rated operational voltage (Ue): 690 V AC
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated power AC-23A (400V): 11 kW
• Rated power AC-23A (690V): 15 kW
• Rated power AC-3 (400V): 7.5 kW
• Mounting type: Surface mounting (enclosed)
• Degree of protection: IP65
• Handle colour: Red
• Front plate colour: Yellow
• Switching angle: 90°
• Terminal capacity: 1 x 6 mm² or 2 x 2.5 mm²
• Standards: IEC/EN 60947, VDE 0660
• Short-circuit breaking capacity (Icn): 0.8 kA at 400 V

Final note

With its integrated emergency stop and high IP rating, the Eaton P1-25/I2/SVB is a dependable choice for safety-critical industrial switching.
