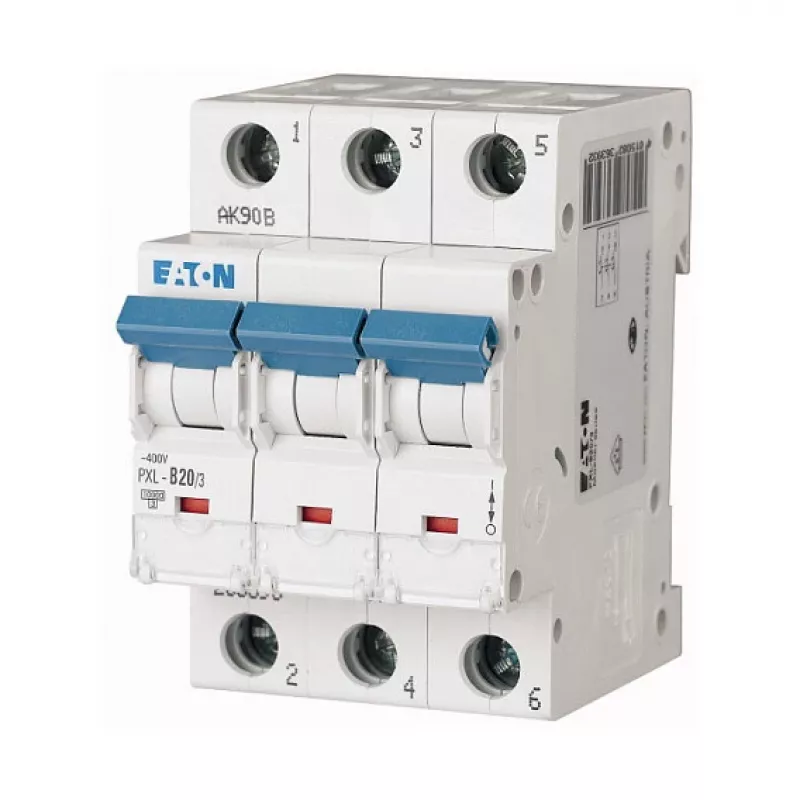

Eaton PXL-C20/3 Interruptor automático (MCB) 3 polos 20 A curva C 10 kA

Electrical faults and overloads can cause serious damage to wiring and equipment, leading to costly downtime and safety hazards. The Eaton PXL-C20/3 Miniature Circuit Breaker (MCB) provides reliable protection for three-phase circuits against overload and short-circuit currents, ensuring continuous operation and safety in residential, commercial, and industrial installations.

Who is it for

This MCB is ideal for electricians, panel builders, and facility managers who need a dependable, compact protection device for three-phase distribution boards. It suits applications with moderate inrush currents, such as lighting circuits, socket outlets, and small motors, where a C-curve tripping characteristic is required.

Main features

• 3-pole design for three-phase circuits, rated at 20 A with C tripping characteristic.
• High breaking capacity of 10 kA according to EN 60898-1, providing robust short-circuit protection.
• DIN rail mounting (EN 60715) for quick and secure installation in standard distribution boards.
• Compact width of only 3 modules (52.5 mm), saving space in enclosures.
• Energy limiting class 3 ensures excellent current limitation, reducing thermal and mechanical stress on downstream components.
• Screw terminals accept solid, stranded, and flexible conductors up to 25 mm² (solid/stranded) or 16 mm² (flexible), ensuring versatile wiring options.
• Wide operating temperature range from -25 °C to +50 °C for reliable performance in harsh environments.
• Complies with EN 60898-1 and IEC 60898-1 standards, guaranteeing safety and quality.

Specifications

• Number of poles: 3
• Rated current: 20 A
• Tripping characteristic: C
• Rated voltage: 230/400 V AC
• Rated short-circuit breaking capacity (Icn): 10 kA
• Frequency: 50/60 Hz
• Mounting type: DIN rail (EN 60715)
• Degree of protection: IP20 (terminals), IP40 (with cover)
• Terminal type: Screw terminals
• Terminal capacity (solid/stranded): 1-25 mm²
• Terminal capacity (flexible): 1-16 mm²
• Standard: EN 60898-1, IEC 60898-1
• Energy limiting class: 3
• Rated insulation voltage (Ui): 440 V
• Rated impulse withstand voltage (Uimp): 4 kV
• Overvoltage category: III
• Pollution degree: 2
• Operating temperature: -25 to +50 °C
• Module width: 3 modules (52.5 mm)

Tips

When selecting an MCB, ensure the tripping curve matches the load type: C-curve is suitable for general lighting and socket circuits with moderate inrush currents. Always verify the short-circuit current at the installation point does not exceed the breaker's breaking capacity. For enhanced protection, consider adding a residual current device (RCD) upstream.
