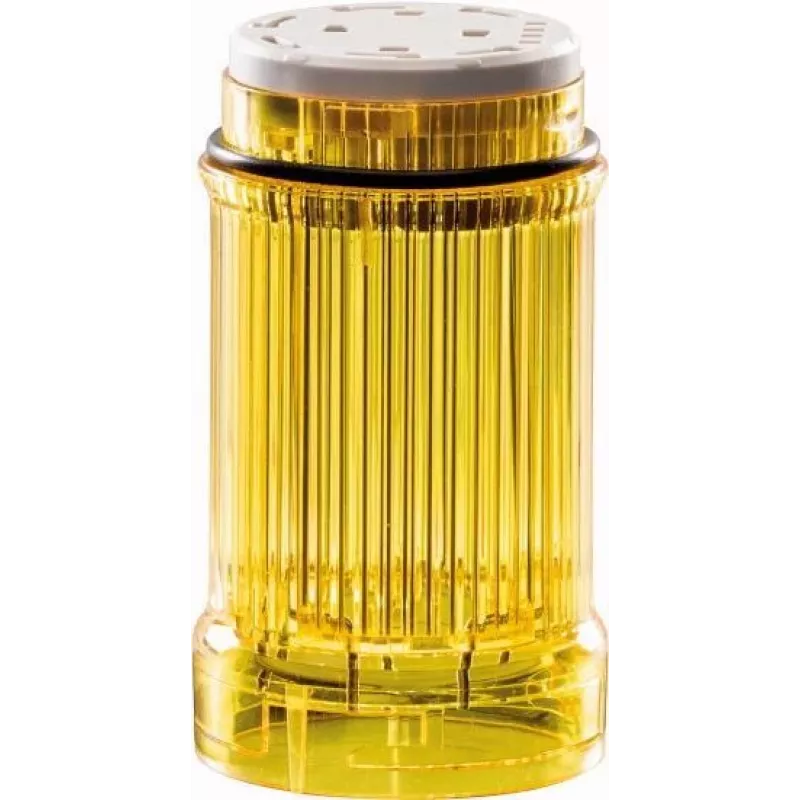

Eaton SL4-L230-Y elemento fijo de torre de señalización LED amarillo 230V AC 171329

Machine status is invisible until something goes wrong. The Eaton SL4-L230-Y fixed yellow LED element solves that by giving a clear, continuous visual signal for 230 V AC control circuits. It mounts directly onto an SL4 signal tower base, so operators can see a machine's state from across the floor without checking a panel.

Who is it for

Maintenance engineers and panel builders who need a reliable, energy-efficient indicator for industrial machines. It suits assembly lines, packaging equipment, and conveyors where a steady yellow light means 'attention' or 'standby'.

Main features

• Permanent yellow LED light with a 40 mm diameter lens for high visibility.
• Operates on 230 V AC and draws only 15 mA, reducing energy costs.
• IP66-rated polycarbonate housing and lens withstand dust and water jets.
• Screw terminals allow quick, secure wiring without special tools.
• Modular design fits any Eaton SL4 signal tower base.

Specifications

• Light function: Permanent light (continuous)
• Light source: LED
• Light colour: Yellow
• Operating voltage: 230 V AC
• Current consumption: 15 mA
• Diameter: 40 mm
• Protection rating: IP66
• Operating temperature: -25 to +50 °C
• Housing material: Polycarbonate (PC)
• Lens material: Polycarbonate (PC)
• Connection type: Screw terminals
• Mounting: Modular (for SL4 signal towers)
• LED lifetime: > 100,000 hours
• Series: Eaton SL4

Tips

Combine this yellow element with red and green elements on a single tower to create a full traffic-light status indicator. Use a 230 V AC supply directly, as no transformer is needed.
