Eaton SL4-L24-G elemento de baliza LED, luz fija verde, 24V AC/DC 171314

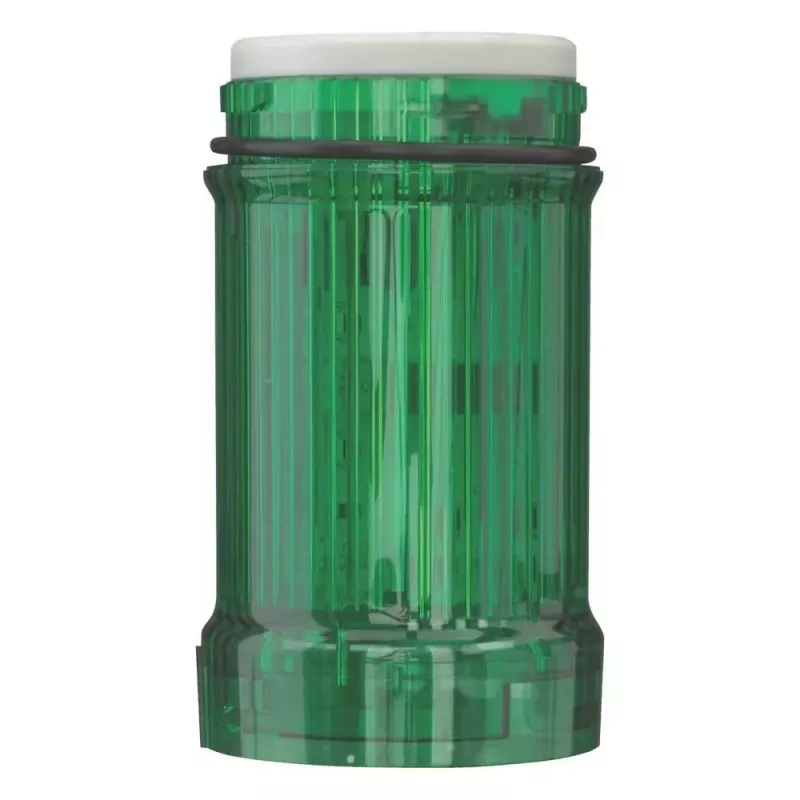

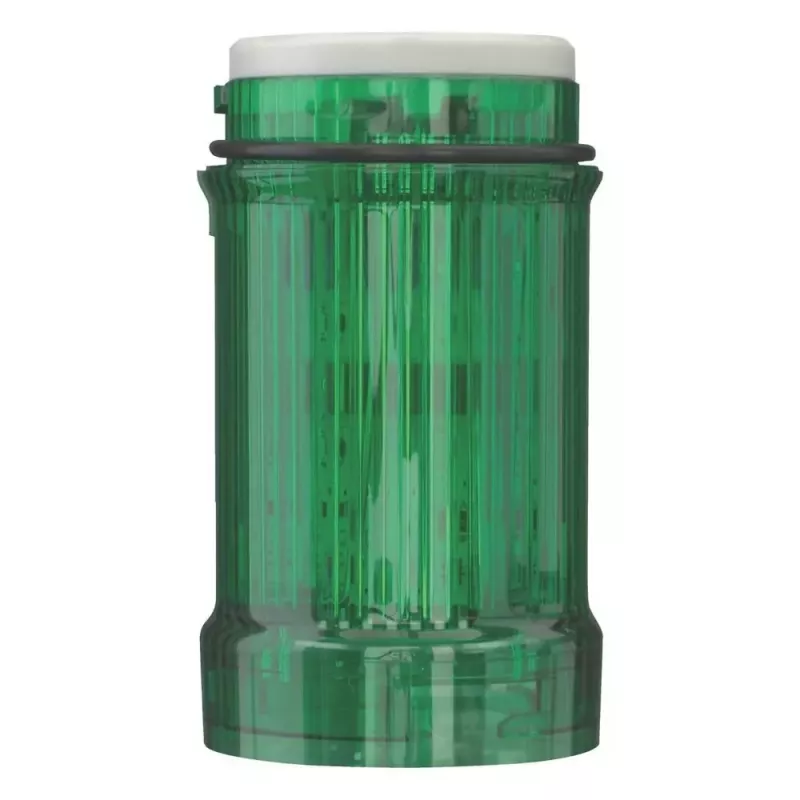

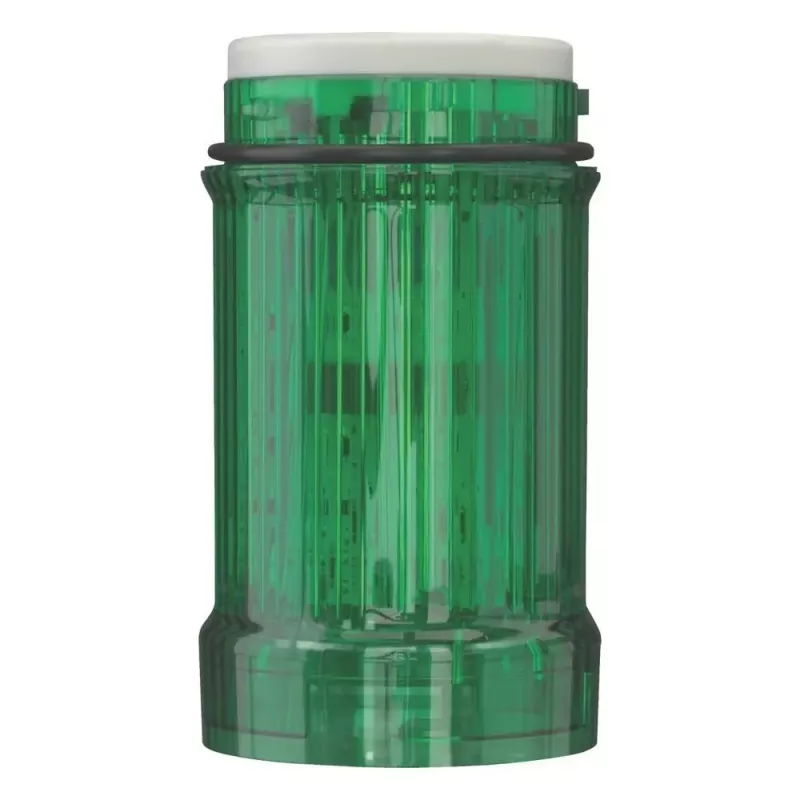

The Eaton SL4-L24-G is a green LED light element for SL4 signal towers, designed for fixed (continuous) illumination. Its bayonet mounting allows quick installation without tools, and the LED light source provides a service life exceeding 100,000 hours. With an IP66 rating and a polycarbonate housing, it is suitable for demanding industrial environments.

Highlights

• Fixed green LED light element for Eaton SL4 signal towers
• 24V AC/DC operating voltage, 35 mA current consumption
• Bayonet mount for tool-free installation and removal
• Long LED service life of over 100,000 hours
• IP66 protection against dust and water jets

Full specifications

• Product Type: LED Element
• Light Function: Fixed Light
• Light Color: Green
• Operating Voltage: 24V AC/DC
• Current Consumption: 35 mA
• Power Consumption: 0.84 W
• Series Compatibility: Eaton SL4 Signal Towers
• Protection Rating: IP66
• Operating Temperature Range: -25°C to +50°C
• Mounting Type: Bayonet Mount
• Light Source Technology: LED
• Service Life (LED): > 100,000 hours
• Housing Material: Polycarbonate (PC)
• Diameter: 70 mm
• Certifications: CE, UL, cUL
• Supply Voltage Type: AC/DC
• Number of Light Elements: 1

Final note

The Eaton SL4-L24-G is a reliable and durable signaling component for industrial applications, offering quick installation and long-term performance.
