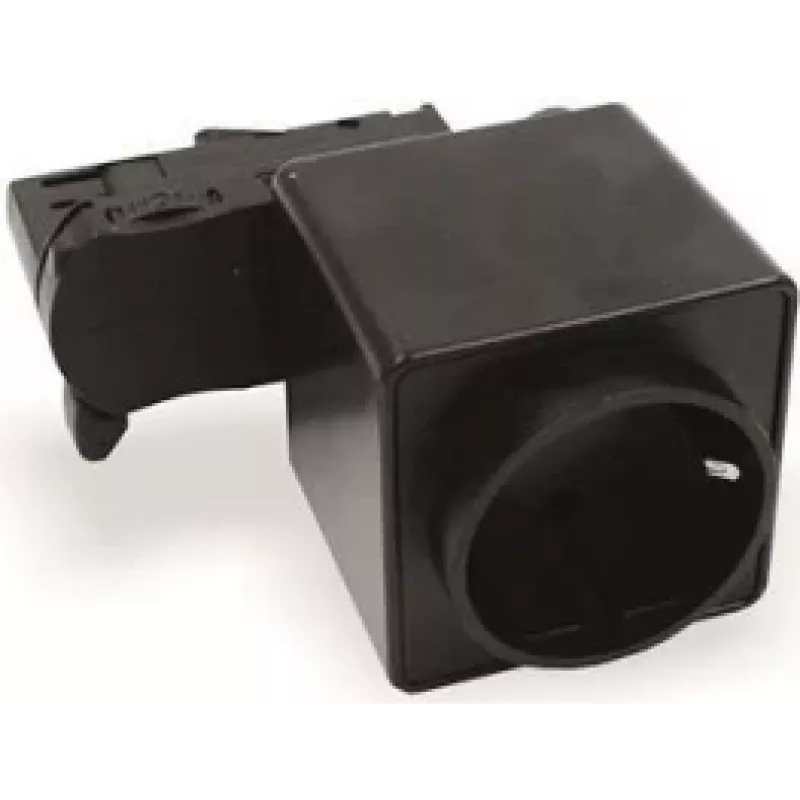

LEUCHTEK LTek LEUCH 279705 toma universal, conmutable de 3 fases, 16 A, negra

Universal socket outlet with selectable 3-phase configuration, supporting single-phase, two-phase, and three-phase operation. Compatible with multiple international plug types including C, E, F, G, I, J, L, N, and O, making it suitable for diverse electrical environments.

Advantages

Selectable phase configuration allows flexible integration into various power systems. Universal compatibility reduces the need for multiple socket types. Screw terminals ensure secure and reliable connections. Thermoplastic housing provides durability.

Suitable for

• Industrial control panels
• Commercial distribution boards
• Laboratory test benches
• International equipment connections

Key specifications

• Socket type: Universal (C, E, F, G, I, J, L, N, O)
• Phase configuration: 3-phase selectable (1-phase, 2-phase, 3-phase)
• Nominal voltage: 250 V AC (single-phase), 400 V AC (three-phase)
• Nominal current: 16 A
• Frequency: 50/60 Hz
• Number of poles: 5-pole (3P+N+PE)
• Connection type: Screw terminals
• Mounting type: Panel mount / built-in
• Housing material: Thermoplastic
• Colour: Black
• Operating temperature: -25 °C to +70 °C

Recommendations

Verify phase selection and wiring before installation. Ensure compatibility with your plug types and voltage requirements.
