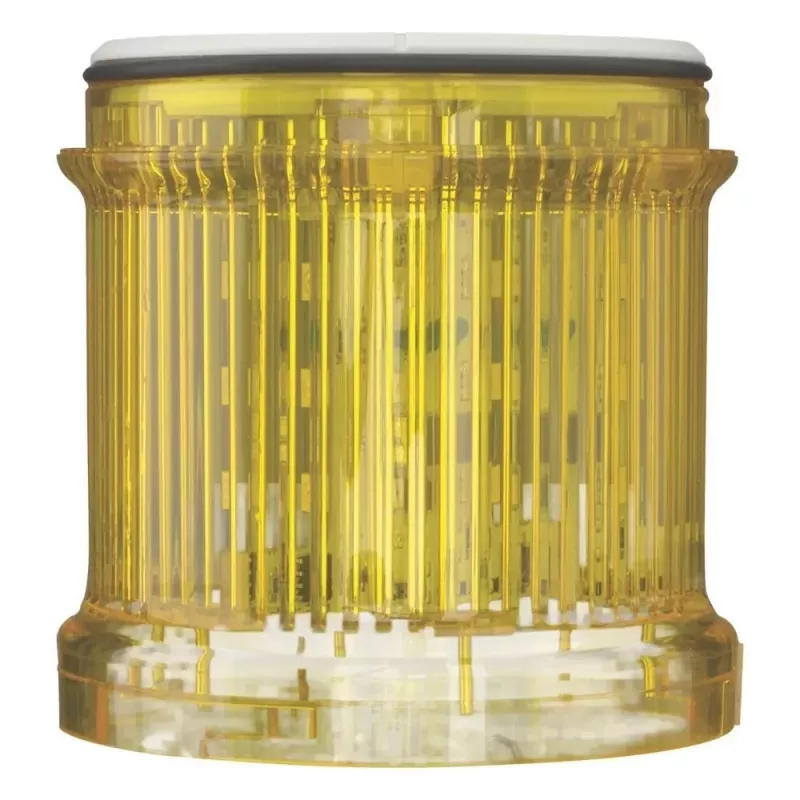

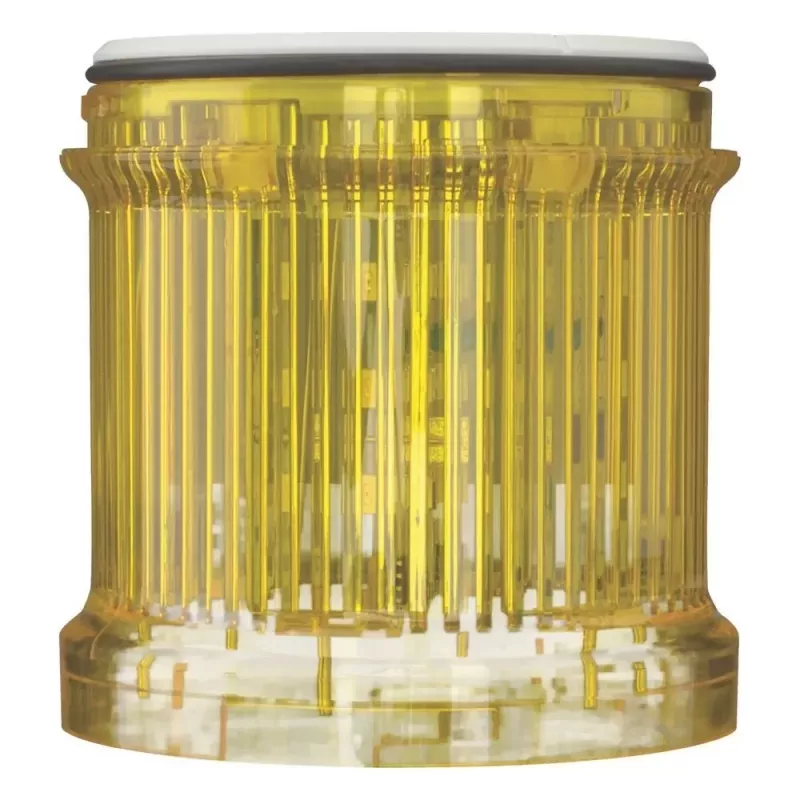

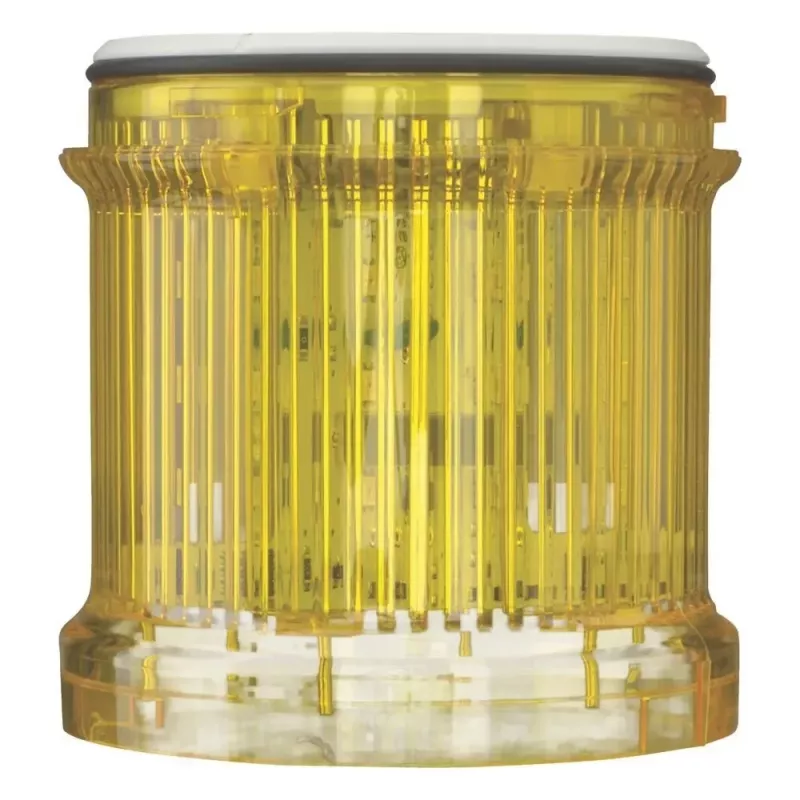

Eaton SL7-L24-Y Elemento de torre de señalización LED amarillo 24 V AC/DC luz fija 171465

The Eaton SL7-L24-Y is a modular LED signal tower element that delivers a bright yellow continuous light for status indication in industrial environments. Unlike many stack lights that require separate bulbs or have limited voltage options, this element operates directly on 24 V AC/DC and uses energy-efficient LED technology with a rated lifetime of over 100,000 hours. Its 70 mm diameter and screw terminal connection allow quick integration into Eaton SL7 signal towers, making it a practical choice for machine builders and maintenance teams.

Highlights

• LED light source with continuous (steady) yellow illumination
• Rated operational voltage: 24 V AC/DC
• Low power consumption: 0.72 W
• IP66 rated for dust and water resistance
• Operating temperature range: -30 to +60 °C

In daily use

This signal element is designed for modular assembly in Eaton SL7 signal towers. The screw terminal connection ensures a secure and straightforward wiring process. The polycarbonate housing provides durability in demanding industrial settings, while the yellow light is clearly visible for status signaling. With a wide operating temperature range, it can be used in both cold storage and hot manufacturing areas.

Full specifications

• Product Type: Signal Tower Element
• Light Source: LED
• Light Type: Continuous Light (Steady)
• Light Color: Yellow
• Rated Operational Voltage: 24 V AC/DC
• Rated Operational Current: 30 mA
• Degree of Protection: IP66
• Ambient Operating Temperature: -30 to +60 °C
• Series: Eaton SL7
• Mounting Type: Modular (for SL7 Signal Towers)
• Housing Material: Polycarbonate (PC)
• LED Lifetime: > 100,000 hours
• Diameter: 70 mm
• Connection Type: Screw Terminal
• Voltage Type: AC/DC
• Power Consumption: 0.72 W

Final note

The Eaton SL7-L24-Y is a reliable and efficient choice for expanding or building a signal tower system, offering long-lasting LED performance and easy installation.
