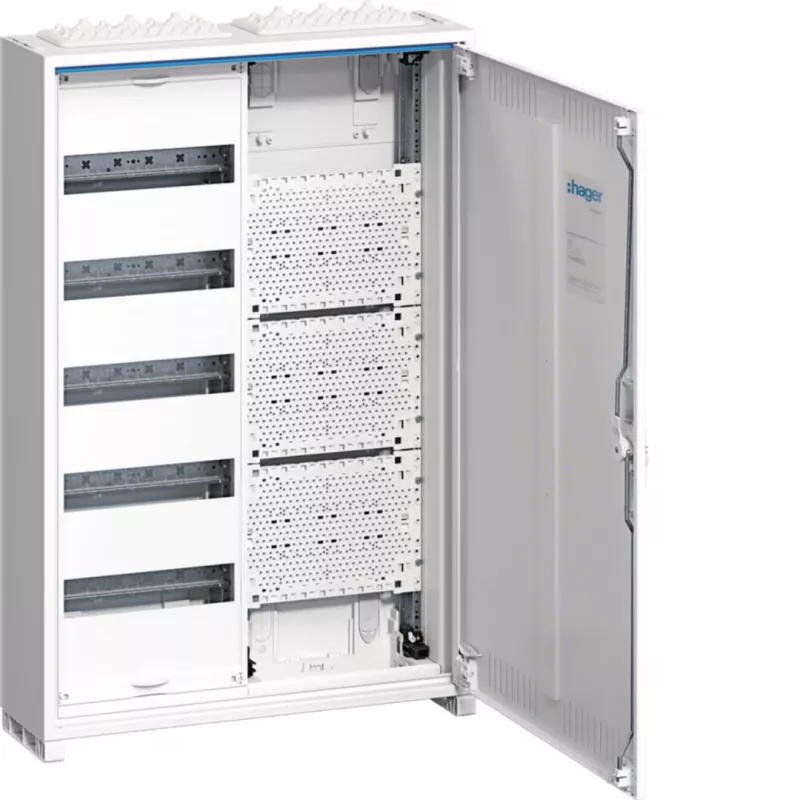

HAGER FWB52K1 Cuadro de distribución de superficie, 60 PLE, 5 filas, IP44, blanco

The HAGER FWB52K1 is a surface-mounted distribution board that stands out for its high module capacity of 60 PLE in a compact enclosure, making it ideal for extensive electrical installations where space is limited. Unlike smaller boards, it offers five rows of 12 modules each, providing ample room for circuit breakers, residual current devices, and other modular devices.

Highlights

• Surface-mounted (Aufputz) design for easy installation on walls
• 60 PLE module capacity across 5 rows (12 modules per row)
• Robust steel sheet enclosure with opaque steel door
• White finish (RAL 9010) for a clean, professional look
• IP44 protection against dust and water splashes
• Rated operational voltage 400 V AC, current up to 250 A
• Integrated PE/N terminal blocks for convenient wiring
• Double-bit lock for secure access

In daily use

The FWB52K1 is designed for power distribution in residential, commercial, and industrial buildings. Its top and bottom flange openings allow flexible cable entry, and the door opens to 120 degrees for easy access during installation and maintenance. The enclosure depth of 160 mm provides sufficient space for wiring, while the IK07 impact resistance ensures durability in demanding environments.

Full specifications

• Mounting type: Surface-mounted
• Module capacity: 60 PLE
• Number of rows: 5 (12 modules per row)
• Enclosure material: Steel sheet
• Door type: Opaque steel door
• Colour: White (RAL 9010)
• Protection class: IP44
• Impact resistance: IK07
• Rated operational voltage: 400 V AC
• Rated current: Up to 250 A
• Electrical protection class: Class I
• Standards compliance: IEC 61439-3, DIN VDE 0603-1
• Cable entry: Top and bottom via flange openings
• Lock type: Double-bit lock
• Enclosure depth: 160 mm
• Integrated PE/N terminal blocks: Yes
• Door opening angle: 120 degrees
• Application: Power distribution in residential, commercial, and industrial buildings

Final note

The HAGER FWB52K1 combines high capacity with robust construction, making it a reliable choice for professional electrical installations.
