Eaton T0-1-15441/I1 conmutador, 20A, 690V, IP65, negro 218968

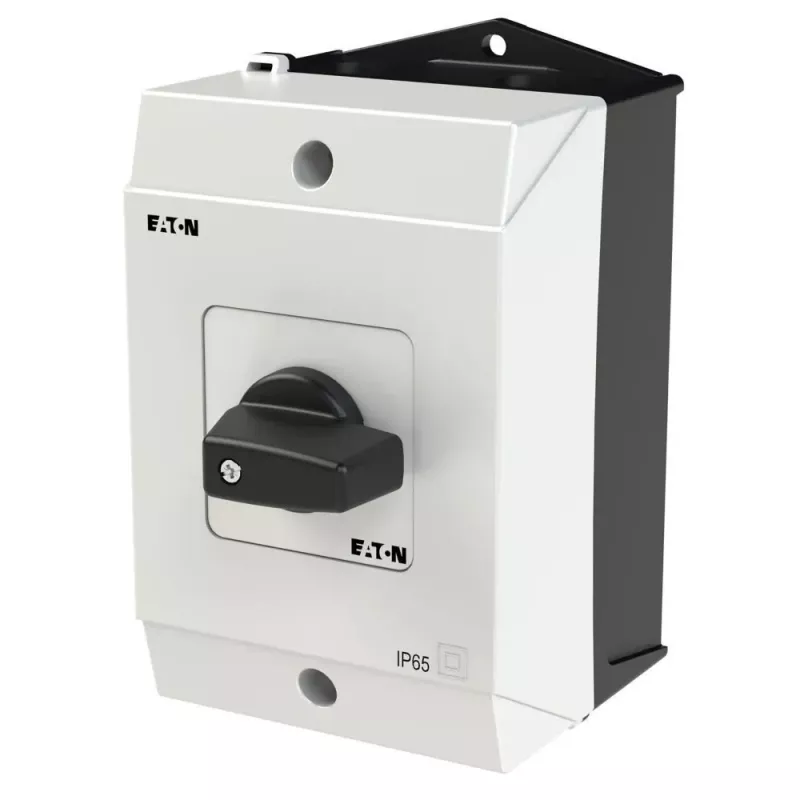

The Eaton T0-1-15441/I1 changeover switch stands out with its robust IP65 front protection and thumb-grip handle, making it a reliable choice for manual circuit changeover in demanding environments. Unlike typical switches, it offers a maintained switching function with a clear 90° throw, ensuring stable position retention.

Highlights

• Rated operational current of 20 A at 500 V AC
• Maximum rated operational voltage of 690 V AC
• Front degree of protection IP65, terminals IP20
• Thumb-grip handle in black with front plate inscription "I1"
• Mechanical life of 0.5 million operations

In daily use

This flush-mounting switch is operated via a thumb-grip handle, providing a secure grip for manual switching. The maintained (latching) function keeps the switch in the selected position until intentionally changed. Screw terminals ensure reliable wiring connections.

Full specifications

• Switch type: Changeover switch
• Number of contact units: 1
• Number of positions: 2
• Switching angle: 90°
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated insulation voltage (Ui): 690 V
• Rated short-circuit withstand current (Icw): 320 A for 1 s
• Operating temperature range: -25°C to +50°C
• Standards: IEC/EN 60947, VDE 0660

Final note

Built for reliability in industrial control applications, the Eaton T0-1-15441/I1 combines durable construction with precise switching performance.
