Eaton xComfort actuador de conmutación por radio, libre de potencial, 16 A, 1 canal, empotrar (240694)

Switching loads up to 16 A with a potential-free contact, this flush-mounted actuator integrates seamlessly into the Eaton xComfort Smart Home system at 868.3 MHz.

Overview

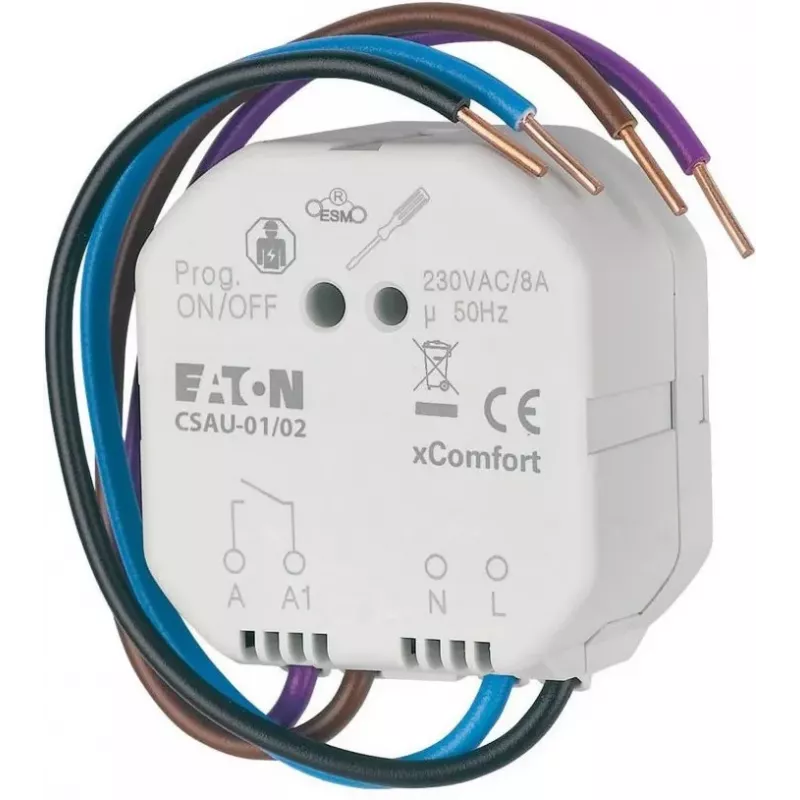

The Eaton xComfort Wireless Switching Actuator 240694 provides a single potential-free relay output for controlling lighting, heating, or other electrical loads. It operates on 230 V AC and communicates wirelessly via the xComfort protocol, allowing flexible placement in standard flush-mounted boxes.

What stands out

• Potential-free contact for versatile load switching
• Wireless control via Eaton xComfort (868.3 MHz)
• Compact flush-mounted design for discreet installation
• Supports scene control and central ON/OFF functions

Technical details

• Max switching current: 16 A
• Max switching power (resistive): 3680 W at 230 V AC
• Supply voltage: 230 V AC, 50/60 Hz
• Standby power consumption: < 0.5 W
• Operating temperature: -5 to +45 °C
• Terminal type: screw terminals, max 2.5 mm²

Our verdict

A reliable wireless actuator for xComfort installations, offering high switching capacity in a compact form factor.
