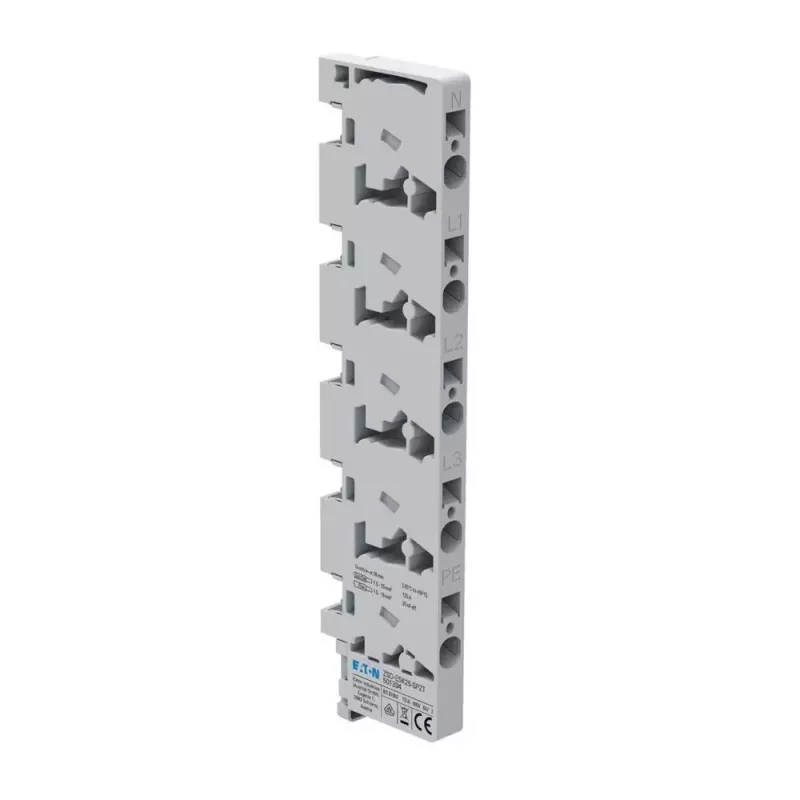

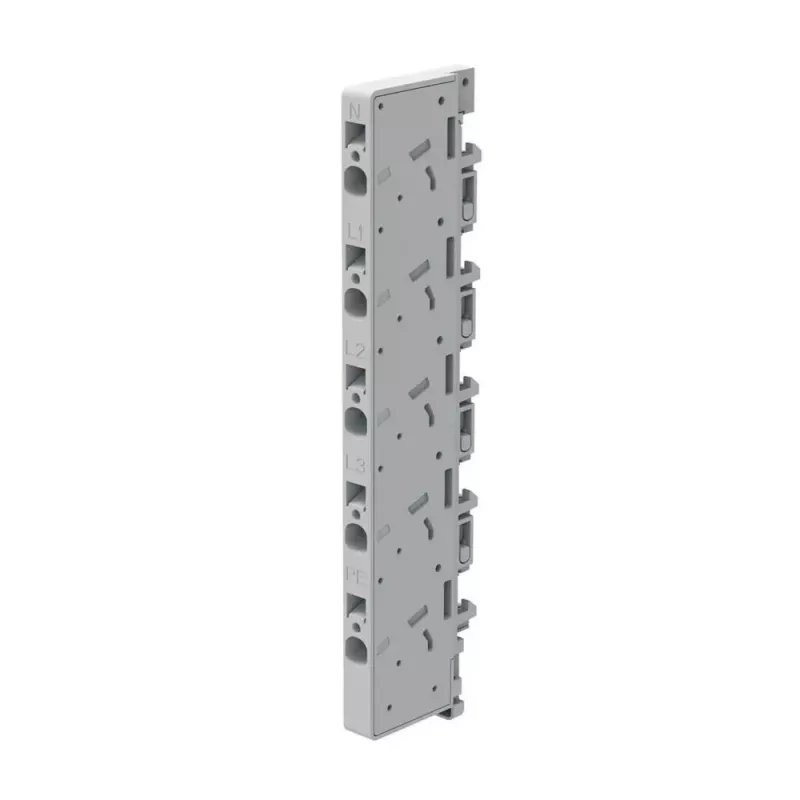

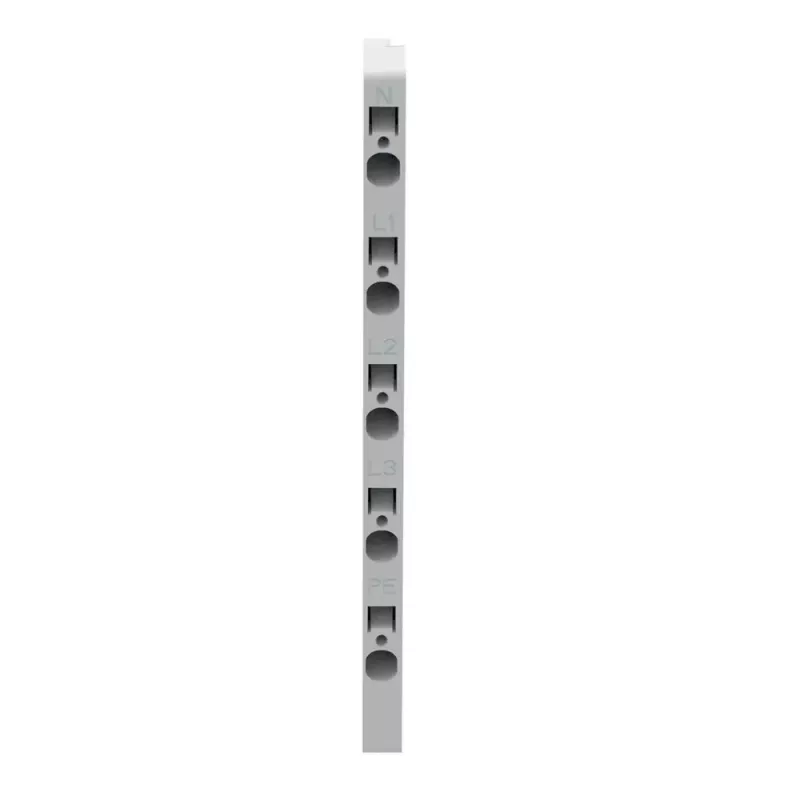

EATON ZSD-ESK25-SPZT Borne de Alimentación para ZSD y Barra Colectora de 40mm, 1 polo (EP-501394)

The EATON ZSD-ESK25-SPZT feed-in terminal (EP-501394) is a high-quality component designed for reliable power distribution in electrical installations. It is specifically engineered for use with Eaton ZSD busbar systems and 40 mm busbars, providing a secure and efficient feed-in solution.

Advantages

This feed-in terminal offers easy clip-on mounting, reducing installation time and effort. The screw connection ensures a robust and durable electrical contact, suitable for demanding industrial environments. Its compact 1-pole design saves space in distribution boards.

Suitable for

• Eaton ZSD busbar systems
• 40 mm busbar applications
• Industrial and commercial power distribution
• Feed-in connections up to 63 A

Key specifications

• Product Type: Feed-in Terminal
• Busbar System Compatibility: Eaton ZSD
• Busbar Width: 40 mm
• Number of Poles: 1-pole
• Max. Conductor Cross-section (Rigid): 25 mm²
• Max. Conductor Cross-section (Flexible): 25 mm²
• Min. Conductor Cross-section: 1.5 mm²
• Rated Operational Current (Ie): 63 A
• Rated Operational Voltage (Ue): 690 V AC
• Connection Type: Screw Terminal
• Mounting Type: Busbar Clip-on
• Degree of Protection: IP20
• Housing Material: Polyamide (PA)
• Color: Grey
• Standards: IEC/EN 61439-1

Recommendations

For optimal performance, ensure compatibility with your specific busbar system and follow the manufacturer's installation guidelines. This terminal is ideal for new installations or retrofitting existing distribution boards.
