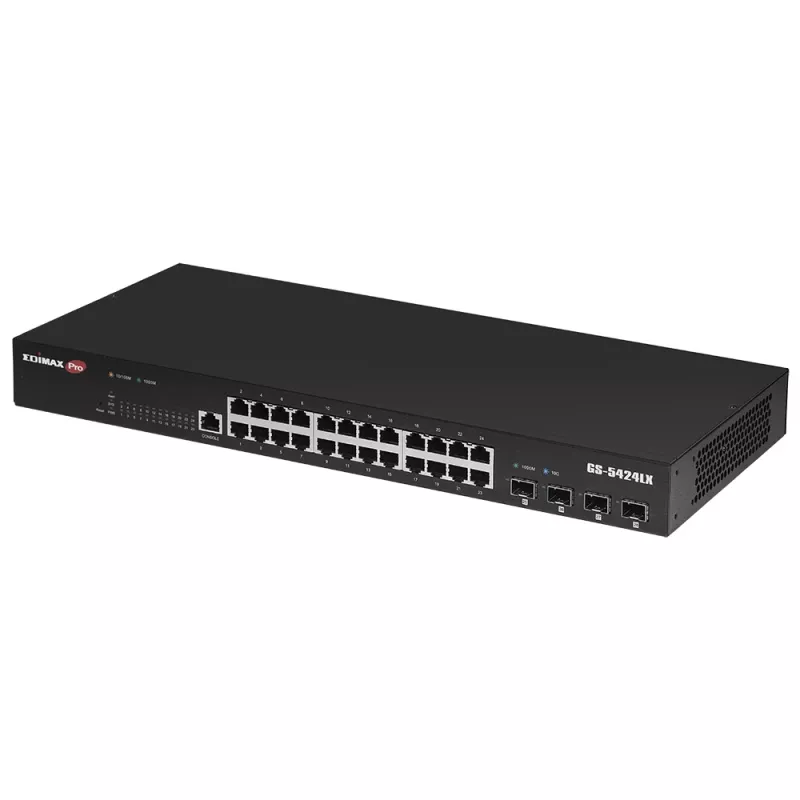

Edimax GS-5424LX switch Gigabit Web Smart de 28 puertos con 4 puertos 10GbE SFP+

The Edimax GS-5424LX is a high-performance 28-port Gigabit Web Smart Switch designed for growing businesses that require reliable and scalable network infrastructure. With 24 Gigabit Ethernet ports and 4 x 10GbE SFP+ uplink ports, this switch delivers exceptional throughput and low latency for bandwidth-intensive applications. It supports PoE+ on all 24 Gigabit ports with a total power budget of 400W, making it ideal for powering IP cameras, wireless access points, and VoIP phones. Advanced Layer 2+ features include VLAN, QoS, and robust security measures such as ACL and port security. The switch is rack-mountable in a 1U form factor and features a smart fan for efficient cooling.

Advantages

This switch offers a cost-effective solution for businesses needing high-speed connectivity and PoE+ capabilities. The 10GbE SFP+ ports provide future-proof uplinks, while the web-based management interface simplifies configuration and monitoring. Energy-efficient design and smart fan reduce operational costs.

Suitable for

• Small to medium-sized businesses
• Enterprise edge networks
• Surveillance systems with PoE cameras
• Wireless LAN deployments
• VoIP phone systems

Key specifications

• 24 x 10/100/1000Base-T PoE+ ports
• 4 x 10GbE SFP+ ports
• Switching capacity: 128 Gbps
• Forwarding rate: 95.2 Mpps
• MAC address table: 16K entries
• Jumbo frame support: up to 10KB
• PoE power budget: 400W
• VLAN support: 802.1Q, port-based, private VLAN, voice VLAN, GVRP
• QoS: 802.1p, DSCP, port-based
• Security: ACL, port security, storm control, DoS defense, RADIUS/TACACS+
• Management: Web GUI, CLI (Telnet/SSH), SNMP v1/v2c/v3
• Rack-mountable 1U

Recommendations

For optimal performance, use Category 6a or higher cabling for 10GbE connections. Ensure adequate ventilation in the rack to maintain operating temperature. The switch is compatible with all standard PoE+ devices.
