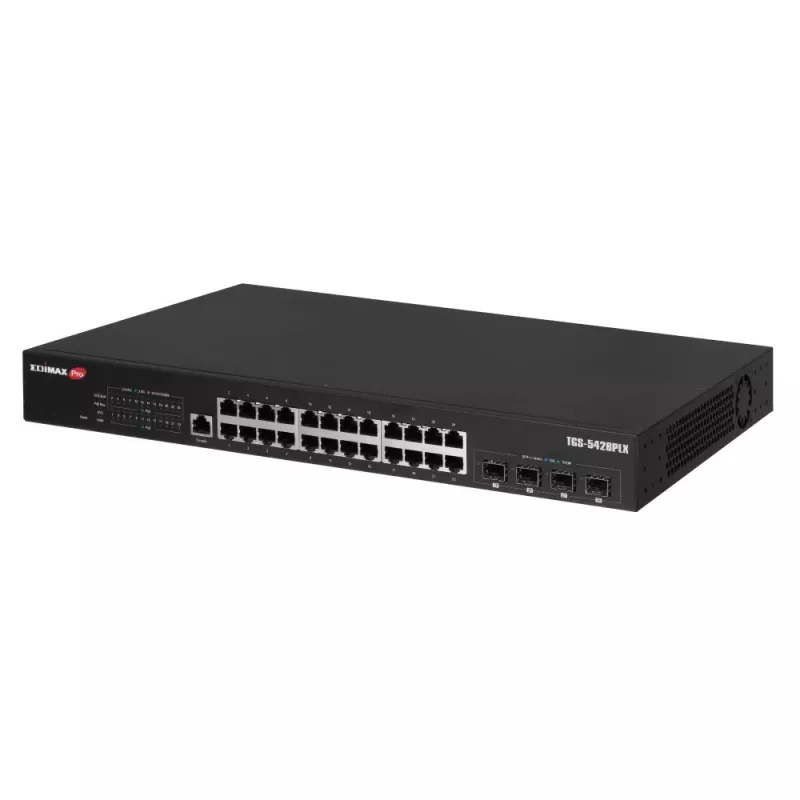

Edimax Pro TGS-5428PLX switch PoE++ gestionado L2+ multi-gigabit de 28 puertos con 24x 2.5GBase-T y 4x uplink 10G SFP+

Modern surveillance and high-density networks demand more than just connectivity—they require intelligent power distribution, multi-gigabit throughput, and robust management. The Edimax Pro TGS-5428PLX answers that call with a 28-port L2+ managed switch engineered for IP cameras, Wi-Fi 6 access points, and bandwidth-hungry endpoints. Its 24 2.5GBASE-T ports deliver up to 2.5 Gbps per port over existing Cat5e cabling, while four 10G SFP+ uplinks eliminate bottlenecks to the core. With a massive 740 W PoE++ budget, it powers a full array of PTZ cameras, LED lighting, or digital signage—no separate injectors needed.

Who is it for

System integrators, IT administrators, and security professionals deploying medium-to-large surveillance or converged networks. It suits businesses needing high-power PoE devices, multi-gigabit edge connectivity, and centralized management without overspending on chassis switches.

Main features

• 24 x 2.5GBASE-T ports for multi-gigabit speed to endpoints
• 4 x 10G SFP+ uplink ports for high-bandwidth aggregation
• IEEE 802.3bt PoE++ with 740 W total power budget
• Layer 2+ features: static routing, VLAN, QoS, and security
• Web GUI, CLI, and SNMP management for easy integration
• Rack-mountable 1U form factor for standard cabinets

Specifications

• Switch type: L2+ Managed Multi-Gigabit PoE++ Switch
• Total ports: 28 (24 x 2.5GBase-T + 4 x 10G SFP+)
• PoE standards: IEEE 802.3af/at/bt (PoE, PoE+, PoE++)
• PoE power budget: 740 W
• Switching capacity: 200 Gbps
• Forwarding rate: 148.8 Mpps
• MAC address table: 16K entries
• Jumbo frame support: 12K bytes
• VLAN support: 802.1Q tag-based, port-based, protocol-based, private, voice, MAC-based
• Management: Web-based GUI, CLI, SNMP v1/v2c/v3
• Security: Port security, DHCP snooping, IP source guard, 802.1X
• QoS: 8 priority queues, WRR/SP/WFQ, CoS/DSCP
• Mounting: Rack-mountable (1U)
• Power input: 100-240V AC, 50/60Hz
• Operating temperature: 0 to 50°C

Tips

Pair with Cat6a cabling for 10G uplinks over longer distances. Use the 2.5G ports for Wi-Fi 6 APs to fully utilize their multi-gigabit capability. Monitor PoE consumption via the web GUI to stay within the 740 W budget.
