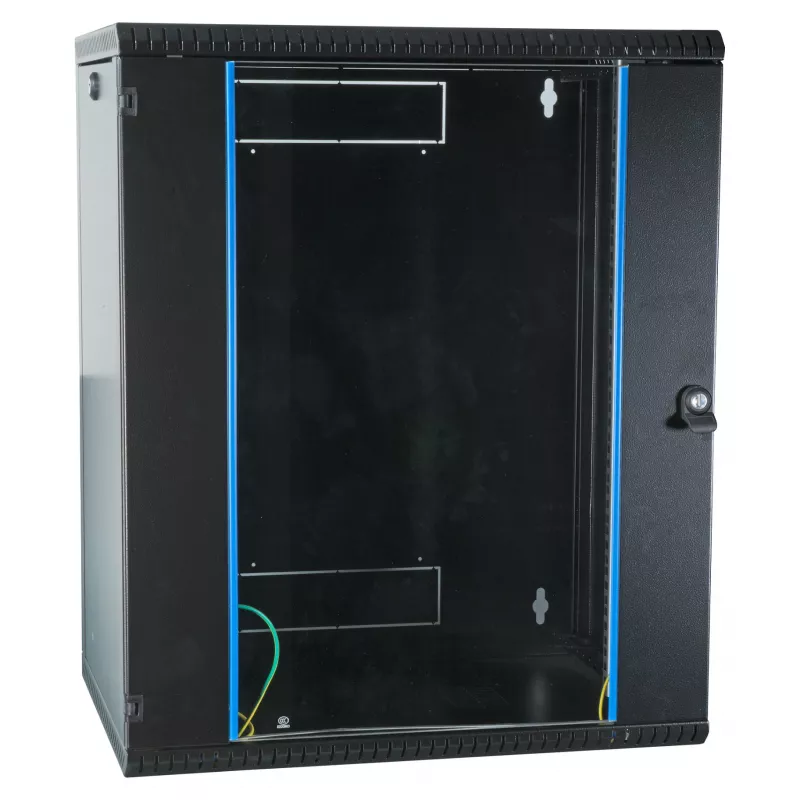

EFB armario de pared de 19 pulgadas 18U, fijo, 1 pieza, RAL 9005, profundidad 600 mm

The EFB 19" Wall Mount Enclosure 18U offers a robust and secure housing solution for your 19-inch rack equipment. Designed for fixed wall mounting, this single-section cabinet provides ample space for up to 18 rack units, making it ideal for network, IT, and telecommunications installations. With a depth of 600 mm, it accommodates a wide range of devices while maintaining a compact footprint.

Advantages

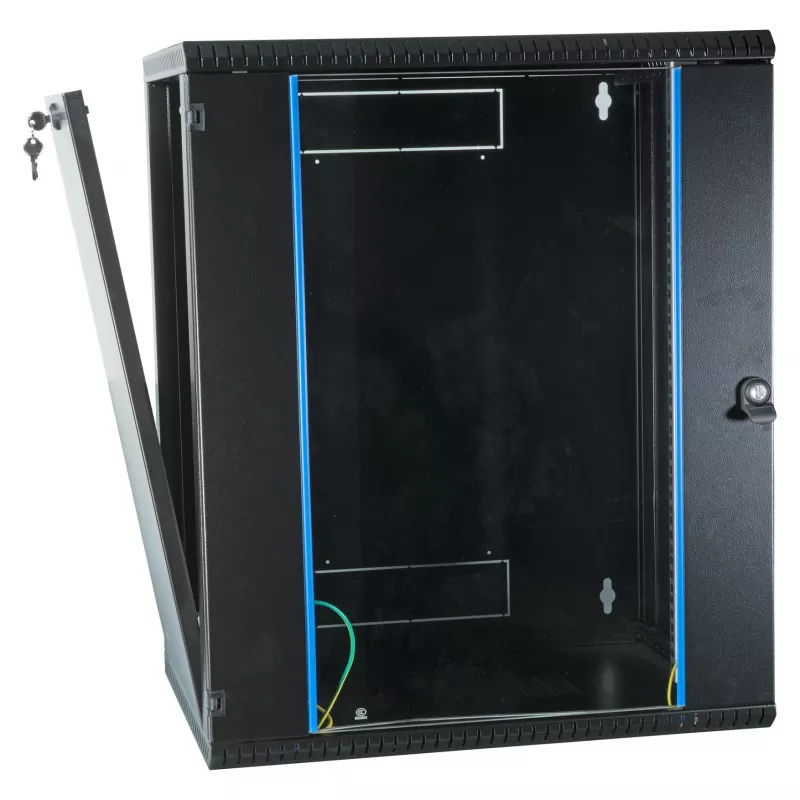

This enclosure features a tempered safety glass door with a lock, ensuring both visibility and security for your equipment. The 180° door opening angle allows easy access for installation and maintenance. Removable side panels simplify cable management and system upgrades. The cabinet is pre-drilled for passive ventilation and prepared for optional fan units, promoting efficient cooling. A grounding kit is included for safe electrical bonding.

Suitable for

• Network switches, patch panels, and routers
• Server and storage devices in small to medium setups
• Audio/video equipment in commercial environments
• Industrial control systems requiring secure wall mounting

Key specifications

• Rack Standard: 19 inch
• Rack Units: 18U
• Cabinet Type: Wall Mount Enclosure
• Construction: 1-part (single section)
• Frame Design: Fixed
• External Width: 600 mm
• External Depth: 600 mm
• External Height: 800 mm
• Material: Steel sheet
• Colour: RAL 9005 (Jet Black)
• Door Type: Tempered safety glass door with lock
• Door Opening Angle: 180°
• Side Panels: Removable
• Cable Entry: Top and bottom with brush strips
• Ventilation: Passive ventilation, prepared for fan unit
• Load Capacity: 60 kg
• Protection Class: IP20
• Mounting Rails: 2 pairs of 19" profile rails, depth-adjustable
• Surface Finish: Powder-coated
• Grounding: Grounding kit included

Recommendations

For optimal cable management, pair this enclosure with EFB cable management panels and patch panels. Ensure adequate ventilation by installing optional fan units if deploying high-density equipment.
